7 models · Linear Light

LED Linear Strip Light

LED Linear Strip Light in seven models, 4-150 W and up to 22,500 lm, for stockrooms, corridors, utility spaces and back-of-house.

Request a quoteDownload spec sheet · PDF

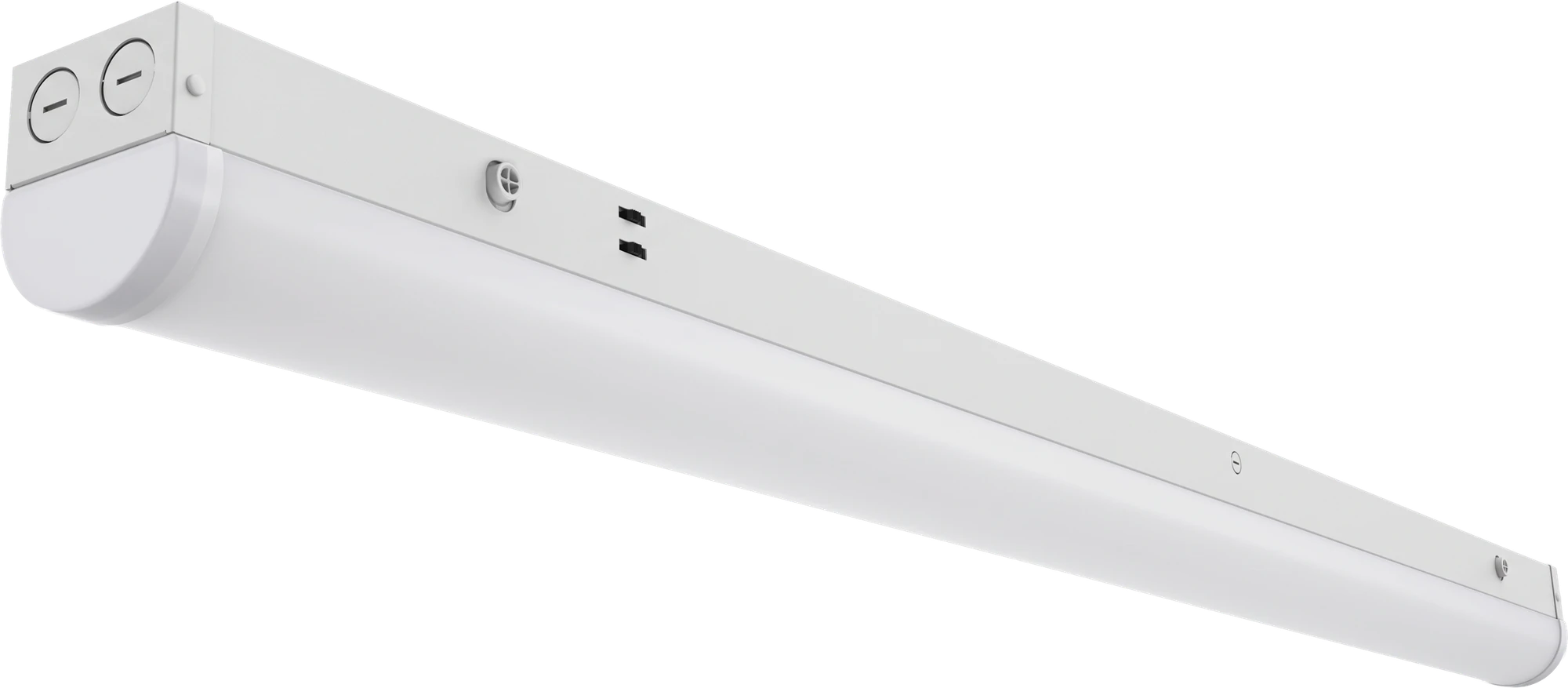

Linear strip SP05 4 ft, three-quarter underside view

7

Models

4-150 W

Power

22,500 lm

Light output, up to

150 lm/W

Efficacy, up to

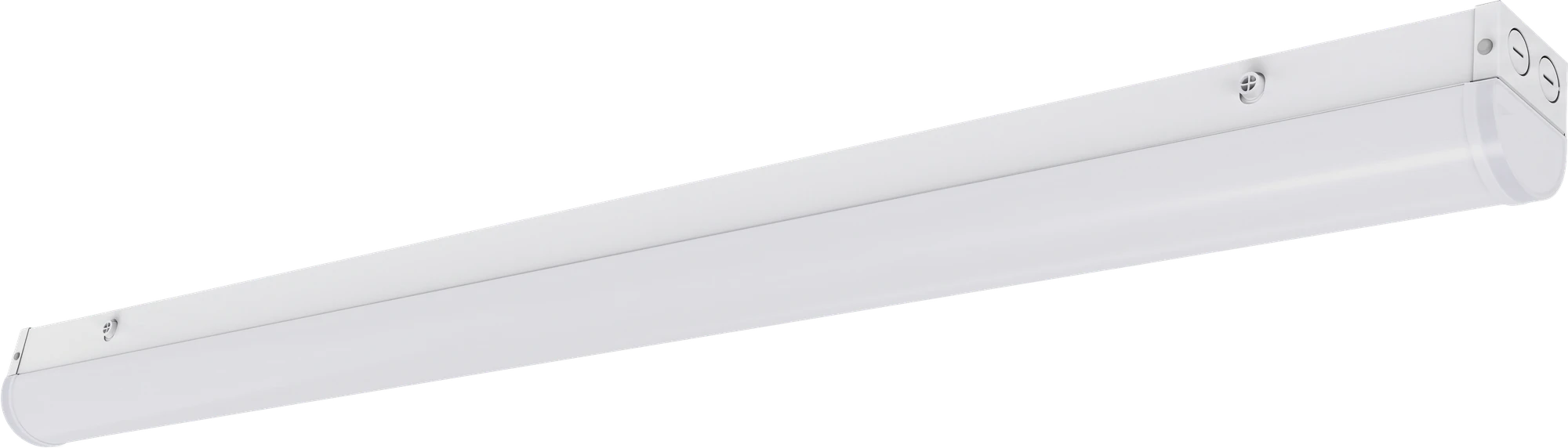

Product views

Specification, features and options

Power factor
> 0.9
Life span
> 50,000 hrs
Operating temperature
-40°F to 113°F
Storage temperature
-40°F to 176°F

Models and ratings

Maximum lumens

SP05-2FT20W-H-TCP

Lumens (max)
3,000 lm

Settable 20 / 16 / 12 / 8 / 4 W

Efficacy
150 lm/W
Dimensions
23.99 × 3.2 in

Depth 2.91 in

SP05-4FT50W-H-TCP

Lumens (max)
7,500 lm

Settable 50 / 35 / 30 / 25 / 20 W

Efficacy
150 lm/W
Dimensions
46.66 × 3.2 in

Depth 2.91 in

SP05-4FT80W-H-TCP

Lumens (max)
12,000 lm

Settable 80 / 70 / 60 / 50 / 40 W

Efficacy
150 lm/W
Dimensions
46.66 × 3.2 in

Depth 2.91 in

SP05-8FT100W-H-TCP

Lumens (max)
15,000 lm

Settable 100 / 90 / 80 / 60 / 40 W

Efficacy
150 lm/W
Dimensions
95.98 × 3.2 in

Depth 2.91 in

SP05-8FT150W-H-TCP

Lumens (max)
22,500 lm

Settable 150 / 120 / 100 / 80 / 60 W

Efficacy
150 lm/W
Dimensions
95.98 × 3.2 in

Depth 2.91 in

SP05-2FT25W-H-TCP

Lumens (max)
3,000 lm

Settable 25 / 20 / 15 W

Efficacy
150 lm/W

SP05-4FT60W-H-TCP

Lumens (max)
10,200 lm

Settable 60 / 50 / 40 / 30 / 25 W

Efficacy
150 lm/W
Dimensions
46.66 × 3.2 in

Depth 2.91 in

Every model
CRI Ra > 80Input voltage AC 120–277 V / AC 120–347 V / AC 277–480 VEfficacy 150 lm/W
ModelWattage (selectable)Lumens (max)CCT (selectable)Dimensions
SP05-2FT20W-H-TCP20 / 16 / 12 / 8 / 4 W3,000 lm3500 / 4000 / 5000 / 5700 / 6500K23.99 × 3.2 × 2.91 in
SP05-4FT50W-H-TCP50 / 35 / 30 / 25 / 20 W7,500 lm3500 / 4000 / 5000 / 5700 / 6500K46.66 × 3.2 × 2.91 in
SP05-4FT80W-H-TCP80 / 70 / 60 / 50 / 40 W12,000 lm3500 / 4000 / 5000 / 5700 / 6500K46.66 × 3.2 × 2.91 in
SP05-8FT100W-H-TCP100 / 90 / 80 / 60 / 40 W15,000 lm3500 / 4000 / 5000 / 5700 / 6500K95.98 × 3.2 × 2.91 in
SP05-8FT150W-H-TCP150 / 120 / 100 / 80 / 60 W22,500 lm3500 / 4000 / 5000 / 5700 / 6500K95.98 × 3.2 × 2.91 in
SP05-2FT25W-H-TCP25 / 20 / 15 W3,000 lm3500 / 4000 / 5000 K
SP05-4FT60W-H-TCP60 / 50 / 40 / 30 / 25 W10,200 lm3500 / 4000 / 5000 / 5700 / 6500 K46.66 × 3.2 × 2.91 in

Catalogue: SP05-2FT20W-H-TCP is 3,000 lm. Published sheet: 3,750 lm. The sheet calls its 25 W model 2FT in the model table but 3 FT in the drawing; its dimensions are left blank.

Dimensions and mounting

Dimensions as printed in the Allmax spec sheet.

Dimensioned 2 ft · 20 W,
2 ft · 20 W
Dimensioned 3 ft · 25 W,
3 ft · 25 W
Dimensioned 4 ft · 50 / 60 / 80 W,
4 ft · 50 / 60 / 80 W
Dimensioned 8 ft · 100 / 150 W,
8 ft · 100 / 150 W

Mounting

Surface · standard

Clipped to the ceiling or wall. Fixing centres: 2 ft 12.13 in · 4 ft 34.80 in · 8 ft 35.35 in and 84.13 in.

Suspended · option

Wire rope, adjustable length. Hanging centres: 2 ft 18.52 in · 4 ft 41.19 in · 8 ft 35.59 in and 90.50 in.

Options and accessories

Linear strip SP05, surface-mount clips

Surface-mount clips

Standard

Fits
All lengths

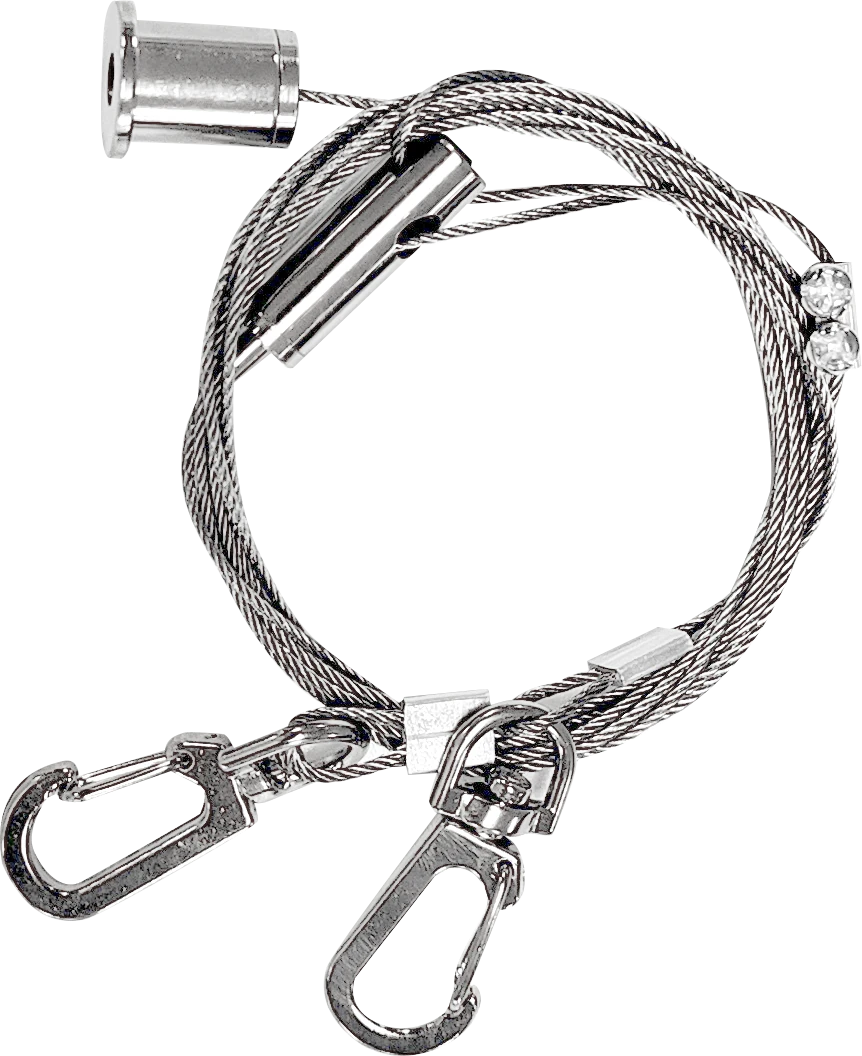

Linear strip SP05, suspension wire rope

Suspension wire rope

Sold separately

Fits
All lengths

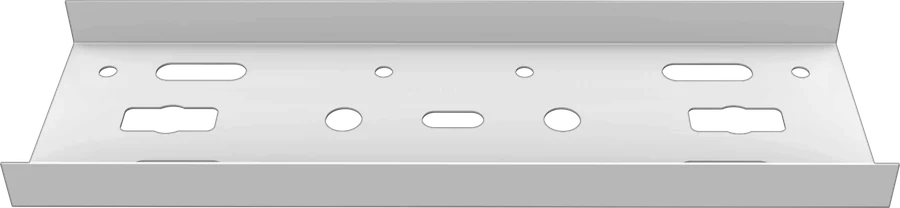

Linear strip SP05, connector

Connector

Sold separately

Fits
All lengths

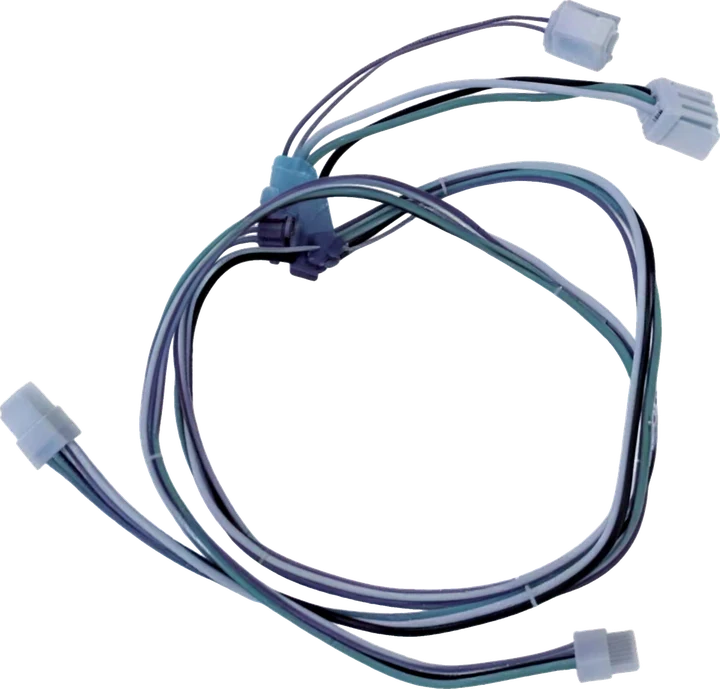

Linkable wire harness

Linkable wire harness

Up to 12 × 4 ft or 6 × 8 ft fixtures per run

Fits
4 ft · 8 ft

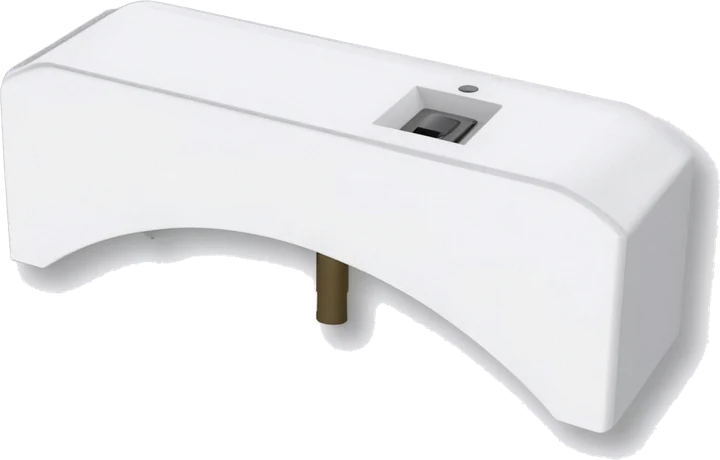

External sensor

External sensor

Plugs into the sensor base

Fits
All lengths
Order code
A · B · C · D
Built-in sensor

Built-in sensor

Sold separately

Fits
All lengths
Emergency battery

Emergency battery

Sold separately

Fits
All lengths

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1ProductSP05Strip light
2Size2FT · 3FT · 4FT · 8FTSize options printed in the published sheet
3Power25W · 20W · 50W · 80W · 100W · 150W · 60WUse the model table for the orderable model and wattage settings
4High lumensHHigh lumens
5Input voltagexxBlank = 120–277 Vac
6CCTTCPTunable CCT and power; see each model row
7ControlYA PIR sensor · B MS sensor · C BRT sensor · D PHB sensor · blank = no sensor
  1. The published sheet includes a 40 W ordering example but omits that model from its model table. Confirm the orderable code with the quotation.

Documents and downloads

ModelSpec sheet
All 7 modelsSpec sheetPDF · 2.0 MB

One spec sheet covers SP05-2FT20W-H-TCP, SP05-4FT50W-H-TCP, SP05-4FT80W-H-TCP, SP05-8FT100W-H-TCP, SP05-8FT150W-H-TCP, SP05-2FT25W-H-TCP, SP05-4FT60W-H-TCP. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Drawing · 2 FT · 20 W3 rows
Drawing calloutPublished spec sheet
2 FT · 20 W23.99 in [609.4 mm]
2 FT · 20 W2.91 in [74 mm]
2 FT · 20 W3.2 in [81.3 mm]
Drawing · 4 FT · 50 / 60 / 80 W3 rows
Drawing calloutPublished spec sheet
4 FT · 50 / 60 / 80 W3.2 in [81.3 mm]
4 FT · 50 / 60 / 80 W46.66 in [1185.2 mm]
4 FT · 50 / 60 / 80 W2.91 in [74 mm]
Drawing · 8 FT · 100 / 150 W3 rows
Drawing calloutPublished spec sheet
8 FT · 100 / 150 W3.2 in [81.3 mm]
8 FT · 100 / 150 W95.98 in [2438 mm]
8 FT · 100 / 150 W2.91 in [74 mm]
Packing by size · published spec sheet4 rows
SizeOuter packing sizeNet weight / ctnGross weight / ctnQty / carton
2 ftL24.72 × W9.6 × H10.79 in [L628 × W244 × H274 mm]17.00 lb [7.71 kg]20.92 lb [9.49 kg]9 pcs/ctn
3 ftL37.4 × W9.69 × H11.02 in [L950 × W246 × H280 mm]24.47 lb [11.1 kg]28.44 lb [12.9 kg]9 pcs/ctn
4 ftL47.56 × W9.33 × H10.79 in [L1208 × W237 × H274 mm]27.34 lb [12.4 kg]31.97 lb [14.5 kg]9 pcs/ctn
8 ftL96.46 × W6.34 × H6.93 in [L2450 × W161 × H176 mm]23.17 lb [10.51 kg]26.68 lb [12.1 kg]6 pcs/ctn
Published spec sheet · specification4 rows
PropertyPublished spec sheet
Power factor> 0.90
Driver efficacy> 90%
Linkableup to 12 fixtures of SP05-4FT or up to 6 fixtures of SP05-8FT.
SP05-2FT20W-H-TCP · lumens (max)3750 lm
Photometrics · 2FT · 20 W · 5000 K · measurements6 rows
MeasurementPublished spec sheet
C0/180 (deg)130.2
C90/270 (deg)97.9
Average beam angle (50%)114.0 DEG
Cone angle98.82deg
Mounting height33'(10.0m)
Contour legend · MH=1m600 · 530 · 450 · 380 · 300 · 230 · 75.0 · 38.0 · 23.0 · 7.50
Photometrics · 2FT · 20 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.2253 lx0.02093fc
5%0.3754 lx0.03488fc
10%0.7509 lx0.06976fc
30%2.253 lx0.2093fc
50%3.754 lx0.3488fc
Photometrics · 4FT · 40 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)139.5
C90/270 (deg)100.4
Average beam angle (50%)119.9 DEG
Cone angle99.96deg
Flux out2637 lm
Mounting height33'(10.0m)
Contour legend · MH=1m1200 · 1000 · 880 · 740 · 590 · 440 · 150 · 74.0 · 44.0 · 15.0
Photometrics · 4FT · 40 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1m591.1,1493 lx238.20 cm
2m147.8,373.3 lx476.40 cm
3m65.68,165.9 lx714.60 cm
4m36.94,93.32 lx952.80 cm
5m23.64,59.72 lx1191.00 cm
6m16.42,41.48 lx1429.20 cm
7m12.06,30.47 lx1667.40 cm
8m9.236,23.33 lx1905.60 cm
9m7.298,18.43 lx2143.80 cm
10m5.911,14.93 lx2382.00 cm
Photometrics · 4FT · 40 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.4478 lx0.0416fc
5%0.7463 lx0.06933fc
10%1.493 lx0.1387fc
30%4.478 lx0.416fc
50%7.463 lx0.6933fc
Photometrics · 4FT · 50 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)138.4
C90/270 (deg)102.6
Average beam angle (50%)120.5 DEG
Cone angle103.22deg
Flux out3203 lm
Mounting height33'(10.0m)
Contour legend · MH=1m1400 · 1200 · 1000 · 840 · 680 · 510 · 170 · 84.0 · 51.0 · 17.0
Photometrics · 4FT · 50 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1m622.4,1691 lx252.44 cm
2m155.6,422.7 lx504.88 cm
3m69.15,187.8 lx757.32 cm
4m38.90,105.7 lx1009.77 cm
5m24.90,67.63 lx1262.21 cm
6m17.29,46.96 lx1514.65 cm
7m12.70,34.50 lx1767.09 cm
8m9.725,26.42 lx2019.53 cm
9m7.684,20.87 lx2271.97 cm
10m6.224,16.91 lx2524.42 cm
Photometrics · 4FT · 50 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.5030 lx0.04673fc
5%0.8383 lx0.07788fc
10%1.677 lx0.1558fc
30%5.030 lx0.4673fc
50%8.383 lx0.7788fc
