LED Linear High Bay Light 300 W

MLH06 300 W is an LED linear high bay with four switch settings (300/240/180/120 W), up to 48,900 lm, 4000 or 5000K. Input is AC 120–277 V or 347–480 V, with prismatic, aisle or narrow optics and 0–10 V dimming. Plug-in PIR sensors, an emergency battery, wire guard and pendant hanger are accessories.

Request a quoteDownload spec sheet · MLH06-300W · PDF

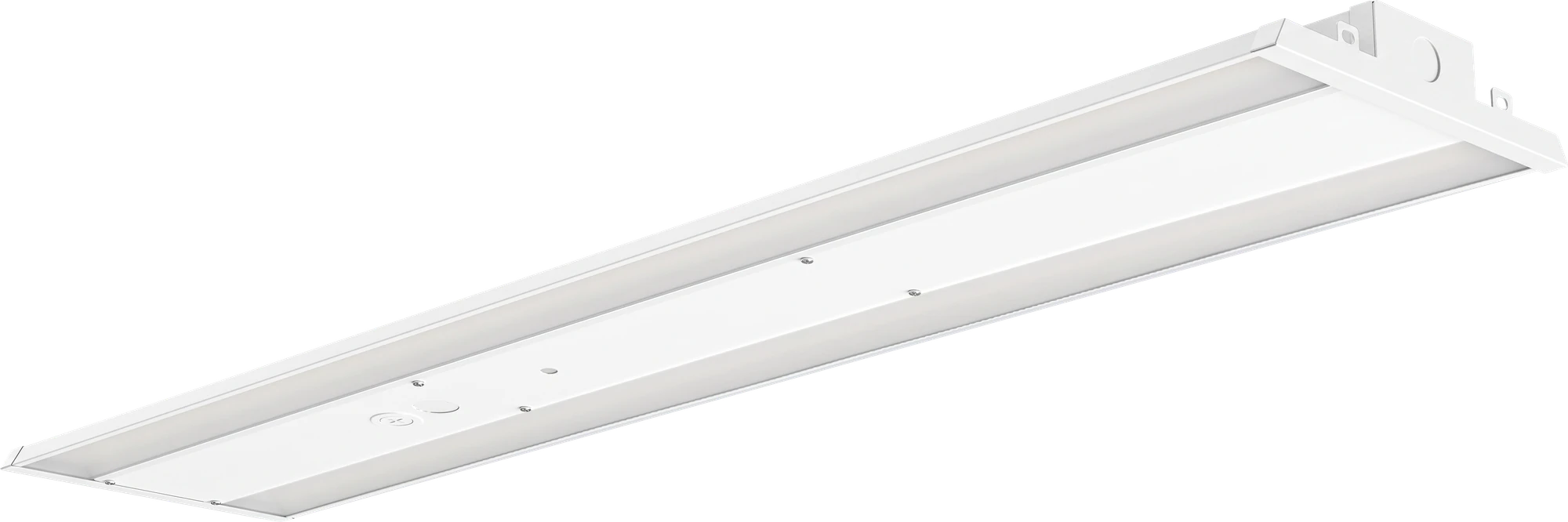

LED Linear High Bay Light 300 W — MLH06-300W

1

Model

120-300 W

Power

48,900 lm

Light output, up to

178 lm/W

Efficacy, up to

Specification, features and options

Setting
100% / 80% / 60% / 40%
Optics
Prismatic / aisle / narrow optics
THD
< 20%
Dimming
0–10 V
Life span
50,000 hrs
BUG rating
B3 U2 G2
Operating temperature
-40°C to 50°C (-40°F to 122°F)

Models and ratings

Model
MLH06-300W
Wattage (selectable)
300 / 240 / 180 / 120 W
Lumens (4000K)
48,900 / 40,400 / 31,200 / 21,400 lm
Lumens (5000K)
48,000 / 39,600 / 30,600 / 21,000 lm
CCT
4000 / 5000 K selectable
CRI
> 70
Input voltage
AC 120–277 V or 347–480 V
Dimensions
L 35.43 × W 9.84 × H 1.75 in
Efficacy (4000K)
163 / 168 / 173 / 178 lm/W
Efficacy (5000K)
160 / 165 / 170 / 175 lm/W

The catalogue states CRI > 70; the published MLH06 sheet states CRI 70. The model table follows the catalogue.

Output data, every setting

Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.

MLH06 300 W

SettingSystem watts4000 K5000 K
100%300 W48,900 lm163 lm/W48,000 lm160 lm/W
80%240 W40,400 lm168 lm/W39,600 lm165 lm/W
60%180 W31,200 lm173 lm/W30,600 lm170 lm/W
40%120 W21,400 lm178 lm/W21,000 lm175 lm/W

Electrical data

Drivers and input currentPublished spec sheet · input current in amps

Nominal PowerDriver CurrentDrivers120 V208 V240 V277 V347 V480 V
300 W1200 mA12.50 A1.44 A1.25 A1.08 A0.86 A0.63 A

Options and accessories

Emergency battery, 15 W

Emergency battery, 15 W

2000 lm, 90 minutes

Fits
300 W
Order code
B
Plug-in PIR sensor

Plug-in PIR sensor

Plug-in

Fits
300 W
Order code
M
Part no.
MSANT12VPH01
Bluetooth PIR sensor

Bluetooth PIR sensor

Bluetooth version

Fits
300 W
Order code
M
Part no.
MSANT12VPHS01
Bluetooth PIR sensor

Bluetooth PIR sensor

Bluetooth version

Fits
300 W
Order code
M
Part no.
MSANT12VPHG01
Steel wire rope

Steel wire rope

For chain mounting · sold separately

Fits
300 W
Pendant hanger

Pendant hanger

For 3/4 in conduit · sold separately

Fits
300 W
Wire guard

Wire guard

Sold separately

Fits
300 W

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1SeriesMLH06Linear high bay series
2Wattage130W · 165W · 210W · 300W130 – 300 watts
3Voltage27V · 48V120–277 V · 347–480 V
4CCTDDK · 40K · 50Kselectable · 4000 K · 5000 K
5LensPD · AL · NDprismatic diffuser · aisle optic · narrow lens
6SensorMPIR sensor · blank = without sensor
7Backup batteryBemergency battery · blank = without
8Surge protectorSwith surge protector · blank = without
9Internal codeblankalphanumeric

Documents and downloads

ModelSpec sheet
MLH06-300WSpec sheetPDF · 1.3 MB

IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Dimensions and weight · published spec sheet1 row
ModelDrawing calloutsWeight
300 W35.43 in [900.00 mm] · 9.84 in [250.00 mm] · 1.75 in [44.40 mm]8.97 lb
Published spec sheet · specification8 rows
PropertyPublished spec sheet
CRI70
Power factor> 0.9
Surge protection6 kV
Dimming0–10 V driver, 10%–100%.
Operating temperature with emergency battery0 °C to 50 °C [32 °F to 122 °F]
PIR sensor settings100% sensitivity, hold 5 min, daylight threshold disabled, standby dimming 30%, dimming time 30 minutes.
Test ambient25 °C (±5 °C)
Mounting restrictionPendant and surface mounting is not supported with an emergency battery.
