3 models · Linear Light

LED Linear High Bay Light 130–210 W

MLH06 is an LED linear high bay in 130, 165 and 210 W, each with four switch settings (100/80/60/40%), up to 34,300 lm, 4000 or 5000K. Input is AC 120–277 V or 347–480 V, with prismatic, aisle or narrow optics and 0–10 V dimming. Plug-in PIR sensors, emergency batteries, wire guard and pendant hanger are accessories.

Request a quoteDownload spec sheet · PDF

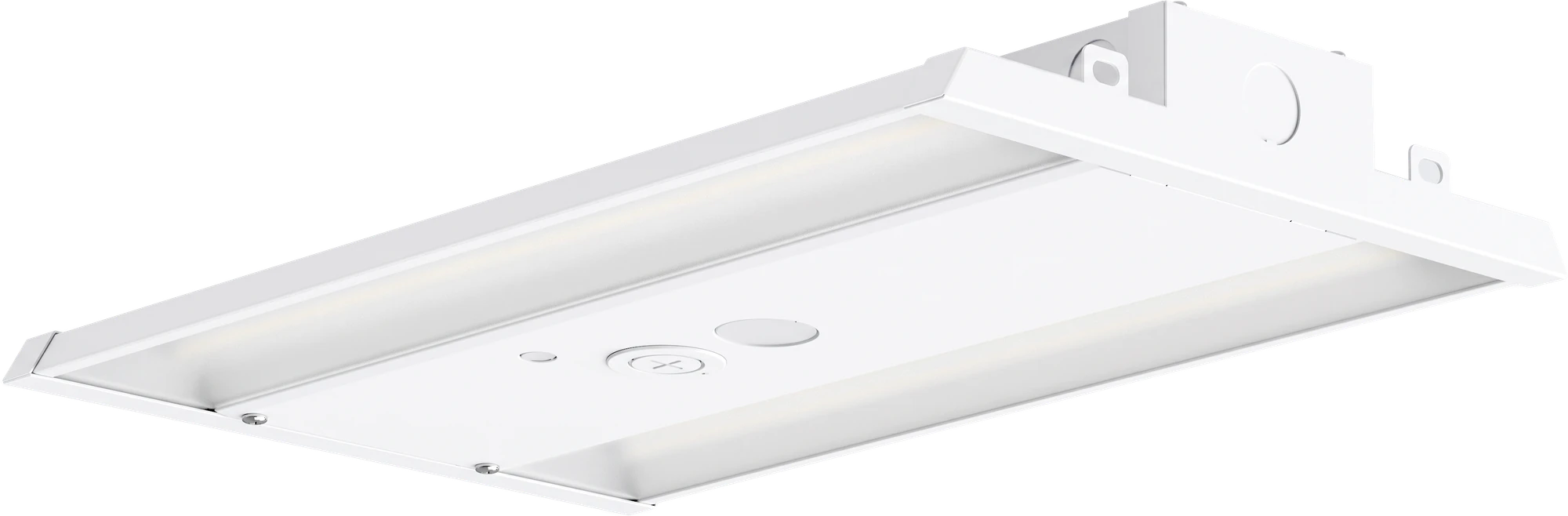

LED Linear High Bay Light 130–210 W — MLH06-130W

3

Models

52-210 W

Power

34,300 lm

Light output, up to

178 lm/W

Efficacy, up to

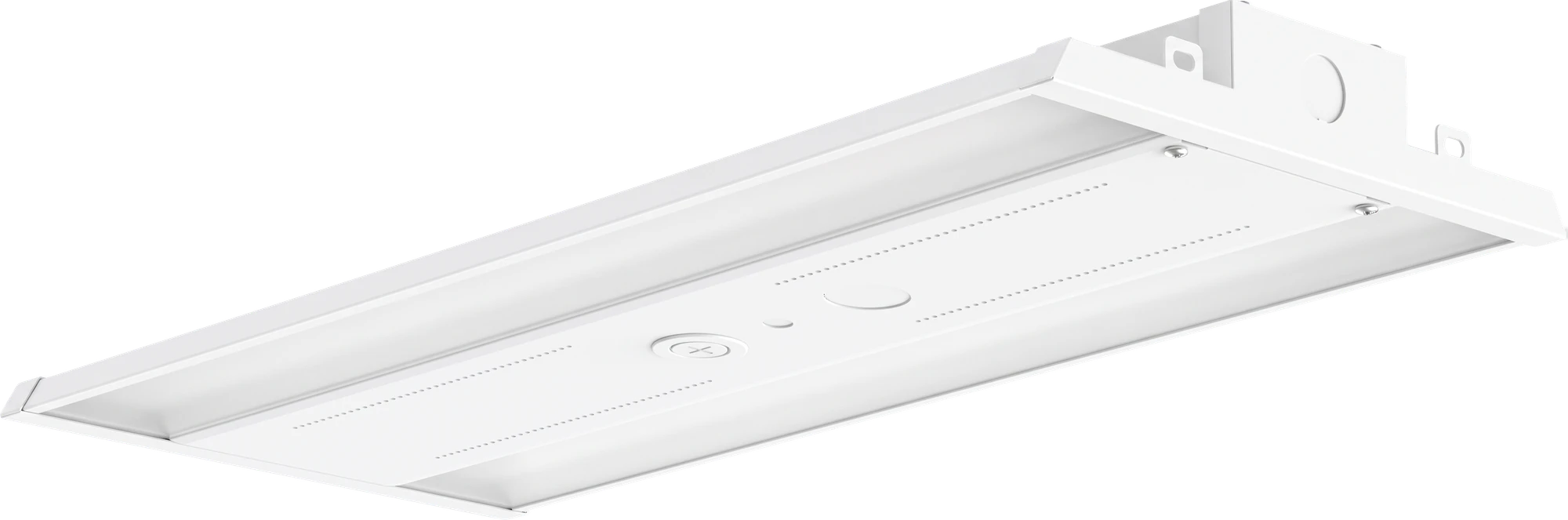

Product views

Specification, features and options

Setting
100% / 80% / 60% / 40%
Optics
Prismatic / aisle / narrow optics
THD
< 20%
Dimming
0–10 V
Life span
50,000 hrs
Operating temperature
-40°C to 50°C (-40°F to 122°F)

Models and ratings

Maximum lumens

MLH06-130W

Lumens (4000K)
21,200 / 17,500 / 13,500 / 9,300 lm

Settable 130 / 104 / 78 / 52 W

Efficacy (4000K)
163 / 168 / 173 / 178 lm/W
Dimensions
L 16.54 × W 9.84 × H 1.75 in
BUG rating
B3 U3 G1

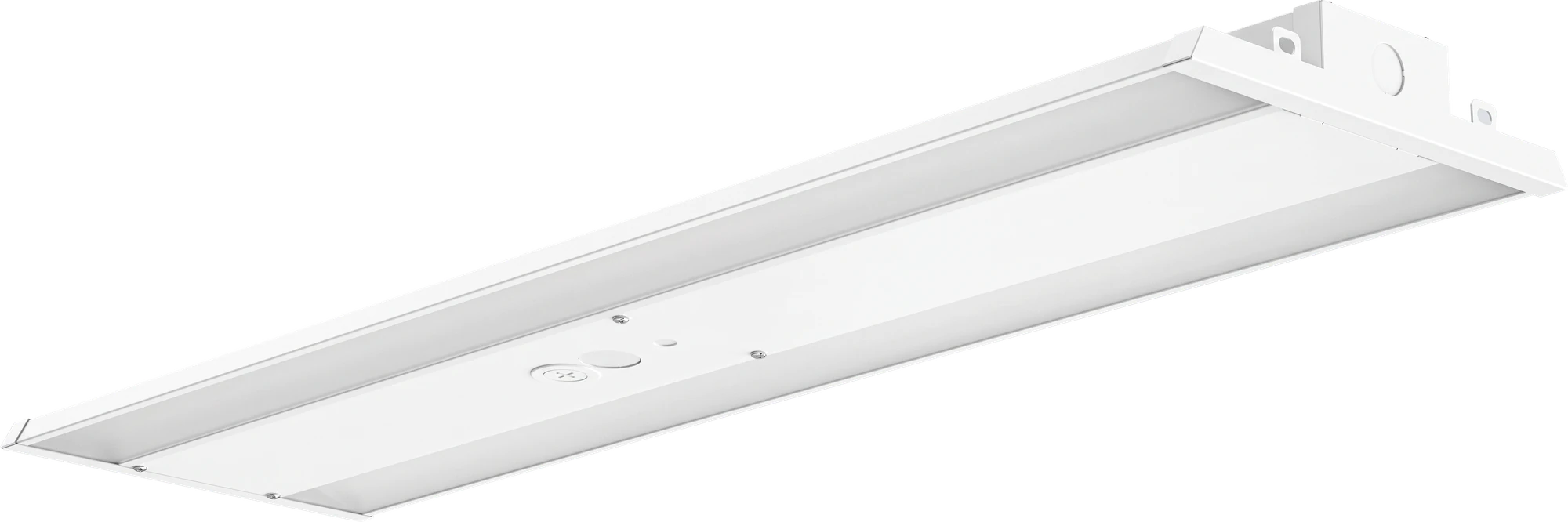

MLH06-165W

Lumens (4000K)
27,000 / 22,200 / 17,200 / 11,800 lm

Settable 165 / 132 / 99 / 66 W

Efficacy (4000K)
163 / 168 / 173 / 178 lm/W
Dimensions
L 23.62 × W 9.84 × H 1.75 in
BUG rating
B3 U2 G2

MLH06-210W

Lumens (4000K)
34,300 / 30,300 / 22,500 / 17,800 lm

Settable 210 / 180 / 130 / 100 W

Efficacy (4000K)
163 / 168 / 173 / 178 lm/W
Dimensions
L 23.62 × W 9.84 × H 1.75 in
BUG rating
B4 U1 G2
Every model
CCT 4000 / 5000 K selectableCRI > 70Input voltage AC 120–277 V or 347–480 VEfficacy (4000K) 163 / 168 / 173 / 178 lm/WEfficacy (5000K) 160 / 165 / 170 / 175 lm/W
ModelWattage (selectable)Lumens (4000K)Lumens (5000K)DimensionsBUG rating
MLH06-130W130 / 104 / 78 / 52 W21,200 / 17,500 / 13,500 / 9,300 lm20,800 / 17,200 / 13,300 / 9,100 lmL 16.54 × W 9.84 × H 1.75 inB3 U3 G1
MLH06-165W165 / 132 / 99 / 66 W27,000 / 22,200 / 17,200 / 11,800 lm26,400 / 21,800 / 16,900 / 11,600 lmL 23.62 × W 9.84 × H 1.75 inB3 U2 G2
MLH06-210W210 / 180 / 130 / 100 W34,300 / 30,300 / 22,500 / 17,800 lm33,600 / 30,000 / 22,100 / 17,500 lmL 23.62 × W 9.84 × H 1.75 inB4 U1 G2

The catalogue states CRI > 70; the published MLH06 sheet states CRI 70. The model table follows the catalogue.

Output data, every setting

Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.

MLH06 130 W

SettingSystem watts4000 K5000 K
100%130 W21,200 lm163 lm/W20,800 lm160 lm/W
80%104 W17,500 lm168 lm/W17,200 lm165 lm/W
60%78 W13,500 lm173 lm/W13,300 lm170 lm/W
40%52 W9,300 lm178 lm/W9,100 lm175 lm/W

MLH06 165 W

SettingSystem watts4000 K5000 K
100%165 W27,000 lm163 lm/W26,400 lm160 lm/W
80%132 W22,200 lm168 lm/W21,800 lm165 lm/W
60%99 W17,200 lm173 lm/W16,900 lm170 lm/W
40%66 W11,800 lm178 lm/W11,600 lm175 lm/W

MLH06 210 W

SettingSystem watts4000 K5000 K
100%210 W34,300 lm163 lm/W33,600 lm160 lm/W
80%180 W30,300 lm168 lm/W30,000 lm165 lm/W
60%130 W22,500 lm173 lm/W22,100 lm170 lm/W
40%100 W17,800 lm178 lm/W17,500 lm175 lm/W

Electrical data

Drivers and input currentPublished spec sheet · input current in amps

Nominal PowerDriver CurrentDrivers120 V208 V240 V277 V347 V480 V
130 W600 mA11.08 A0.63 A0.54 A0.47 A0.37 A0.27 A
165 W740 mA11.38 A0.79 A0.69 A0.60 A0.48 A0.34 A
210 W1000 mA11.75 A1.01 A0.88 A0.76 A0.61 A0.44 A

Options and accessories

Emergency battery, 8 W

Emergency battery, 8 W

900 lm, 90 minutes

Fits
130 W
Order code
B
Emergency battery, 15 W

Emergency battery, 15 W

2000 lm, 90 minutes

Fits
165 · 210 W
Order code
B
Emergency battery, 30 W

Emergency battery, 30 W

4000 lm, 90 minutes

Fits
130 · 165 · 210 W, 347–480 V version
Order code
B
Plug-in PIR sensor

Plug-in PIR sensor

Plug-in

Fits
130 · 165 · 210 W
Order code
M
Part no.
MSANT12VPH01
Bluetooth PIR sensor

Bluetooth PIR sensor

Bluetooth version

Fits
130 · 165 · 210 W
Order code
M
Part no.
MSANT12VPHS01
Bluetooth PIR sensor

Bluetooth PIR sensor

Bluetooth version

Fits
130 · 165 · 210 W
Order code
M
Part no.
MSANT12VPHG01
Steel wire rope

Steel wire rope

For chain mounting · sold separately

Fits
130 · 165 · 210 W
Pendant hanger

Pendant hanger

For 3/4 in conduit · sold separately

Fits
130 · 165 · 210 W
Wire guard

Wire guard

Sold separately

Fits
130 · 165 · 210 W

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1SeriesMLH06Linear high bay series
2Wattage130W · 165W · 210W · 300W130 – 300 watts
3Voltage27V · 48V120–277 V · 347–480 V
4CCTDDK · 40K · 50Kselectable · 4000 K · 5000 K
5LensPD · AL · NDprismatic diffuser · aisle optic · narrow lens
6SensorMPIR sensor · blank = without sensor
7Backup batteryBemergency battery · blank = without
8Surge protectorSwith surge protector · blank = without
9Internal codeblankalphanumeric

Documents and downloads

ModelSpec sheet
All 3 modelsSpec sheetPDF · 1.3 MB

One spec sheet covers MLH06-130W, MLH06-165W, MLH06-210W. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Dimensions and weight · published spec sheet3 rows
ModelDrawing calloutsWeight
130 W16.54 in [420.00 mm] · 9.84 in [250.00 mm] · 1.75 in [44.40 mm]4.63 lb
165 W23.62 in [600.00 mm] · 9.84 in [250.00 mm] · 1.75 in [44.40 mm]5.39 lb
210 W23.62 in [600.00 mm] · 9.84 in [250.00 mm] · 1.75 in [44.40 mm]5.90 lb
Published spec sheet · specification8 rows
PropertyPublished spec sheet
CRI70
Power factor> 0.9
Surge protection6 kV
Dimming0–10 V driver, 10%–100%.
Operating temperature with emergency battery0 °C to 50 °C [32 °F to 122 °F]
PIR sensor settings100% sensitivity, hold 5 min, daylight threshold disabled, standby dimming 30%, dimming time 30 minutes.
Test ambient25 °C (±5 °C)
Mounting restrictionPendant and surface mounting is not supported with an emergency battery.
