LED Flat Panel Light
LED Flat Panel Light in three models, 20-50 W and up to 6,100 lm, for offices, schools, healthcare and retail interiors.
3
Models
20-50 W
Power
6,100 lm
Light output, up to
127 lm/W
Efficacy, up to

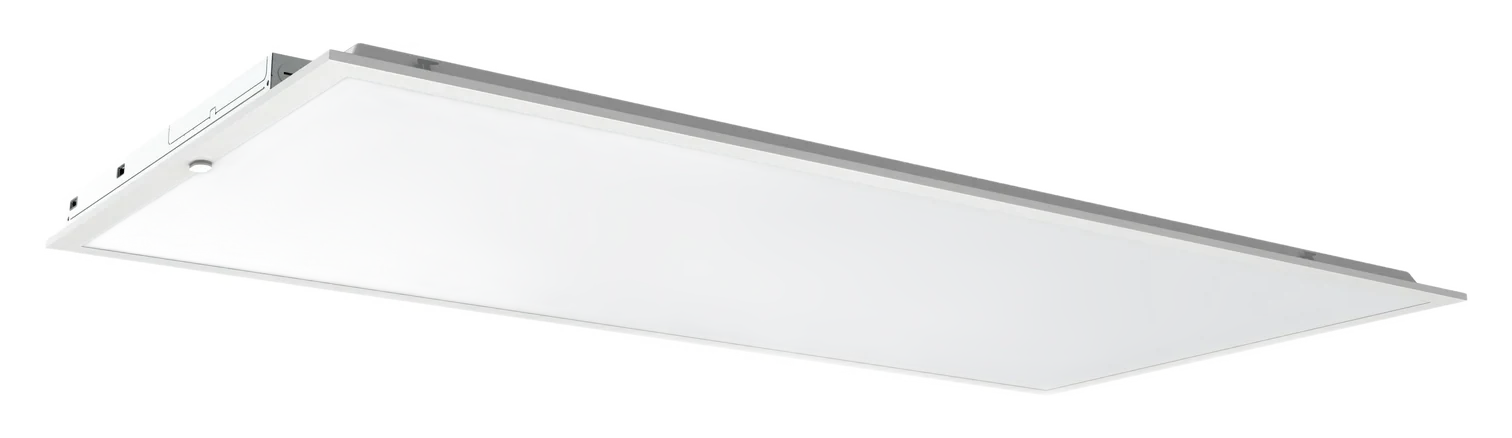

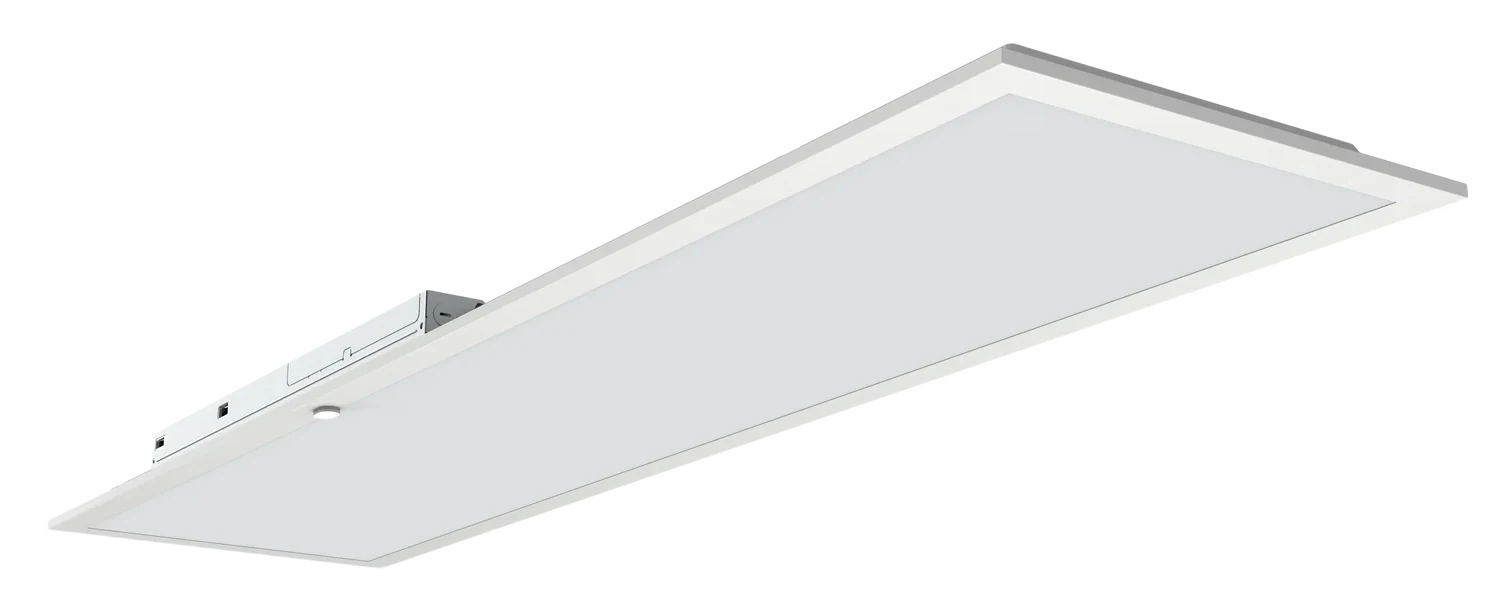

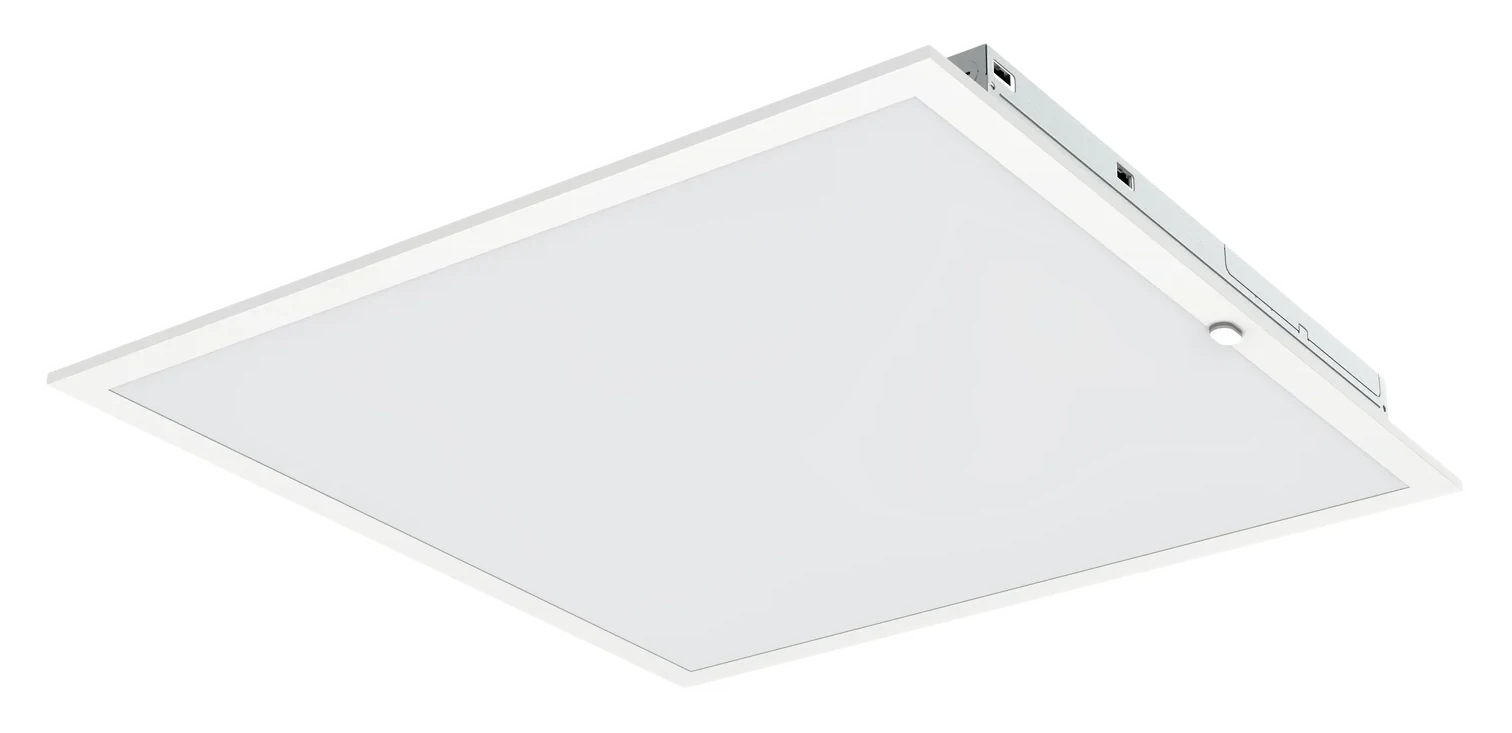

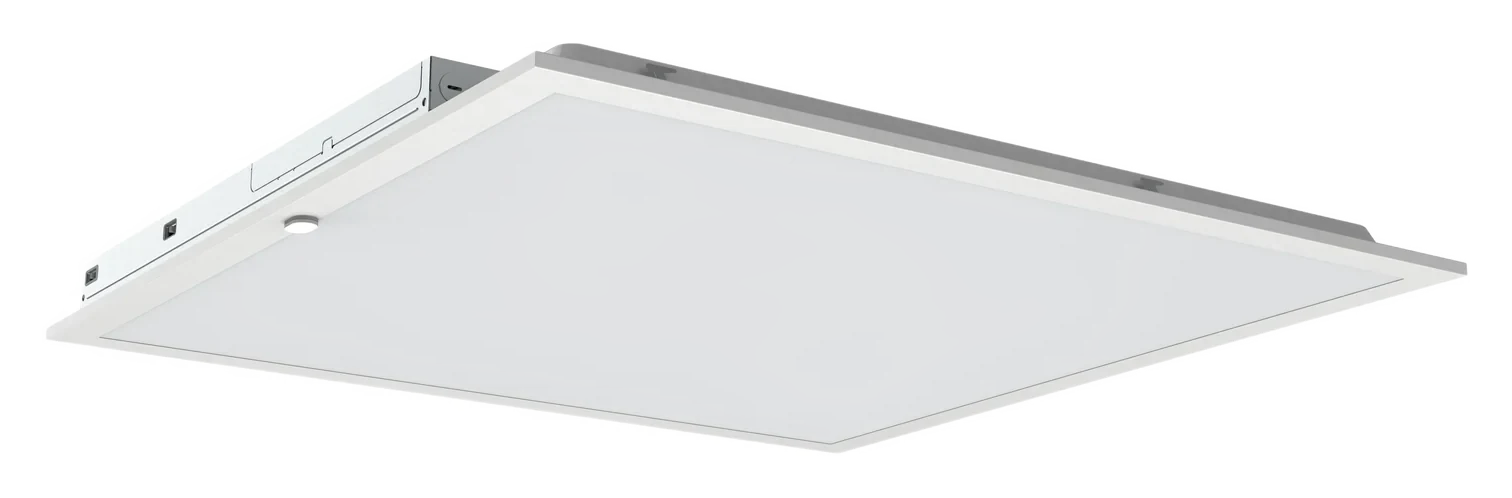

Product views
Where it’s used
- Offices
- Schools
- Healthcare
- Retail interiors
Specification, features and options
- Beam angle
- 120°
- THD
- < 20%
- Dimming
- 0–10 V (optional, per published MFP01 spec sheet)
- Life span
- 50,000 hrs
- Operating temperature
- -17°C to 45°C (+1.4°F to +113°F)
Models and ratings
Maximum lumens
MFP01-22F-40W
- Lumens
- 4,700 / 3,600 / 2,500 lm
- Efficacy
- 118 / 120 / 125 lm/W
- Dimensions
- L 23.7 × W 23.7 × H 1.41 in
- BUG rating
- B1 U1 G1
Settable 40 / 30 / 20 W
MFP01-14F-40W
- Lumens
- 4,700 / 3,600 / 2,500 lm
- Efficacy
- 118 / 120 / 125 lm/W
- Dimensions
- L 47.7 × W 11.9 × H 1.41 in
- BUG rating
- B1 U2 G1
Settable 40 / 30 / 20 W
MFP01-24F-50W
- Lumens
- 6,100 / 4,900 / 3,800 lm
- Efficacy
- 122 / 123 / 127 lm/W
- Dimensions
- L 47.7 × W 23.7 × H 1.41 in
- BUG rating
- B2 U2 G2
Settable 50 / 40 / 30 W
- Every model
- CCT (selectable) 3500 / 4000 / 5000KCRI > 80Input voltage AC 120–277 V
| Model | Wattage (selectable) | Lumens | Dimensions | Efficacy | BUG rating |
|---|---|---|---|---|---|
| MFP01-22F-40W | 40 / 30 / 20 W | 4,700 / 3,600 / 2,500 lm | L 23.7 × W 23.7 × H 1.41 in | 118 / 120 / 125 lm/W | B1 U1 G1 |
| MFP01-14F-40W | 40 / 30 / 20 W | 4,700 / 3,600 / 2,500 lm | L 47.7 × W 11.9 × H 1.41 in | 118 / 120 / 125 lm/W | B1 U2 G1 |
| MFP01-24F-50W | 50 / 40 / 30 W | 6,100 / 4,900 / 3,800 lm | L 47.7 × W 23.7 × H 1.41 in | 122 / 123 / 127 lm/W | B2 U2 G2 |
Dimming is optional in the published MFP01 spec sheet. The catalogue temperature conversion is reproduced as printed. The catalogue and published sheet print −17°C to 45°C (+1.4°F to +113°F). Dimming is optional in the published sheet.
Output data, every setting
Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.
1x4 · 2x2 · 40 W
| Setting | System watts | Lumens | lm/W |
|---|---|---|---|
| LV1 | 40 W | 4,700 lm | 118 lm/W |
| LV2 | 30 W | 3,600 lm | 120 lm/W |
| LV3 | 20 W | 2,500 lm | 125 lm/W |
2x4 · 50 W
| Setting | System watts | Lumens | lm/W |
|---|---|---|---|
| LV1 | 50 W | 6,100 lm | 122 lm/W |
| LV2 | 40 W | 4,900 lm | 123 lm/W |
| LV3 | 30 W | 3,800 lm | 127 lm/W |
Dimensions and mounting
Dimensions in millimetres [inches]. Plan and side views.
Mounting
Recessed · standard
Drops into 15/16 in T-bar grid. No kit required.
Surface · optional kit
Surface frame kit for hard ceilings.
Suspended · optional kit
Aircraft cable kit, adjustable drop.
Options and accessories
PIR occupancy sensor
12–24 V DC plug-in. 5-minute hold, then 30% for 60 minutes
- Fits
- All three sizes
- Order code
- M
Emergency battery pack
8 W, 900 lm, 90 minutes
- Fits
- All three sizes
- Order code
- B
Ordering guide
Catalog number · left to right
| Position | Segment | Code | Meaning |
|---|---|---|---|
| 1 | Series | MFP01 | Flat panel |
| 2 | Size | 14F · 22F · 24F | 1x4 · 2x2 · 2x4 |
| 3 | Wattage | 40W · 40W · 50W | platform maximum; LV1 / LV2 / LV3 set on site |
| 4 | Voltage | MVOLT | 120–277 V |
| 5 | CCT | DDK | 3500 K / 4000 K / 5000 K, set on site |
| 6 | Finish | W | white |
| 7 | Sensor | M | PIR occupancy sensor · blank = none |
| 8 | Battery | B | emergency battery pack · blank = none |
| 9 | Power adj. | AD | field-selectable wattage |
| 10 | Code | Y | internal code · blank = none |
Documents and downloads
| Model | Spec sheet |
|---|---|
| All 3 models | Spec sheetPDF · 1.2 MB |
One spec sheet covers MFP01-22F-40W, MFP01-14F-40W, MFP01-24F-50W. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
From the published spec sheet
Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.
Models · published spec sheet3 rows
| Size | Dimensions | System watts | Lumens | Net weight |
|---|---|---|---|---|
| 1x4 · 14F | 47.7 × 11.9 × 1.41 in [1213 × 303 × 36 mm] | 20 – 40 W | 2500 – 4700 lm | 4.3 lb |
| 2x2 · 22F | 23.7 × 23.7 × 1.41 in [603 × 603 × 36 mm] | 20 – 40 W | 2500 – 4700 lm | 4.1 lb |
| 2x4 · 24F | 47.7 × 23.7 × 1.41 in [1213 × 603 × 36 mm] | 30 – 50 W | 3800 – 6100 lm | 8.1 lb |
Published spec sheet · specification6 rows
| Property | Published spec sheet |
|---|---|
| Dimming | Optional 0–10 V, 10%–100%. |
| Power factor | > 90% |
| Flicker | < 5% |
| Output summary | Lumen packages 2,200 to 6,000 lm; replaces up to four T8 fluorescent units. |
| PIR occupancy sensor preset | 100% sensitivity, 5-minute hold, then dims to 30% for 60 minutes. |
| Test ambient | 25 °C (±5 °C) |
