LED Shoebox Area Light AR07 for Parking Lots

AR07 is a shoebox-style LED area light for parking lots, distribution yards and campus roadways. Four sizes run 70–500 W with selectable wattage, up to 73,430 lm, 3000/4000/5000K selectable, Type II, III, IV or V distribution and 0–10 V dimming. Input is AC 120–277 V, 120–347 V or 277–480 V. Photocell, motion sensor and slip-fitter, arm, yoke or trunnion brackets are sold separately.

Request a quoteDownload spec sheet · PDF
LED shoebox area light AR07, parking lot light — product view

4

Models

70-500 W

Power

73,430 lm

Light output, up to

156 lm/W

Efficacy, up to

Specification, features and options

Distribution
Type II, Type III, Type IV, Type V
Beam angle
T3
Power factor
0.95
Driver efficiency
90%
Dimming
0–10 Vdc
THD
< 20%
Life span
> 50,000 hrs
Operating temperature
-40°F to 113°F
Outdoor rating
Wet location

Models and ratings

Maximum lumens

AR07-150W-H-TCP

Lumens (max)
23,186 lm

Settable 150 / 100 / 70 W

Efficacy (max)
154 lm/W
Dimensions
16.64 × 12.4 in

Depth 3.03 in

BUG rating
B3 U3 G3

AR07-200W-H-TCP

Lumens (max)
31,220 lm

Settable 200 / 150 / 100 W

Efficacy (max)
156 lm/W
Dimensions
18.34 × 12.4 in

Depth 3.03 in

BUG rating
B4 U4 G4

AR07-300W-H-TCP

Lumens (max)
46,659 lm

Settable 300 / 240 / 200 W

Efficacy (max)
155 lm/W
Dimensions
22.51 × 12.4 in

Depth 3.03 in

BUG rating
B3 U3 G3

AR07-500W-H-TCP

Lumens (max)
73,430 lm

Settable 500 / 450 / 400 W

Efficacy (max)
146 lm/W
Dimensions
30.66 × 13.21 in

Depth 3.12 in

BUG rating
B4 U4 G5
Every model
CCT (selectable) 3000 / 4000 / 5000KCRI Ra > 70Input voltage AC 120–277 V / AC 120–347 V / AC 277–480 V
ModelWattage (selectable)Lumens (max)DimensionsEfficacy (max)BUG rating
AR07-150W-H-TCP150 / 100 / 70 W23,186 lm16.64 × 12.4 × 3.03 in154 lm/WB3 U3 G3
AR07-200W-H-TCP200 / 150 / 100 W31,220 lm18.34 × 12.4 × 3.03 in156 lm/WB4 U4 G4
AR07-300W-H-TCP300 / 240 / 200 W46,659 lm22.51 × 12.4 × 3.03 in155 lm/WB3 U3 G3
AR07-500W-H-TCP500 / 450 / 400 W73,430 lm30.66 × 13.21 × 3.12 in146 lm/WB4 U4 G5

Dimensions and mounting

Dimensions as printed in the Allmax spec sheet.

Dimensioned 150 / 100 / 70 W,
150 / 100 / 70 W
Dimensioned 200 / 150 / 100 W,
200 / 150 / 100 W
Dimensioned 300 / 240 / 200 W,
300 / 240 / 200 W
Dimensioned 500 / 450 / 400 W,
500 / 450 / 400 W

Mounting

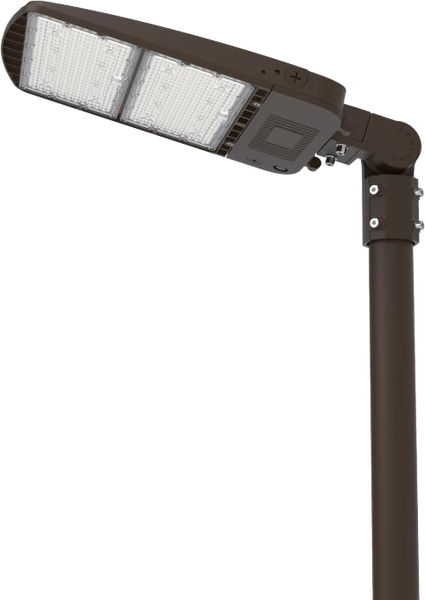

Slip-fitter · Type A

On top of a pole.

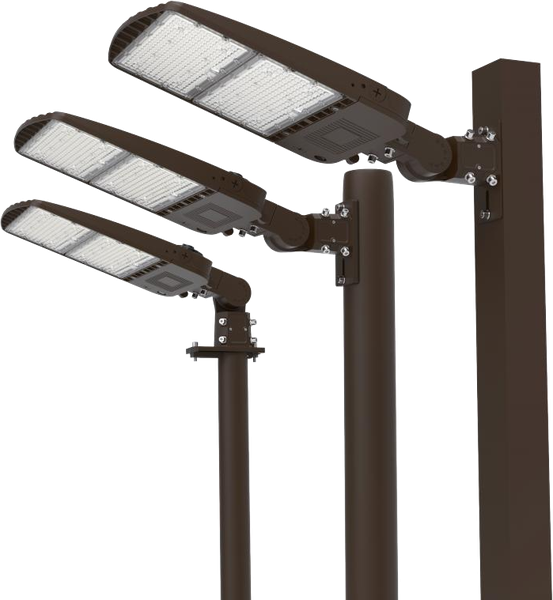

Slip-fitter + arm · Type F

Arm-mounted to the side of a pole.

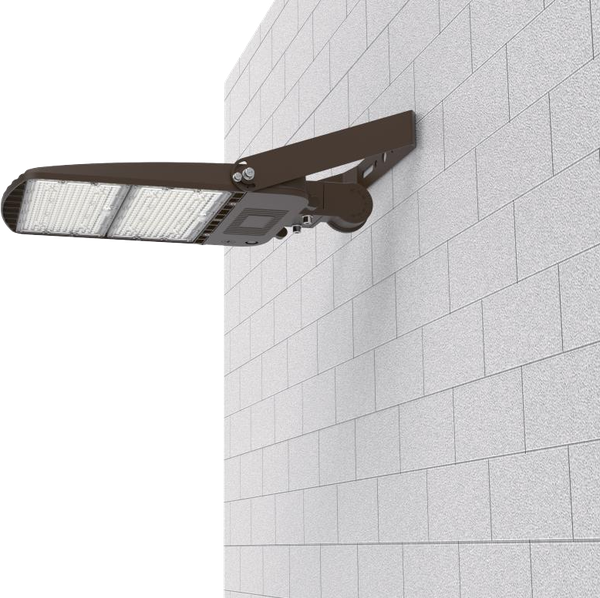

Yoke · Type E

Wall mounting on a yoke bracket.

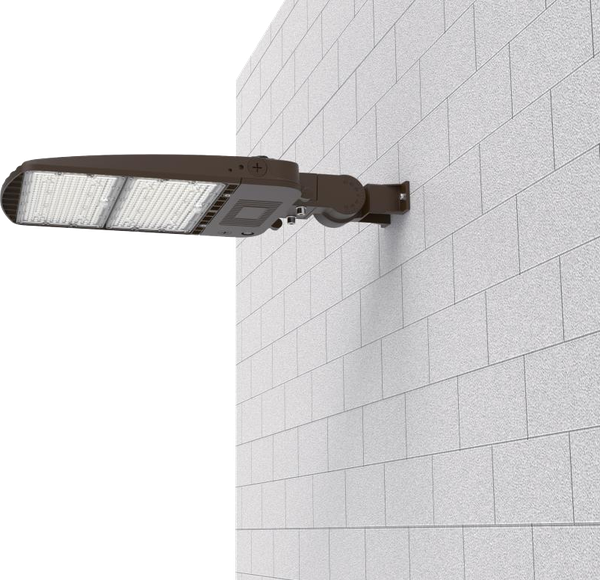

Trunnion · Type D

Wall mounting on a trunnion bracket.

Options and accessories

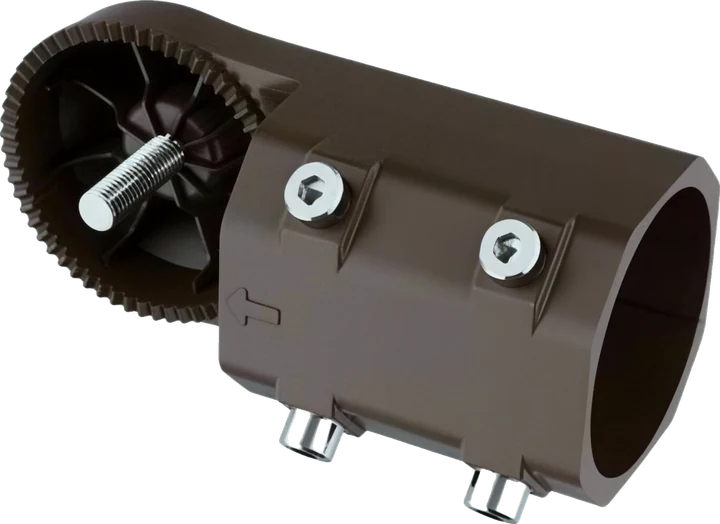

Slip-fitter bracket, Type A

Slip-fitter bracket, Type A

Sold separately

Fits
All four models

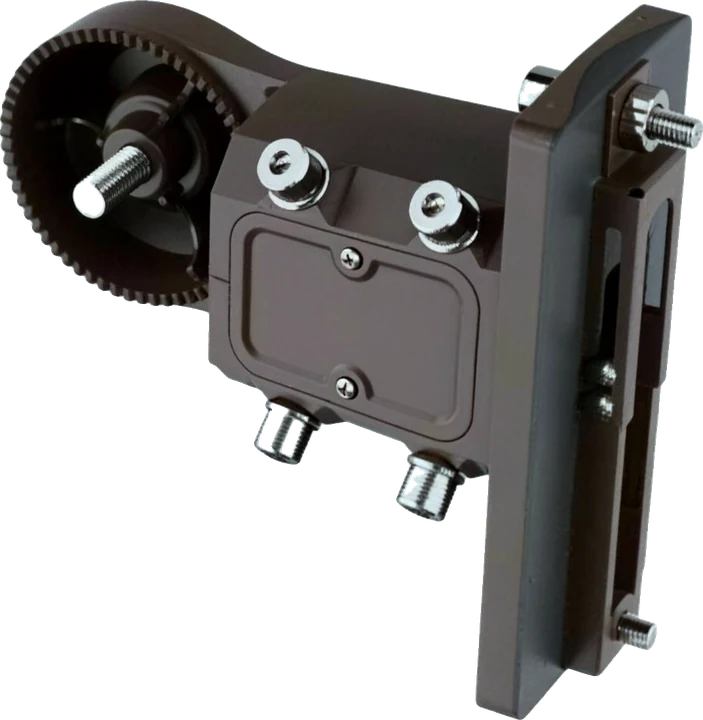

Slip-fitter + arm bracket, Type F

Slip-fitter + arm bracket, Type F

Sold separately

Fits
All four models

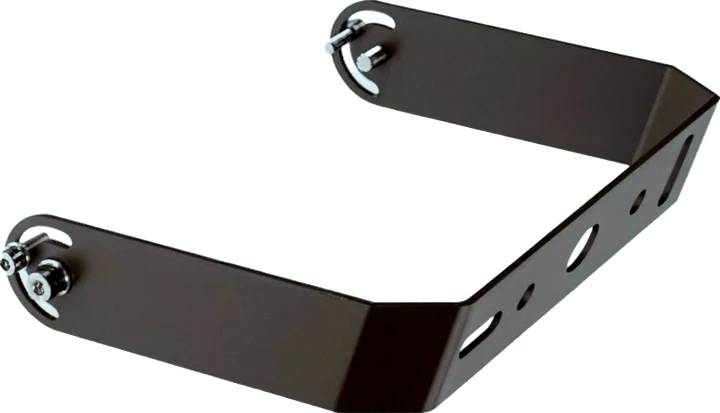

Yoke bracket, Type E

Yoke bracket, Type E

Sold separately

Fits
All four models

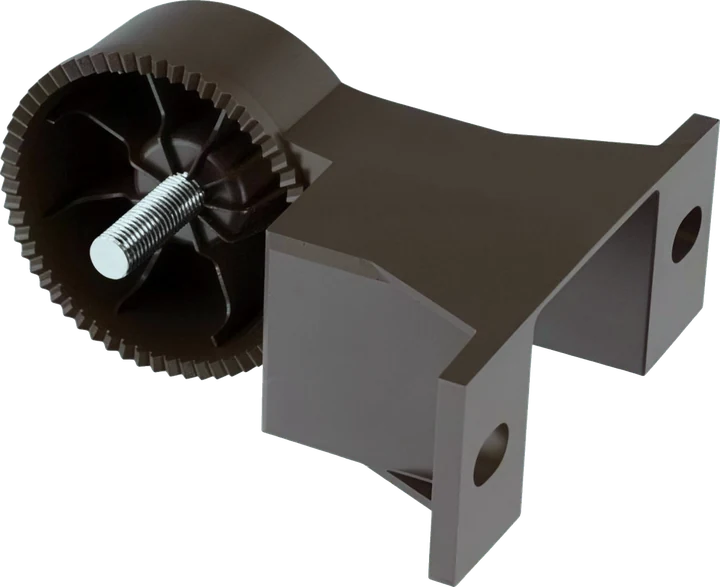

Trunnion bracket, Type D

Trunnion bracket, Type D

Sold separately

Fits
All four models

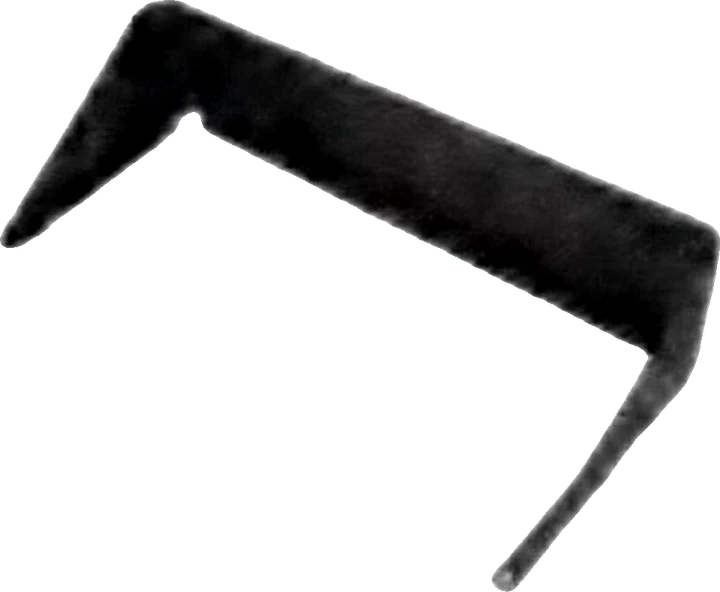

Dark shield

Dark shield

Sold separately

Fits
All four models

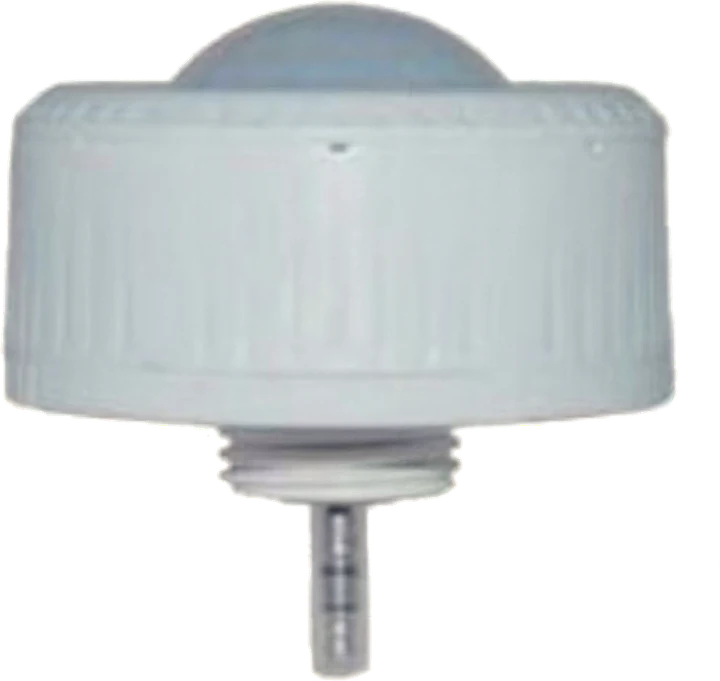

PIR sensor

PIR sensor

Infrared sensor

Fits
All four models
Order code
A

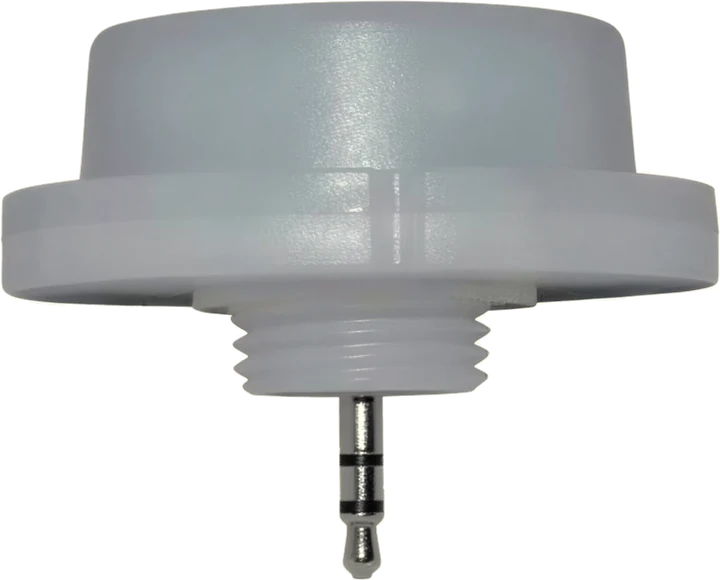

Motion sensor

Motion sensor

Sold separately

Fits
All four models

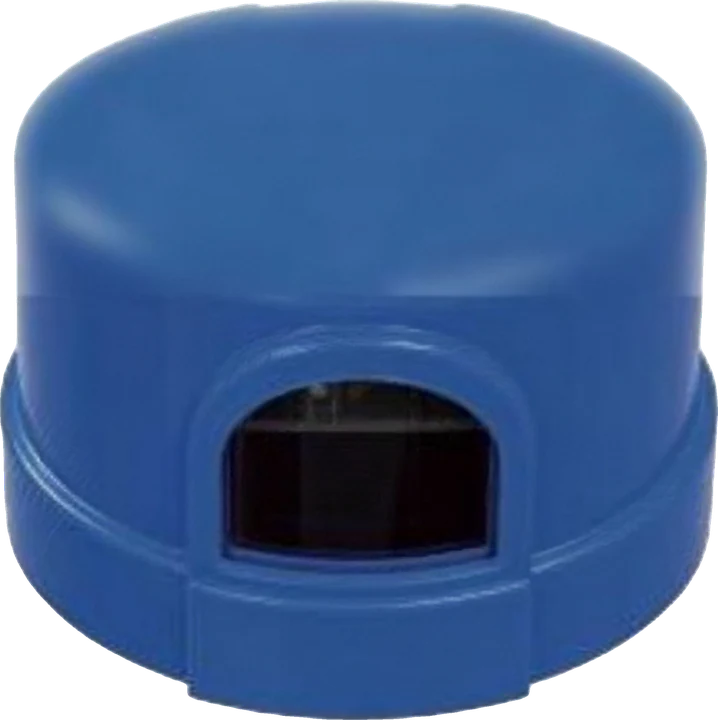

Photocell sensor

Photocell sensor

Sold separately

Fits
All four models

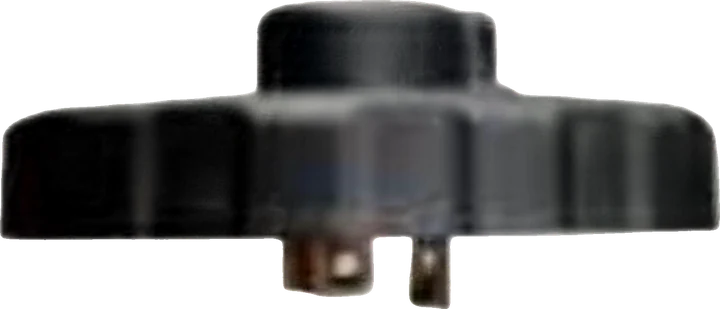

Shorting cap

Shorting cap

Sold separately

Fits
All four models

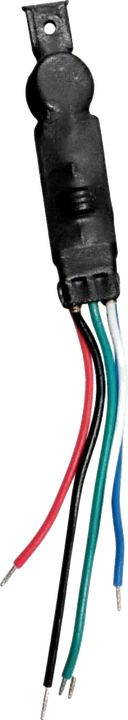

Surge protector

Surge protector

Sold separately

Fits
All four models

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1ProductAR07area light
2Power150W · 200W · 300W · 500W150/100/70 W · 200/150/100 W · 300/240/200 W · 500/450/400 W
3OutputHhigh lumen
4Voltageblank · MV · HV120–277 V · 120–347 V · 277–480 V
5CCTTCP3000 / 4000 / 5000 K, field-selectable
6ControlA · B · C · D · blankPIR · occupancy · occupancy + Bluetooth · PIR + Bluetooth · no sensor
7DistributionT2 · T3 · T4 · T5Type II · Type III · Type IV · Type V
  1. Blank segments are left out of the model number, as in AR07-150W-H-TCP.

Documents and downloads

ModelSpec sheet
All 4 modelsSpec sheetPDF · 2.7 MB

One spec sheet covers AR07-150W-H-TCP, AR07-200W-H-TCP, AR07-300W-H-TCP, AR07-500W-H-TCP. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Drawing · 150/100/70 W4 rows
Drawing calloutPublished spec sheet
150/100/70 W11.41 in [289.8 mm]
150/100/70 W12.4 in [314.9 mm]
150/100/70 W16.64 in [422.6 mm]
150/100/70 W3.03 in [76.9 mm]
Drawing · 200/150/100 W4 rows
Drawing calloutPublished spec sheet
200/150/100 W13.11 in [333 mm]
200/150/100 W12.4 in [314.9 mm]
200/150/100 W18.34 in [465.9 mm]
200/150/100 W3.03 in [76.9 mm]
Drawing · 300/240/200 W4 rows
Drawing calloutPublished spec sheet
300/240/200 W17.27 in [438.6 mm]
300/240/200 W12.4 in [314.9 mm]
300/240/200 W22.51 in [571.8 mm]
300/240/200 W3.03 in [76.9 mm]
Drawing · 500/450/400 W4 rows
Drawing calloutPublished spec sheet
500/450/400 W25.44 in [646.3 mm]
500/450/400 W13.21 in [335.5 mm]
500/450/400 W30.66 in [778.6 mm]
500/450/400 W3.12 in [79.2 mm]
Packing · published spec sheet4 rows
WattageOuter packing sizeNet weightGross weightQty / carton
150/100/70 WL14.29 × W12.8 × H3.94 in [L363 × W325 × H100 mm]6.57 lb [2.98 kg]8.00 lb [3.63 kg]1 pc/ctn
200/150/100 WL15.87 × W12.8 × H3.94 in [L403 × W325 × H100 mm]7.41 lb [3.36 kg]10.05 lb [4.56 kg]1 pc/ctn
300/240/200 WL20.04 × W12.8 × H3.94 in [L509 × W325 × H100 mm]9.5 lb [4.31 kg]11.51 lb [5.22 kg]1 pc/ctn
500/450/400 WL28.19 × W13.58 × H3.94 in [L716 × W345 × H100 mm]17.42 lb [7.90 kg]20.28 lb [9.20 kg]1 pc/ctn
Published spec sheet · specification2 rows
PropertyPublished spec sheet
Storage temperature-40°F to 176°F
LED junction temperatureLED Tj < 85°C
Photometrics · 150/100/70 W · measurements15 rows
MeasurementPublished spec sheet
C0/180162.2°
C30/21058.6°
C60/24062.7°
C90/27064.3°
Average beam angle (50%)86.9°
Max @ γ65.0DEG
Enadir at MH=10 m28.07 lx
MAX6937.7
MIN1449.5
AVG3250.4
AVG/MAX0.47
MIN/MAX0.21
Imax (cd)8323
Imax position(H51.5,V-46.5)
Imax plane(At:C=30.0,Gamma=65.0)
Photometrics · 150/100/70 W · candela contours9 rows
ContourIntensity (cd)
10%832.3
20%1665
30%2497
40%3329
50%4161
60%4994
70%5826
80%6658
90%7490
Photometrics · 150/100/70 W · road surface isolux1 row
MeasurementPublished spec sheet
Contour legend (lx)31 · 23 · 19 · 15 · 11 · 3.8 · 1.9 · 1.1 · 0.38 · 0.19
Photometrics · 200/150/100 W · measurements17 rows
MeasurementPublished spec sheet
C0/180156.9°
C30/21070.9°
C60/24067.9°
C90/27063.3°
Average beam angle (50%)89.8°
Max @ γ68.0DEG
Enadir at MH=10 m54.30 lx
U Emin/Eavg0.418
Eavg64.59 lx
MAX10599
MIN2707.0
AVG6006.7
AVG/MAX0.57
MIN/MAX0.26
Imax (cd)13926
Imax position(H-68.0,V0.0)
Imax plane(At:C=180.0,Gamma=68.0)
Photometrics · 200/150/100 W · candela contours9 rows
ContourIntensity (cd)
10%1393
20%2785
30%4178
40%5570
50%6963
60%8356
70%9748
80%11141
90%12533
Photometrics · 200/150/100 W · road surface isolux1 row
MeasurementPublished spec sheet
Contour legend (lx)55 · 42 · 35 · 28 · 21 · 6.9 · 3.5 · 2.1 · 0.69 · 0.35
Photometrics · 300/240/200 W · measurements15 rows
MeasurementPublished spec sheet
C0/180141.5°
C30/21025.6°
C60/240117.2°
C90/270108.1°
Average beam angle (50%)98.1°
Max @ γ67.5DEG
Enadir at MH=10 m90.61 lx
MAX13824
MIN5168.4
AVG8945.4
AVG/MAX0.65
MIN/MAX0.37
Imax (cd)22151
Imax position(H53.0,V-50.5)
Imax plane(At:C=30.0,Gamma=67.5)
Photometrics · 300/240/200 W · candela contours9 rows
ContourIntensity (cd)
10%2215
20%4430
30%6645
40%8860
50%11075
60%13291
70%15506
80%17721
90%19936
Photometrics · 300/240/200 W · road surface isolux1 row
MeasurementPublished spec sheet
Contour legend (lx)72 · 54 · 45 · 36 · 27 · 9.1 · 4.5 · 2.7 · 0.91 · 0.45
Photometrics · 500/450/400 W · measurements15 rows
MeasurementPublished spec sheet
C0/180163.1°
C30/21070.8°
C60/24068.0°
C90/27065.6°
Average beam angle (50%)91.9°
Max @ γ72.5DEG
Enadir at MH=10 m98.17 lx
MAX19066
MIN4327.6
AVG10576
AVG/MAX0.55
MIN/MAX0.23
Imax (cd)24444
Imax position(H-72.5,V0.0)
Imax plane(At:C=180.0,Gamma=72.5)
Photometrics · 500/450/400 W · candela contours9 rows
ContourIntensity (cd)
10%2444
20%4889
30%7333
40%9777
50%12222
60%14666
70%17111
80%19555
90%21999
Photometrics · 500/450/400 W · road surface isolux1 row
MeasurementPublished spec sheet
Contour legend (lx)100 · 75 · 63 · 50 · 38 · 13 · 6.3 · 3.8 · 1.3 · 0.63
Isolux mounting-height factors12 rows
HeightFactor
5 m4.000
6 m2.778
7 m2.041
8 m1.563
9 m1.235
10 m1.000
11 m0.826
12 m0.694
13 m0.592
14 m0.510
15 m0.444
16 m0.391
