4 models · Security Light

LED Wall Pack Light WPA15

WPA15 is an LED wall pack in four sizes from 15 to 150 W, each with four wattage settings, up to 21,750 lm and 3000/4000/5000K selectable. The asymmetric, polarized beam is selectable at 35°, 50° or 65°. It dims 0–10 V and runs on AC 120–277 V.

Request a quoteSee the models

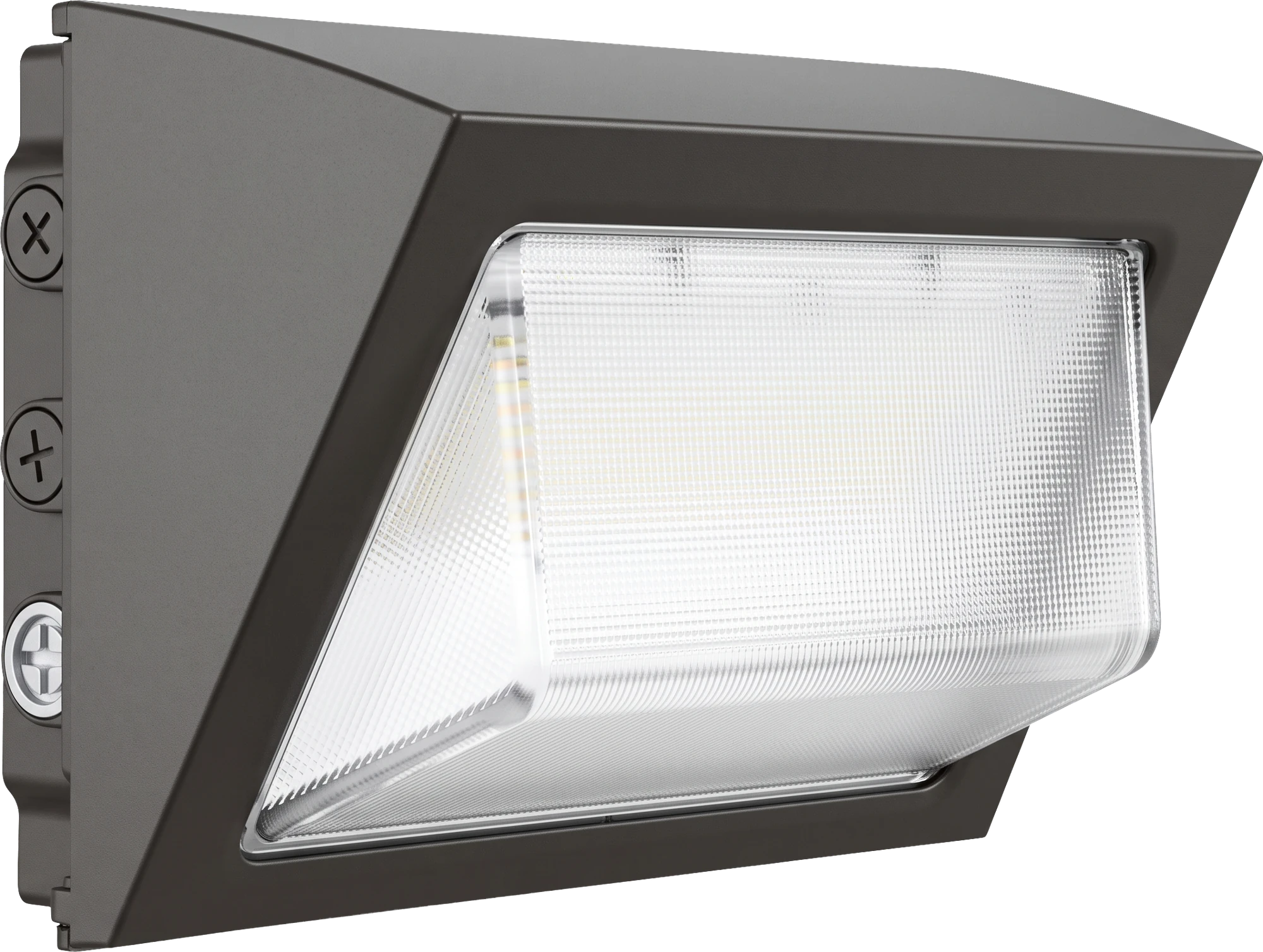

LED Wall Pack Light WPA15 — catalogue product view

4

Models

15-150 W

Power

21,750 lm

Light output, up to

145 lm/W

Efficacy, up to

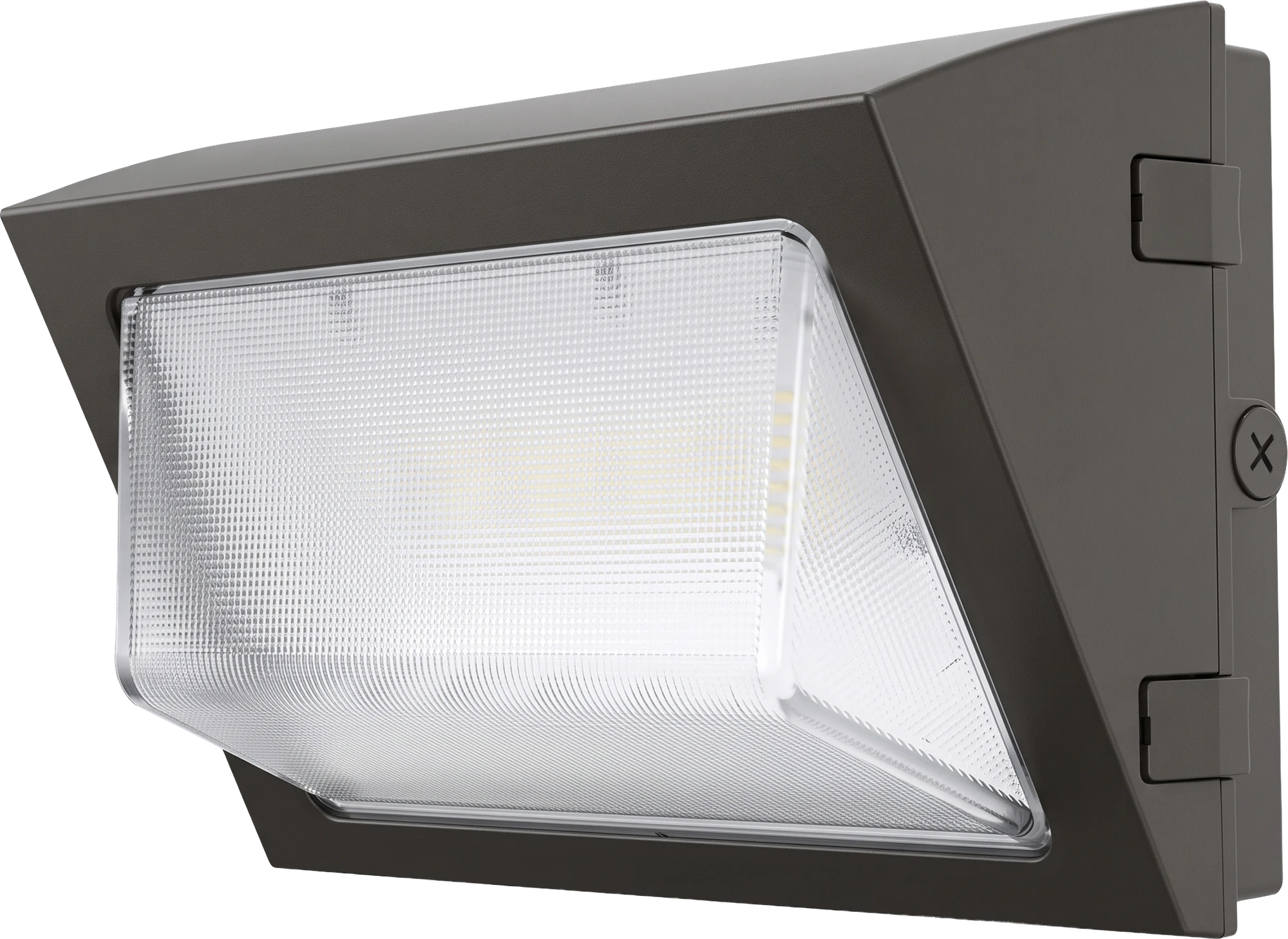

Product views

Specification, features and options

Distribution
Asymmetric / polarized
Beam angle (selectable)
Polarized 35° / 50° / 65°
THD
< 20%
Dimming
0–10 V
Surge protection
L-N 6 kV, L/N-PE 6 kV
BUG rating
B0 U3 G3

Models and ratings

Maximum lumens

WPA15-015/025/030/040U3050L-01CDS-BS

Lumens (max)
5,800 lm

Settable 15 / 25 / 30 / 40 W

Efficacy
145 lm/W
Dimensions
L 10 × W 7.25 × H 9 in

WPA15-050/060/070/080U3050L-02CDS-BS

Lumens (max)
11,600 lm

Settable 50 / 60 / 70 / 80 W

Efficacy
145 lm/W
Dimensions
L 13.5 × W 8.9 × H 6.5 in

WPA15-070/080/090/100U3050L-02CDS-BS

Lumens (max)
14,500 lm

Settable 70 / 80 / 90 / 100 W

Efficacy
145 lm/W
Dimensions
L 13.5 × W 8.9 × H 6.5 in

WPA15-100/120/140/150U3050L-03CDS-BS

Lumens (max)
21,750 lm

Settable 100 / 120 / 140 / 150 W

Efficacy
145 lm/W
Dimensions
L 17.8 × W 9.2 × H 7.3 in
Every model
CCT (selectable) 3000 / 4000 / 5000KCRI > 80Input voltage AC 120–277 VEfficacy 145 lm/WListings FCC · cULus · DLC Listed
ModelWattage (selectable)Lumens (max)Dimensions
WPA15-015/025/030/040U3050L-01CDS-BS15 / 25 / 30 / 40 W5,800 lmL 10 × W 7.25 × H 9 in
WPA15-050/060/070/080U3050L-02CDS-BS50 / 60 / 70 / 80 W11,600 lmL 13.5 × W 8.9 × H 6.5 in
WPA15-070/080/090/100U3050L-02CDS-BS70 / 80 / 90 / 100 W14,500 lmL 13.5 × W 8.9 × H 6.5 in
WPA15-100/120/140/150U3050L-03CDS-BS100 / 120 / 140 / 150 W21,750 lmL 17.8 × W 9.2 × H 7.3 in

Documents and downloads

Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Published spec sheet · specification7 rows
PropertyPublished spec sheet
Daylight sensorBuilt-in daylight sensor with disable switch.
SensorsOptional sensors available.
Lifespan50000 hours
Working temperature-40°C to 50°C
Working temperature · built-in emergency series0°C to 45°C
HousingDie-casting aluminum housing with corrosion resistant polyester powder coat finish.
MountingWall mounting
Output · published spec sheet12 rows
ModelWattageLumen (lm)
WPA15-015/025/030/040U3050L-01CDS-BS15 W2170 lm
WPA15-015/025/030/040U3050L-01CDS-BS25 W3620 lm
WPA15-015/025/030/040U3050L-01CDS-BS30 W4350 lm
WPA15-050/060/070/080U3050L-02CDS-BS50 W7250 lm
WPA15-050/060/070/080U3050L-02CDS-BS60 W8700 lm
WPA15-050/060/070/080U3050L-02CDS-BS70 W10150 lm
WPA15-070/080/090/100U3050L-02CDS-BS70 W10150 lm
WPA15-070/080/090/100U3050L-02CDS-BS80 W11600 lm
WPA15-070/080/090/100U3050L-02CDS-BS90 W13050 lm
WPA15-100/120/140/150U3050L-03CDS-BS100 W14500 lm
WPA15-100/120/140/150U3050L-03CDS-BS120 W17400 lm
WPA15-100/120/140/150U3050L-03CDS-BS140 W20300 lm
Published spec sheet · controls2 rows
PropertyPublished spec sheet
Photocell operationTurns light on at dusk and off at dawn.
AccessoryEmergency driver.
