LED Wall Pack Light WK07

WK07 is an LED wall pack with Type III (95° × 120°) distribution: 120/100/80/60/40 W selectable, up to 16,800 lm, 3000/4000/5000K selectable, wet location. Input is AC 120–277 V, 120–347 V or 277–480 V. The emergency driver and plug-in sensors are sold separately.

Request a quoteDownload spec sheet · WK07-120W · PDF

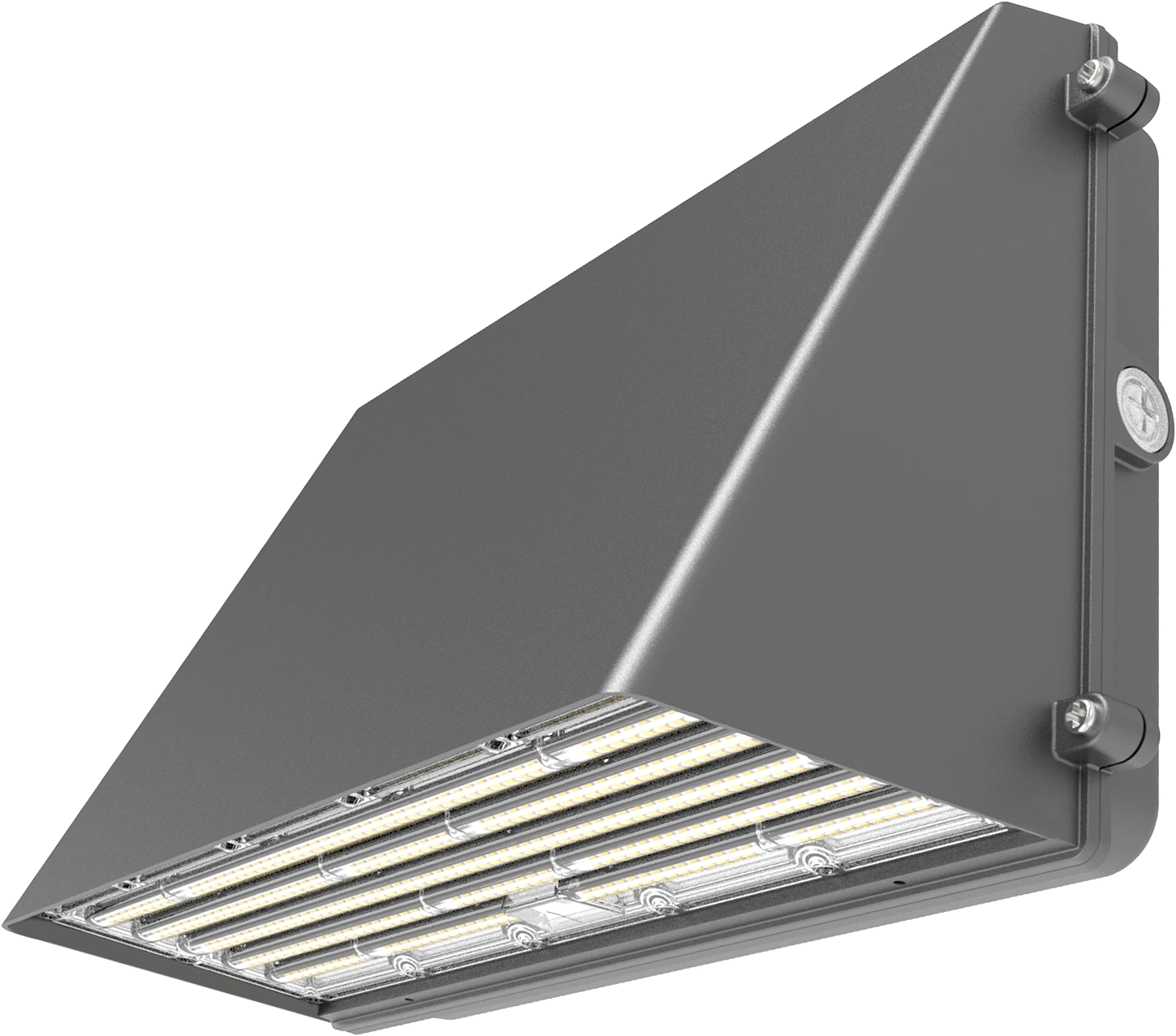

LED Wall Pack Light WK07 — WK07-120W

1

Model

40-120 W

Power

16,800 lm

Light output

140 lm/W

Efficacy

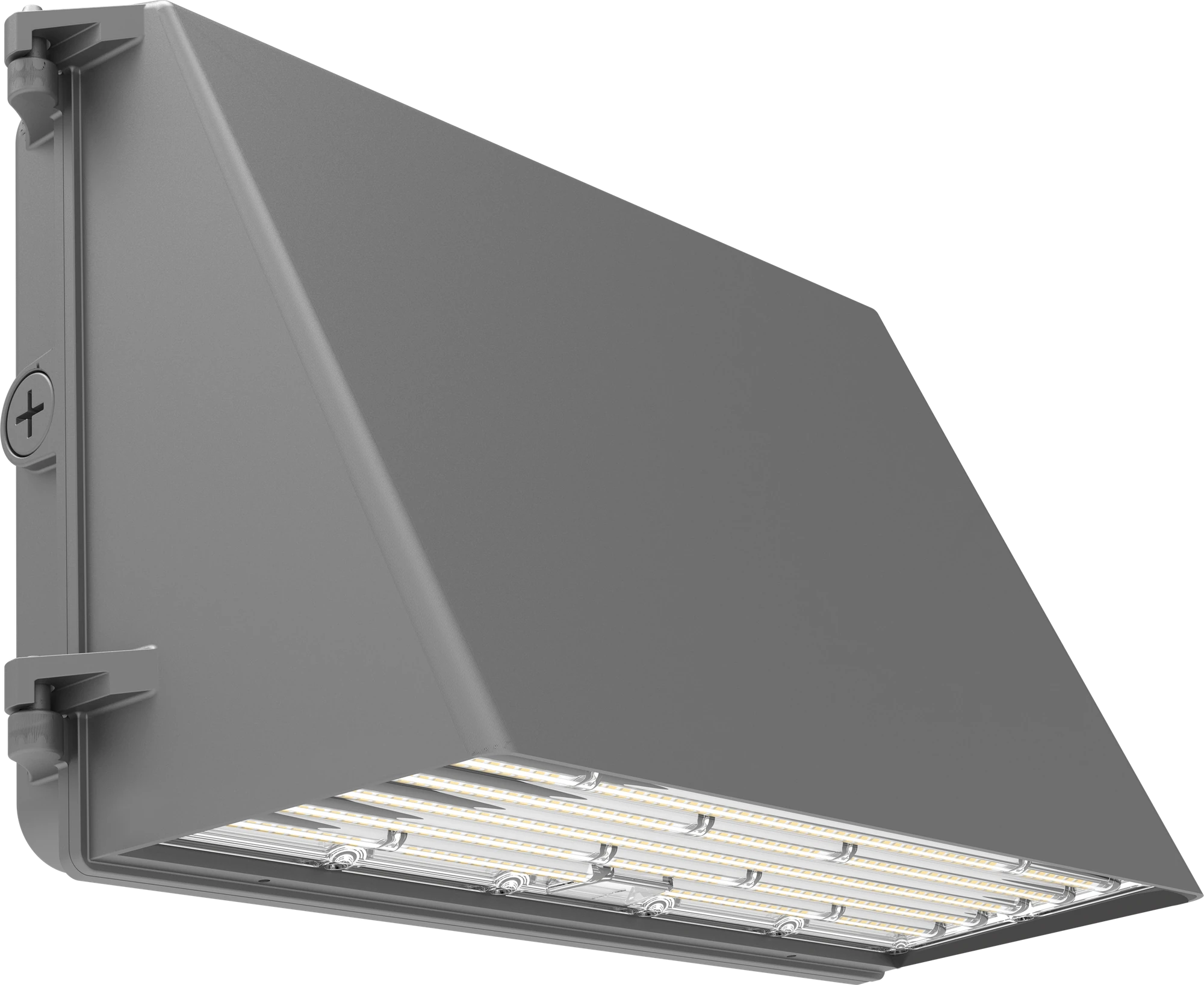

Product views

Specification, features and options

Distribution
95° × 120°, Type III
Operating temperature
-40°F to 113°F
Storage temperature
-40°F to 158°F
Power factor
> 0.9
Protection
Wet location
Life span
> 50,000 hrs
THD
< 20%

Models and ratings

Model
WK07-120W
Wattage (selectable)
120 / 100 / 80 / 60 / 40 W
Lumens (max)
16,800 lm
CCT (selectable)
3000 / 4000 / 5000K
CRI
Ra > 70
Input voltage
AC 120–277 V / AC 120–347 V / AC 277–480 V
Dimensions
L 14.24 × W 9.27 × H 7.38 in
Efficacy (max)
140 lm/W

Options and accessories

Mounting kit

Mounting kit

4 screws, 5 wire nuts and a foam gasket. Standard.

Fits
WK07
Plug-in sensors

Plug-in sensors

Low-voltage, sold separately

Fits
WK07
Order code
A · B · C · D
Emergency driver

Emergency driver

Sold separately

Fits
WK07

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1ProductWK07Full-cutoff LED wall pack
2Power120W120W = 120/100/80/60/40 W
3High lumensHHigh lumens
4Input voltagexxBlank = 120-277 Vac · MV = 120-347 Vac · HV = 277-480 Vac
5CCTTCPTunable CCT and power: 3000 K · 4000 K · 5000 K
6ControlYA PIR sensor (infrared) · B MS sensor (occupancy) · C BRT sensor (occupancy + bluetooth) · D PHB sensor (infrared bluetooth) · blank no sensor

Documents and downloads

ModelSpec sheet
WK07-120WSpec sheetPDF · 1.8 MB

IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Drawing · FRONT VIEW2 rows
Drawing calloutPublished spec sheet
FRONT VIEW14.24 in [361.6 mm]
FRONT VIEW7.38 in [187.4 mm]
Drawing · SIDE VIEW1 row
Drawing calloutPublished spec sheet
SIDE VIEW9.27 in [235.5 mm]
Packing · published spec sheet1 row
ModelOuter box (L × W × H)Qty / cartonNet weightGross weight
120 / 100 / 80 / 60 / 40 WL15.16 × W9.76 × H8.07 in [L385 × W248 × H205 mm]1 pc/ctn5.95 lb [2.70 kg]6.83 lb [3.10 kg]
Published spec sheet · specification3 rows
PropertyPublished spec sheet
Driver efficiency> 90%
Dimming power supplies120-277 V / 0-10 V and 120-347 V / 277-480 V, 0-10 V
Included hardwareScrews · 4 PCS; Wire nuts · 5 PCS; Foam gasket · 1 PC
Photometrics · 120 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)72.8
C90/270 (deg)76.1
Average beam angle (50%)74.5 DEG
Cone angle76.07 deg
Flux out6345 lm
Mounting height33'(10.0m)
MH=1m5400 · 4700 · 4000 · 3400 · 2700 · 2000 · 670 · 340 · 200 · 67.0
Photometrics · 120 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1 m3080, 6746 lx156.44 cm
2 m770.0, 1687 lx312.88 cm
3 m342.2, 749.6 lx469.33 cm
4 m192.5, 421.6 lx625.77 cm
5 m123.2, 269.8 lx782.21 cm
6 m85.55, 187.4 lx938.65 cm
7 m62.85, 137.7 lx1095.09 cm
8 m48.12, 105.4 lx1251.54 cm
9 m38.02, 83.29 lx1407.98 cm
10 m30.80, 67.46 lx1564.42 cm
Photometrics · 120 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%2.010 lx0.1867 fc
5%3.349 lx0.3112 fc
10%6.698 lx0.6223 fc
30%20.10 lx1.867 fc
50%33.49 lx3.112 fc
Photometrics · 100 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)69.6
C90/270 (deg)71.6
Average beam angle (50%)70.6 DEG
Cone angle71.50 deg
Flux out4379 lm
Mounting height33'(10.0m)
MH=1m4400 · 3900 · 3300 · 2800 · 2200 · 1700 · 550 · 280 · 170 · 55.0
Photometrics · 100 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1 m2641, 5537 lx143.98 cm
2 m660.2, 1384 lx287.95 cm
3 m293.4, 615.2 lx431.93 cm
4 m165.1, 346.0 lx575.90 cm
5 m105.6, 221.5 lx719.88 cm
6 m73.36, 153.8 lx863.86 cm
7 m53.89, 113.0 lx1007.83 cm
8 m41.26, 86.51 lx1151.81 cm
9 m32.60, 68.35 lx1295.78 cm
10 m26.41, 55.37 lx1439.76 cm
Photometrics · 100 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%1.661 lx0.1543 fc
5%2.769 lx0.2572 fc
10%5.538 lx0.5145 fc
30%16.61 lx1.543 fc
50%27.69 lx2.572 fc
Photometrics · 80 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)73.5
C90/270 (deg)71.9
Average beam angle (50%)72.7 DEG
Cone angle71.83 deg
Flux out3926 lm
Mounting height33'(10.0m)
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)23.0 · 19.0 · 15.0 · 12.0 · 7.70 · 3.90 · 3.10 · 1.90 · 1.50 · 1.20
Photometrics · 80 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1 m2122, 4481 lx144.85 cm
2 m530.6, 1120 lx289.69 cm
3 m235.8, 497.9 lx434.54 cm
4 m132.7, 280.1 lx579.39 cm
5 m84.90, 179.2 lx724.23 cm
6 m58.96, 124.5 lx869.08 cm
7 m43.31, 91.45 lx1013.93 cm
8 m33.16, 70.01 lx1158.77 cm
9 m26.20, 55.32 lx1303.62 cm
10 m21.22, 44.81 lx1448.47 cm
Photometrics · 80 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%1.340 lx0.1245 fc
5%2.234 lx0.2075 fc
10%4.468 lx0.415 fc
30%13.40 lx1.245 fc
50%22.34 lx2.075 fc
Photometrics · 60 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)69.5
C90/270 (deg)71.5
Average beam angle (50%)70.5 DEG
Cone angle71.48 deg
Flux out2818 lm
Mounting height33'(10.0m)
MH=1m2900 · 2500 · 2100 · 1800 · 1400 · 1100 · 360 · 180 · 110 · 36.0
Photometrics · 60 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1 m1699, 3580 lx143.92 cm
2 m424.8, 895.0 lx287.85 cm
3 m188.8, 397.8 lx431.77 cm
4 m106.2, 223.7 lx575.69 cm
5 m67.97, 143.2 lx719.62 cm
6 m47.20, 99.44 lx863.54 cm
7 m34.68, 73.06 lx1007.46 cm
8 m26.55, 55.94 lx1151.39 cm
9 m20.98, 44.20 lx1295.31 cm
10 m16.99, 35.80 lx1439.23 cm
Photometrics · 60 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%1.074 lx0.09977 fc
5%1.790 lx0.1663 fc
10%3.580 lx0.3326 fc
30%10.74 lx0.9977 fc
50%17.90 lx1.663 fc
Photometrics · 40 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)75.3
C90/270 (deg)78.8
Average beam angle (50%)77.1 DEG
Cone angle78.87 deg
Flux out2335 lm
Mounting height33'(10.0m)
MH=1m1900 · 1700 · 1500 · 1200 · 970 · 730 · 240 · 120 · 73.0 · 24.0
Photometrics · 40 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1 m1056, 2424 lx164.47 cm
2 m263.9, 606.0 lx328.95 cm
3 m117.3, 269.3 lx493.42 cm
4 m65.97, 151.5 lx657.90 cm
5 m42.22, 96.95 lx822.37 cm
6 m29.32, 67.33 lx986.85 cm
7 m21.54, 49.47 lx1151.32 cm
8 m16.49, 37.87 lx1315.80 cm
9 m13.03, 29.92 lx1480.27 cm
10 m10.56, 24.24 lx1644.75 cm
Photometrics · 40 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.7260 lx0.06745 fc
5%1.210 lx0.1124 fc
10%2.420 lx0.2248 fc
30%7.260 lx0.6745 fc
50%12.10 lx1.124 fc
