LED Wall Pack Light WK06

WK06 is an LED wall pack with Type II (80° × 100°) distribution: 120/100/80 W selectable, up to 16,800 lm, 3000/4000/5000K selectable, wet location. Input is AC 120–277 V, 120–347 V or 277–480 V. The emergency driver and plug-in sensors are sold separately.

Request a quoteDownload spec sheet · WK06-120W-H-TCP · PDF

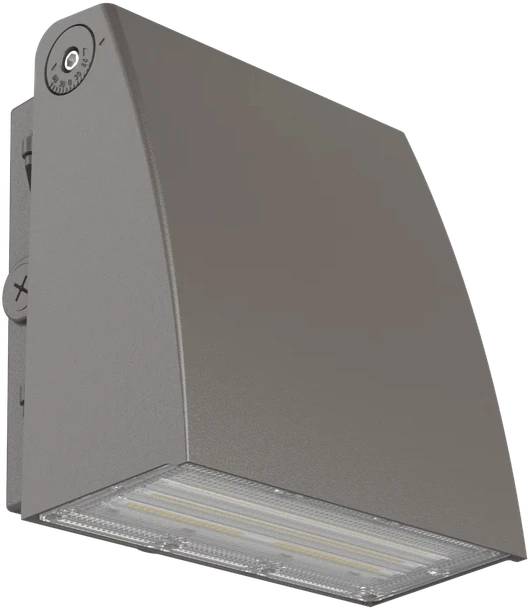

LED Wall Pack Light WK06 — catalogue product view

1

Model

80-120 W

Power

16,800 lm

Light output

140 lm/W

Efficacy

Specification, features and options

Distribution
80° × 100°, Type II
Operating temperature
-40°F to 113°F
Storage temperature
-40°F to 158°F
Power factor
> 0.9
Protection
Wet location
Life span
> 50,000 hrs
THD
< 20%

Models and ratings

Model
WK06-120W-H-TCP
Wattage (selectable)
120 / 100 / 80 W
Lumens (max)
16,800 lm
CCT (selectable)
3000 / 4000 / 5000K
CRI
Ra > 70
Input voltage
AC 120–277 V / AC 120–347 V / AC 277–480 V
Dimensions
L 10.73 × W 10.51 × H 6.46 in
Efficacy (max)
140 lm/W

The catalogue lists 120 / 100 / 80 W. The published sheet also contains a five-setting table; confirm the ordered configuration with the quotation.

Options and accessories

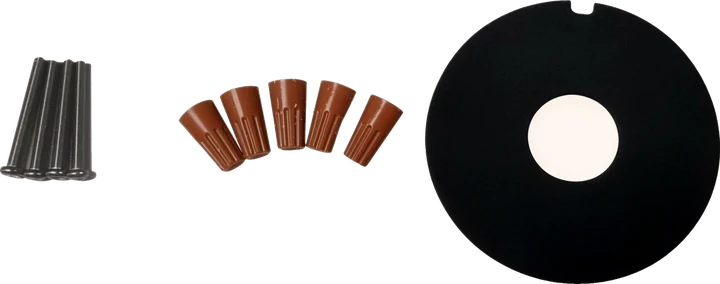

Mounting kit

Mounting kit

4 screws, 5 wire nuts and a foam gasket. Standard.

Fits
WK06

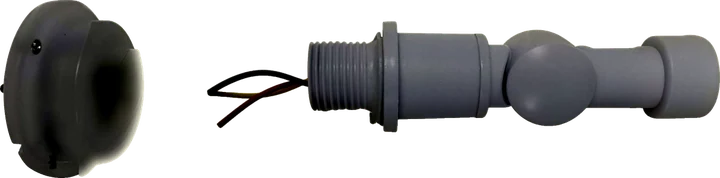

Plug-in sensors

Plug-in sensors

Low-voltage, sold separately

Fits
WK06
Order code
A · B · C · D
Emergency driver

Emergency driver

Sold separately

Fits
WK06

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1ProductWK06LED wall pack
2Power120W120W = 120/100/80 W, or 120/100/80/60/40 W
3High lumensHHigh lumens
4Input voltagexxBlank = 120-277 Vac · MV = 120-347 Vac · HV = 277-480 Vac
5CCTTCPTunable CCT and power: 3000 K · 4000 K · 5000 K
6ControlYA PIR sensor (infrared) · B MS sensor (occupancy) · C BRT sensor (occupancy + bluetooth) · D PHB sensor (infrared bluetooth) · F photocell · blank no sensor

Documents and downloads

ModelSpec sheet
WK06-120W-H-TCPSpec sheetPDF · 1.8 MB

IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Drawing · TOP VIEW2 rows
Drawing calloutPublished spec sheet
TOP VIEW10.73 in [272.5 mm]
TOP VIEW10.51 in [267 mm]
Drawing · SIDE VIEW1 row
Drawing calloutPublished spec sheet
SIDE VIEW6.46 in [164 mm]
Packing · published spec sheet1 row
ModelOuter box (L × W × H)Qty / cartonNet weightGross weight
120 / 100 / 80 WL11.22 × W10.98 × H7.05 in [L285 × W279 × H179 mm]1 pc/ctn5.51 lb [2.50 kg]6.83 lb [3.10 kg]
Published spec sheet · specification3 rows
PropertyPublished spec sheet
Driver efficiency> 90%
Dimming power supplies120-277 V / 0-10 V and 120-347 V / 277-480 V, 0-10 V
Included hardwareScrews · 4 PCS; Wire nuts · 5 PCS; Foam gasket · 1 PC
Published spec sheet · specification2 rows
PropertyPublished spec sheet
Wattage120 / 100 / 80 W tunable, or 120 / 100 / 80 / 60 / 40 W tunable
Adjustable angle0 to 90°
Photometrics · 120 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)116.6
C90/270 (deg)99.0
Average beam angle (50%)107.8 DEG
Cone angle99.00 deg
Flux out11121 lm
Mounting height33'(10.0m)
MH=1m4900 · 4300 · 3700 · 3100 · 2500 · 1800 · 620 · 310 · 180 · 62.0
Photometrics · 120 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
3.048 m268.3, 727.4 lx713.70 cm
3.658 m186.3, 505.1 lx856.44 cm
4.877 m104.8, 284.1 lx1141.92 cm
6.096 m67.07, 181.8 lx1427.41 cm
9.144 m29.81, 80.82 lx2141.11 cm
10.67 m21.90, 59.38 lx2497.96 cm
12.19 m16.77, 45.46 lx2854.81 cm
13.72 m13.25, 35.92 lx3211.66 cm
15.24 m10.73, 29.09 lx3568.51 cm
16.76 m8.869, 24.05 lx3925.37 cm
Photometrics · 120 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%2.026 lx0.1882 fc
5%3.377 lx0.3137 fc
10%6.754 lx0.6275 fc
30%20.26 lx1.882 fc
50%33.77 lx3.137 fc
Photometrics · 80 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)115.1
C90/270 (deg)100.3
Average beam angle (50%)107.7 DEG
Cone angle100.39 deg
Flux out7916 lm
Mounting height33'(10.0m)
MH=1m3400 · 3000 · 2600 · 2100 · 1700 · 1300 · 430 · 210 · 130 · 43.0
Photometrics · 80 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
3.048 m177.8, 502.8 lx731.49 cm
3.658 m123.5, 349.2 lx877.79 cm
4.877 m69.47, 196.4 lx1170.39 cm
6.096 m44.46, 125.7 lx1462.98 cm
9.144 m19.76, 55.87 lx2194.48 cm
10.67 m14.52, 41.04 lx2560.22 cm
12.19 m11.12, 31.42 lx2925.97 cm
13.72 m8.783, 24.83 lx3291.71 cm
15.24 m7.114, 20.11 lx3657.46 cm
16.76 m5.879, 16.62 lx4023.21 cm
Photometrics · 80 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%1.387 lx0.1289 fc
5%2.312 lx0.2148 fc
10%4.625 lx0.4297 fc
30%13.87 lx1.289 fc
50%23.12 lx2.148 fc
Photometrics · 60 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)113.9
C90/270 (deg)95.1
Average beam angle (50%)104.5 DEG
Cone angle82.59 deg
Flux out4628 lm
Mounting height33'(10.0m)
MH=1m2600 · 2200 · 1900 · 1600 · 1300 · 960 · 320 · 160 · 96.0 · 32.0
Photometrics · 60 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
3.048 m195.6, 348.1 lx535.49 cm
3.658 m135.8, 241.7 lx642.59 cm
4.877 m76.41, 136.0 lx856.79 cm
6.096 m48.90, 87.02 lx1070.99 cm
9.144 m21.73, 38.67 lx1606.48 cm
10.67 m15.97, 28.41 lx1874.23 cm
12.19 m12.23, 21.75 lx2141.97 cm
13.72 m9.659, 17.19 lx2409.72 cm
15.24 m7.824, 13.92 lx2677.47 cm
16.76 m6.466, 11.51 lx2945.21 cm
Photometrics · 60 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.9639 lx0.08955 fc
5%1.607 lx0.1493 fc
10%3.213 lx0.2985 fc
30%9.639 lx0.8955 fc
50%16.07 lx1.493 fc
Photometrics · 40 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)115.3
C90/270 (deg)99.0
Average beam angle (50%)107.1 DEG
Cone angle99.02 deg
Flux out3617 lm
Mounting height33'(10.0m)
MH=1m1500 · 1300 · 1100 · 960 · 760 · 570 · 190 · 96.0 · 57.0 · 19.0
Photometrics · 40 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1 m810.7, 1952 lx234.27 cm
2 m202.7, 487.9 lx468.55 cm
3 m90.08, 216.9 lx702.82 cm
4 m50.67, 122.0 lx937.09 cm
5 m32.43, 78.07 lx1171.36 cm
6 m22.52, 54.22 lx1405.64 cm
7 m16.54, 39.83 lx1639.91 cm
8 m12.67, 30.50 lx1874.18 cm
9 m10.01, 24.10 lx2108.46 cm
10 m8.107, 19.52 lx2342.73 cm
Photometrics · 40 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.5855 lx0.0544 fc
5%0.9759 lx0.09066 fc
10%1.952 lx0.1813 fc
30%5.855 lx0.544 fc
50%9.759 lx0.9066 fc
