Recessed Light Collection

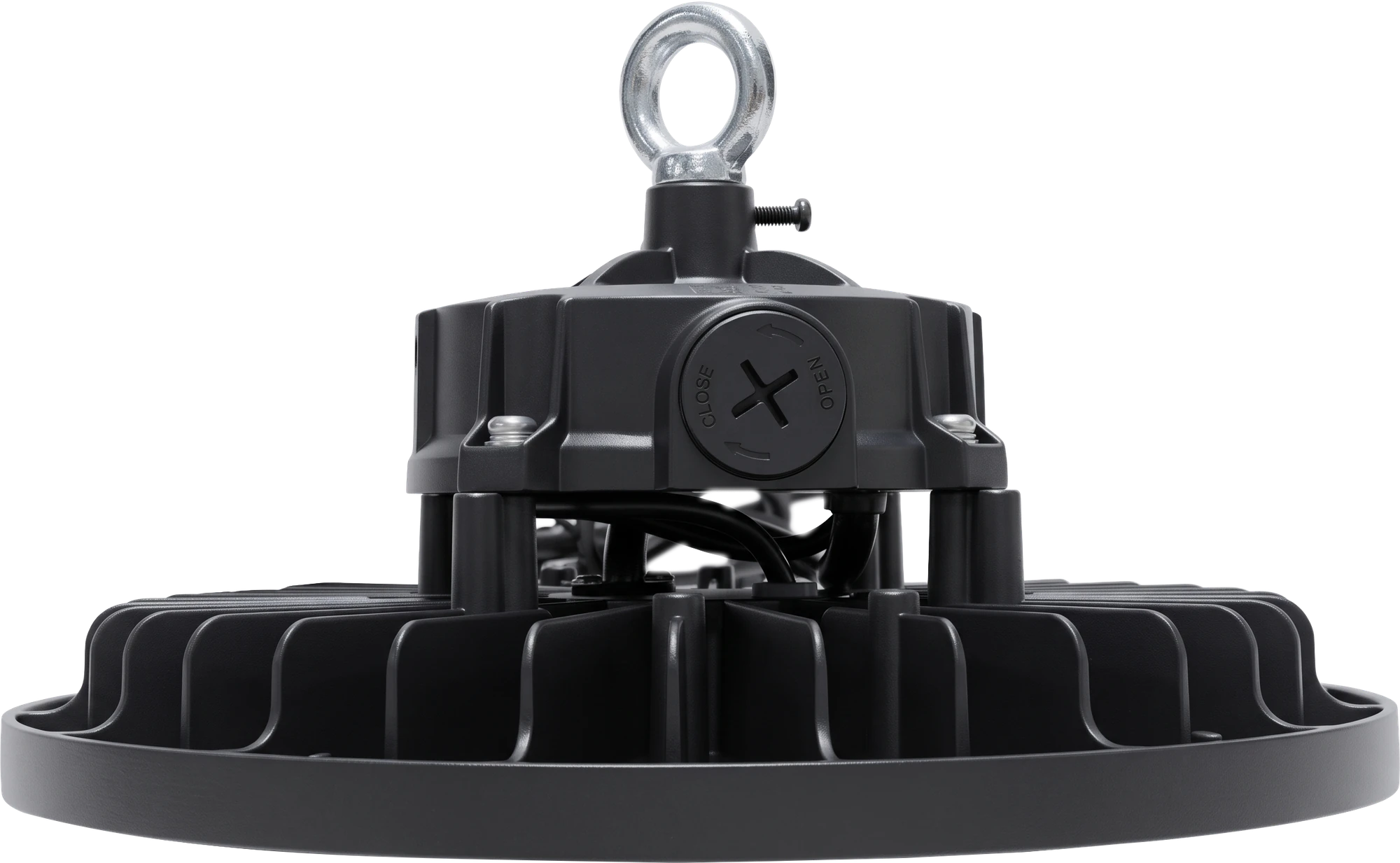

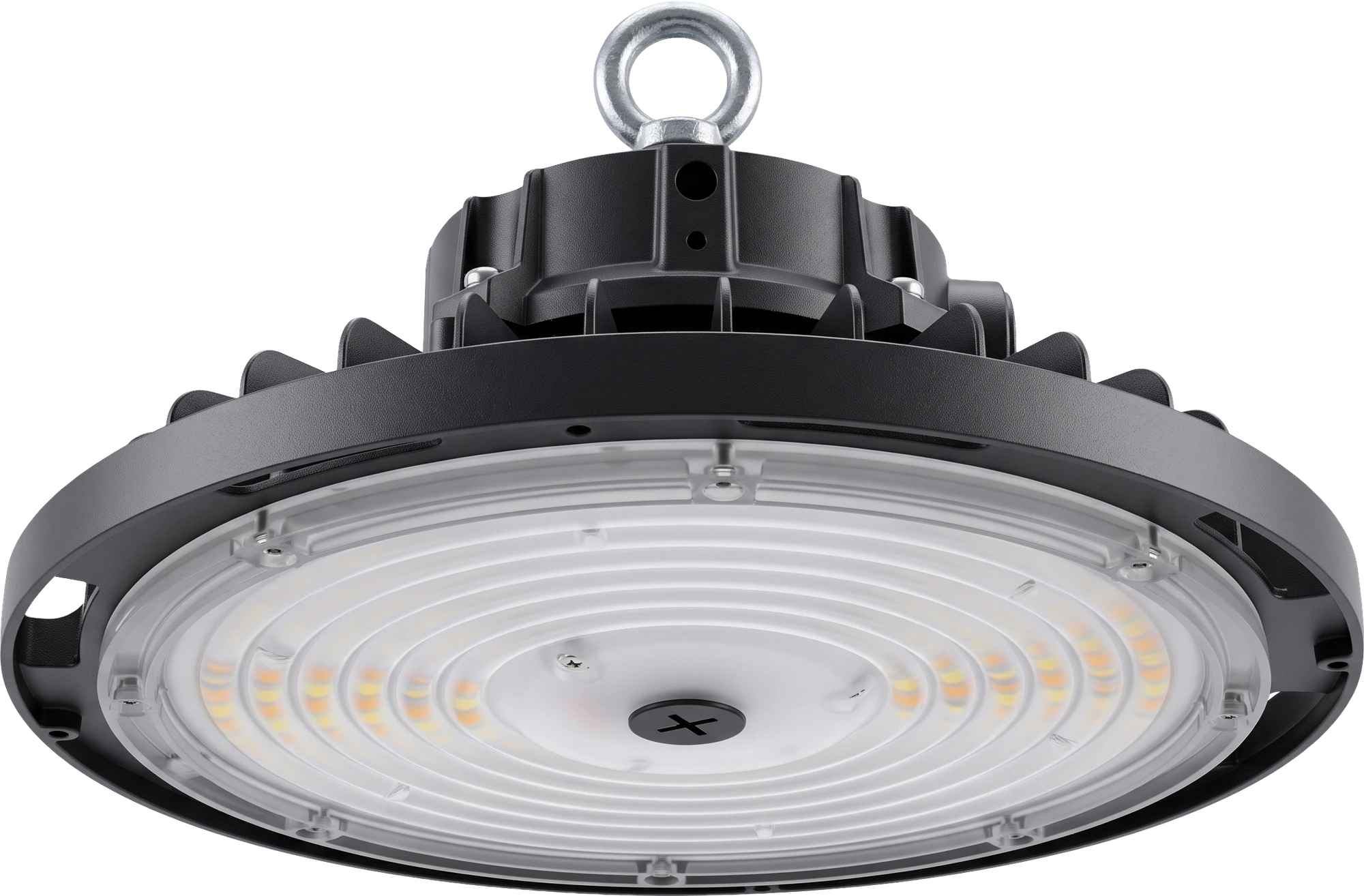

UFO High Bay
Round high bays for open-plan warehouse, manufacturing, and gymnasium ceilings.
SS-HB
At a glance
- Wattage
- 60/80/100W · 100/120/150W · 100/150/200W · 150/200/240W
- CCT
- 3500/4000/5000K
- Lumens
- Max 16000 · Max 24000 · Max 32000 · Max 38400
- Ingress rating
- Issued per SKU on request
- Listings
- Issued per SKU on request
- Country of origin
- Determined per SKU
Ratings and listings are stated on the document for the specific SKU, not summarised here — a summary is not something a reviewer can file.
Family variants
| UHB26-060/080/100CDM-3050L13J | 60/80/100W | 3500/4000/5000K | Max 16000 | 160 lm/W | AC120-277V | L10.2 x W4.6 inch | 5 years |
| UHB26-100/120/150CDM-3050L13J | 100/120/150W | 3500/4000/5000K | Max 24000 | 160 lm/W | AC120-277V | L10.2 x W4.6 inch | 5 years |
| UHB26-100/150/200CDM-3050L13J | 100/150/200W | 3500/4000/5000K | Max 32000 | 160 lm/W | AC120-277V | L12.2 x W5.2 inch | 5 years |
| UHB26-150/200/240CDM-3050L13J | 150/200/240W | 3500/4000/5000K | Max 38400 | 160 lm/W | AC120-277V | L12.2 x W5.2 inch | 5 years |
Photometric data and documents
Photometric files and cutsheets are issued per SKU. They are not yet posted for download on this page; a request returns the file directly.
Product details
- CRI
- CRI>80
- LM-79 / LM-80 report
- Details in preparation
- Beam angle
- Beam angle 90°
- Light distribution
- Details in preparation
- THD
- THD<20%
- BUG rating
- Details in preparation
- Operating temperature range
- Details in preparation
- Driver brand
- Details in preparation
- LED chip brand
- Details in preparation
- California Title 24 JA8
- Details in preparation
- Mounting
- Stated on the SKU document
- Warranty
- 5 years
For complete photometric and component data on a specific SKU, write to zoneled@allmax.com.tw — a US contact replies within 24 hours with the documents.
Typical applications
- Warehouses
- Manufacturing
- Gymnasiums
- Big-box retail
Certification and country of origin
Listing certificates, test reports, and the country-of-origin determination are held per SKU and per manufacturing lot, and are released with the quotation. This page does not summarise them, because a summary is not the document a compliance reviewer files.
Read how we testAlso specified alongside
Next step
Ask for the documents on a specific UFO High Bay.
A US contact replies within 24 hours — with pricing and the documentation.
