Tunable LED Garage Canopy Light
Tunable LED Garage Canopy Light in two models, 50-200 W and up to 29,000 lm, for parking garages, covered parking, loading bays and drive-throughs.
2
Models
50-200 W
Power
29,000 lm
Light output, up to
145 lm/W
Efficacy, up to

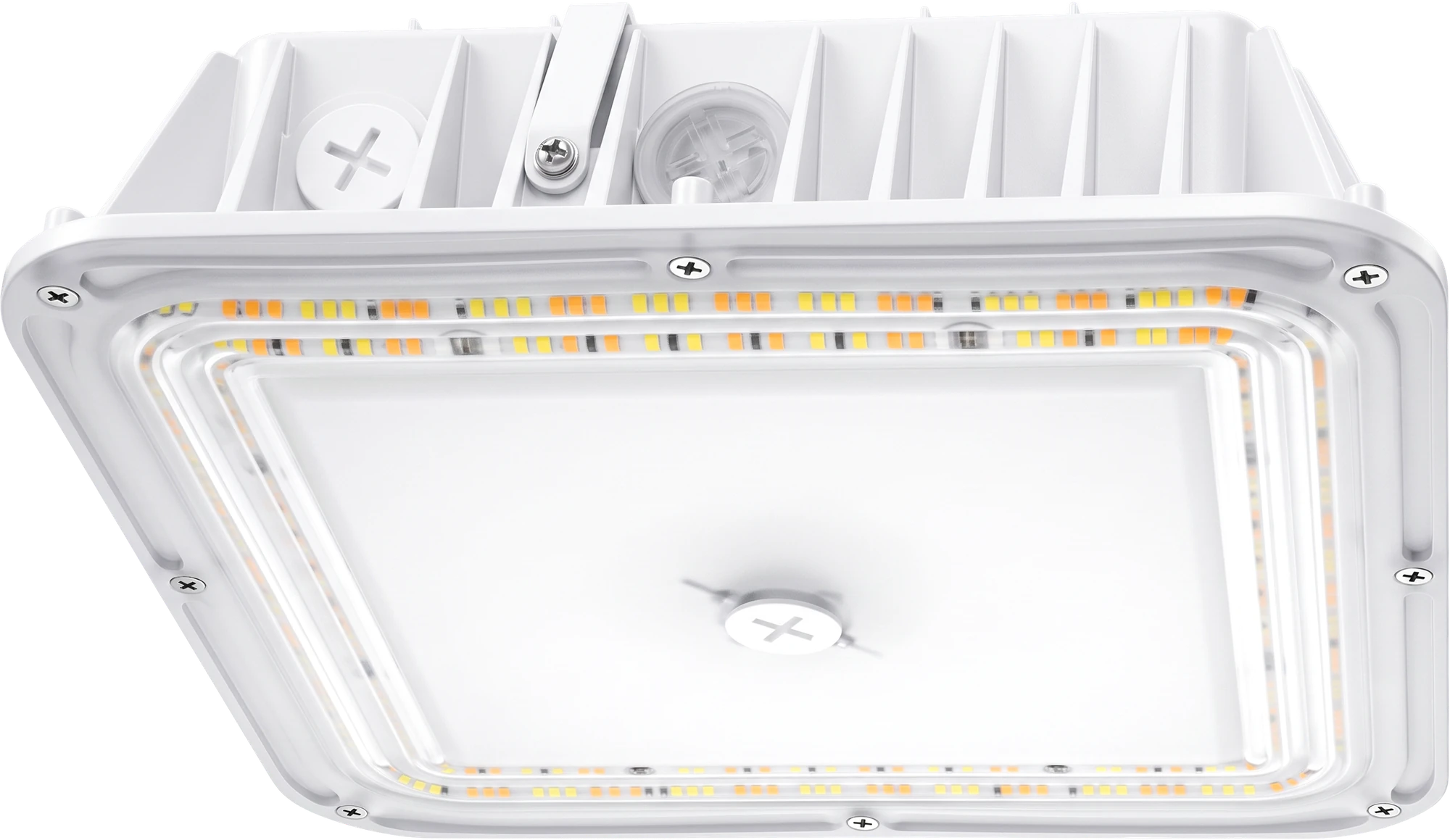

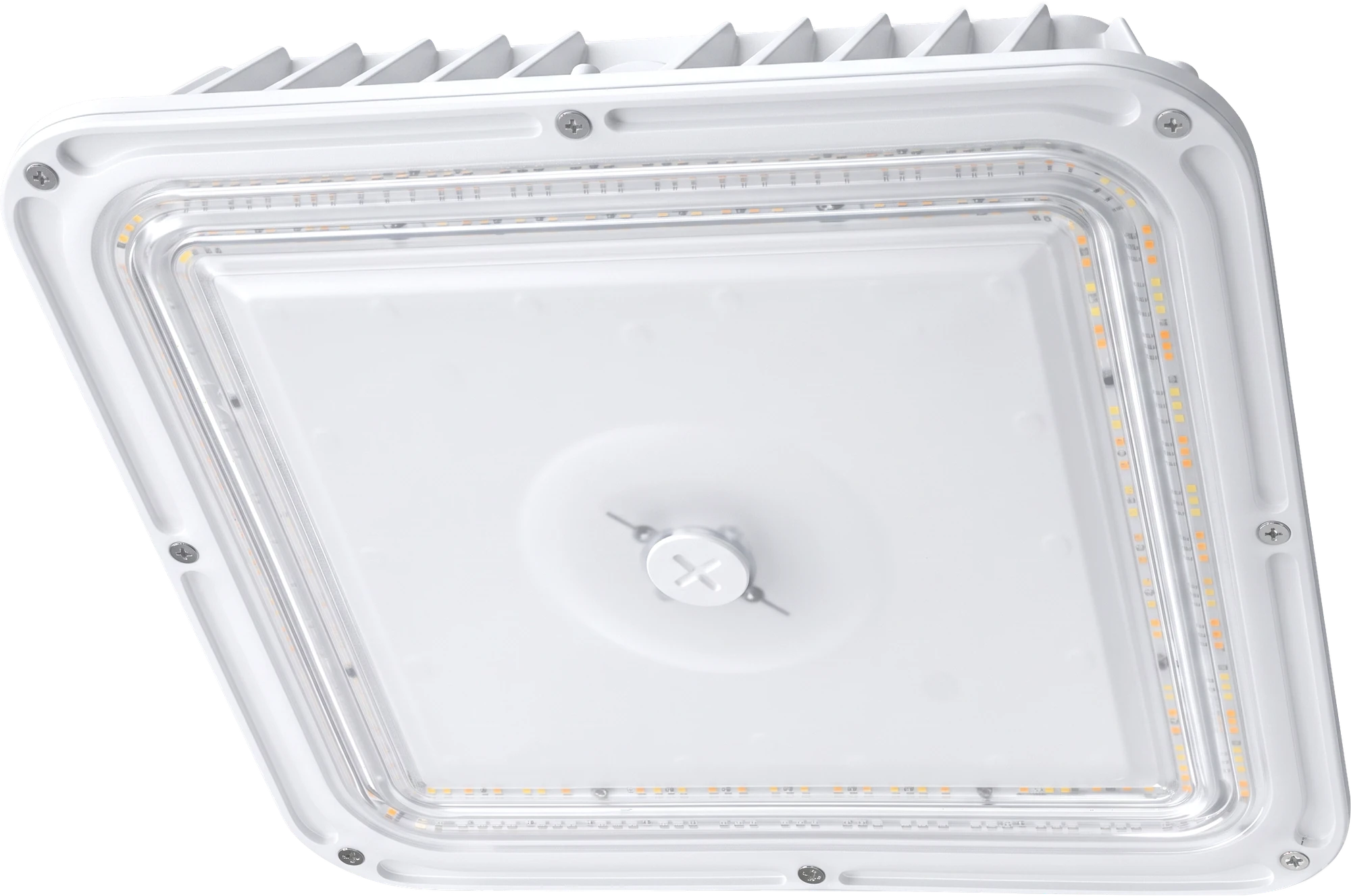

Product views
Specification, features and options
- Beam angle
- 130°
- Distribution
- Parking garage distribution
- THD
- < 20%
Models and ratings
Maximum lumens
CSA03-050/070/080U3050
- Lumens
- 7,200 / 10,000 / 11,600 lm
- Efficacy
- 145 lm/W
- Dimensions
- L 10 × W 10 × H 3 in
Settable 50 / 70 / 80 W
CSA03-100/150/200U3050
- Lumens
- 14,500 / 21,700 / 29,000 lm
- Efficacy
- 145 lm/W
- Dimensions
- L 18 × W 18 × H 3.9 in
Settable 100 / 150 / 200 W
- Every model
- CCT (selectable) 3000 / 4000 / 5000KCRI > 80Input voltage AC 120–277 V or 347 VEfficacy 145 lm/WListings FCC · cULus · DLC Premium
| Model | Wattage (selectable) | Lumens | Dimensions |
|---|---|---|---|
| CSA03-050/070/080U3050 | 50 / 70 / 80 W | 7,200 / 10,000 / 11,600 lm | L 10 × W 10 × H 3 in |
| CSA03-100/150/200U3050 | 100 / 150 / 200 W | 14,500 / 21,700 / 29,000 lm | L 18 × W 18 × H 3.9 in |
Documents and downloads
Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
From the published spec sheet
Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.
Published spec sheet · specification11 rows
| Property | Published spec sheet |
|---|---|
| Construction | Die-casting aluminum construction. |
| Lens | UV stabilized polycarbonate lens. |
| Sensor port | Plug-and-play sensor port. |
| Daylight sensor | Built-in daylight sensor with disable switch. |
| Working temperature | -40°C to 50°C |
| Working temperature · built-in emergency series | 0°C to 45°C |
| Wireless controls | Zigbee, Bluetooth, Wi-Fi (Optional). |
| Surge protection | L-N:4KV, L/N-PE:6KV or L-N:6KV, L/N-PE:6KV |
| Wattage tolerance | ±10% |
| Lumen tolerance | ±10% |
| Accessories | Microwave sensor · Infrared sensor · Emergency driver. |
