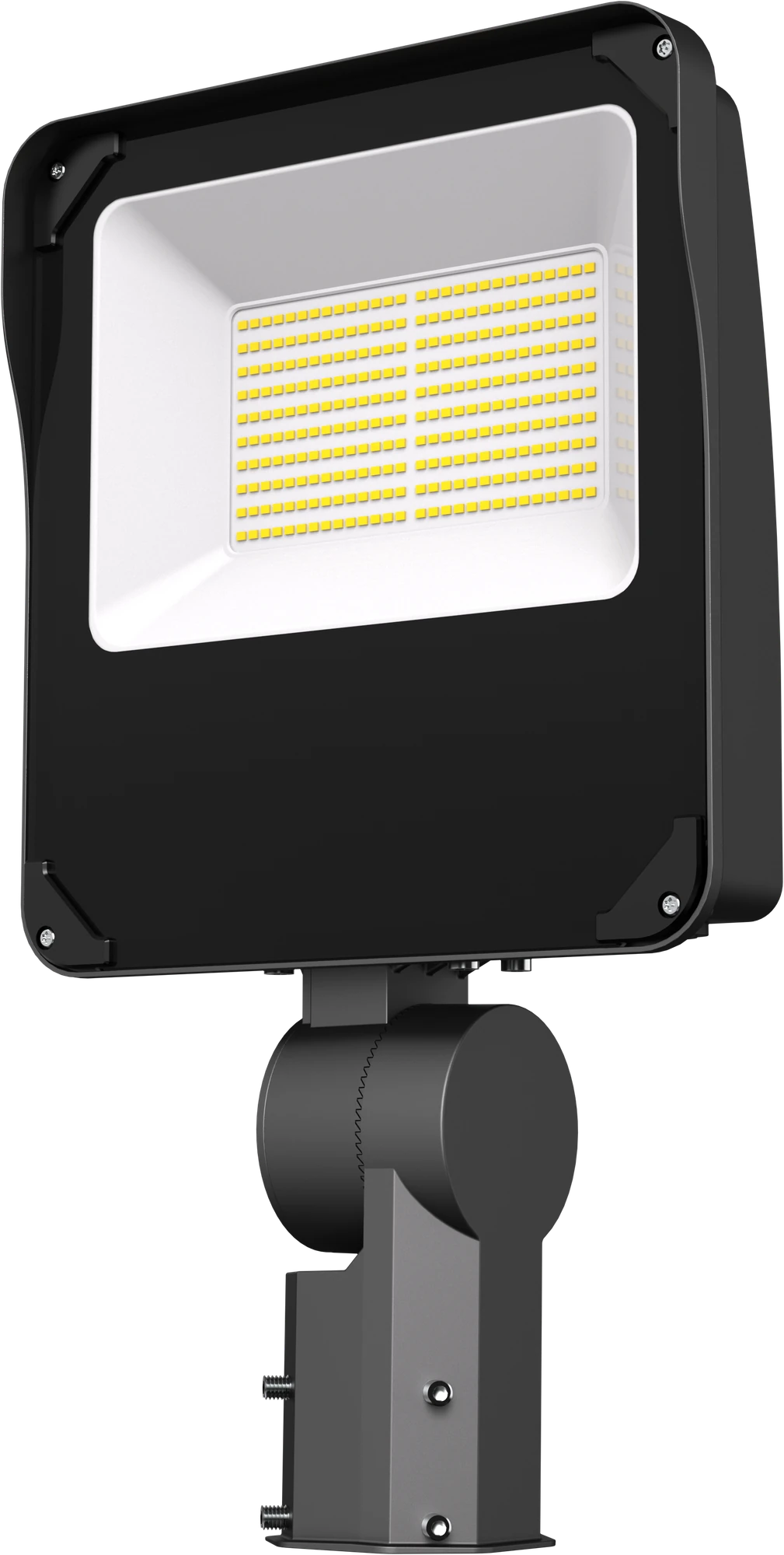

LED Flood Light 90/120 W
LED Flood Light 90/120 W in two models, up to 19,000 lm, for courtyards, driveways, buildings and billboards.
2
Models
90-120 W
Power
19,000 lm
Light output, up to
161 lm/W
Efficacy, up to
Specification, features and options
- Wattage level
- 4 levels selectable (100% / 80% / 60% / 40%)
- Distribution
- 7H × 7V
- THD
- < 20%
- Dimming
- 0–10 V
- Life span
- 50,000 hrs
- Mounting
- Slip-fitter mount
- Operating temperature
- -40°C to +40°C (-40°F to +104°F)
Models and ratings
Maximum lumens
90 W
- Lumens (3000 / 4000 / 5000K)
- 13,400 / 14,500 / 13,500 lm
- Efficacy (3000 / 4000 / 5000K)
- 149 / 161 / 150 lm/W
- Dimensions
- L 11.3 × W 10.4 × H 3.3 in
- BUG rating
- B3 U3 G3
90 W
120 W
- Lumens (3000 / 4000 / 5000K)
- 17,500 / 19,000 / 18,000 lm
- Efficacy (3000 / 4000 / 5000K)
- 146 / 158 / 150 lm/W
- Dimensions
- L 11.3 × W 10.4 × H 3.3 in
- BUG rating
- B4 U3 G3
120 W
- Every model
- CCT (selectable) 3000 / 4000 / 5000KCRI > 70Input voltage AC 120–277 VDimensions L 11.3 × W 10.4 × H 3.3 in
| Variant | Wattage | Lumens (3000 / 4000 / 5000K) | Efficacy (3000 / 4000 / 5000K) | BUG rating |
|---|---|---|---|---|
| 90 W | 90 W | 13,400 / 14,500 / 13,500 lm | 149 / 161 / 150 lm/W | B3 U3 G3 |
| 120 W | 120 W | 17,500 / 19,000 / 18,000 lm | 146 / 158 / 150 lm/W | B4 U3 G3 |
The catalogue identifies these variants by wattage and mounting, without orderable model codes.
Output data, every setting
Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.
90 W · 7Hx7V
| Setting | System watts | 3000 K | 4000 K | 5000 K |
|---|---|---|---|---|
| LV1 | 90 W | 13,400 lm149 lm/W | 14,500 lm161 lm/W | 13,500 lm150 lm/W |
| LV2 | 72 W | 11,100 lm154 lm/W | 12,000 lm167 lm/W | 11,200 lm156 lm/W |
| LV3 | 54 W | 8,600 lm159 lm/W | 9,200 lm170 lm/W | 8,600 lm159 lm/W |
| LV4 | 36 W | 5,900 lm164 lm/W | 6,300 lm175 lm/W | 5,950 lm165 lm/W |
120 W · 7Hx7V
| Setting | System watts | 3000 K | 4000 K | 5000 K |
|---|---|---|---|---|
| LV1 | 120 W | 17,500 lm146 lm/W | 19,000 lm158 lm/W | 18,000 lm150 lm/W |
| LV2 | 96 W | 14,500 lm151 lm/W | 15,600 lm163 lm/W | 14,900 lm155 lm/W |
| LV3 | 72 W | 11,200 lm156 lm/W | 12,000 lm167 lm/W | 11,500 lm160 lm/W |
| LV4 | 48 W | 7,700 lm160 lm/W | 8,300 lm173 lm/W | 7,900 lm165 lm/W |
Electrical data
Drivers and input currentPublished spec sheet · input current in amps
| Nominal Power | Driver Current | Drivers | 120 V | 208 V | 240 V | 277 V |
|---|---|---|---|---|---|---|
| 90 W | 730 mA | 1 | 0.75 A | 0.43 A | 0.38 A | 0.32 A |
| 120 W | 960 mA | 1 | 1.00 A | 0.58 A | 0.50 A | 0.43 A |
Options and accessories
Photocell
For security and energy saving
- Order code
- P
Wire guard
Optional accessory
Knuckle assembly supporter
Optional accessory
Ordering guide
Catalog number · left to right
| Position | Segment | Code | Meaning |
|---|---|---|---|
| 1 | Series | MFD11 | Flood light series |
| 2 | Wattage | 15W · 27W · 40W · 65W · 90W · 120W | 15 – 120 watts |
| 3 | Voltage | 27V | 120–277 V |
| 4 | CCT | DDK | 3000 K / 4000 K / 5000 K, field-selectable |
| 5 | Finish | D · B · W | dark bronze · black · white |
| 6 | Photocell | P | with photocell · blank = without photocell |
| 7 | Mounting | TR · KN · YK · SP | trunnion · knuckle · yoke · slipfitter |
| 8 | Nema | B77 | 7Hx7V |
| 9 | Internal code | blank | alphanumeric |
Documents and downloads
| Model | Spec sheet |
|---|---|
| All 2 models | Spec sheetPDF · 1.4 MB |
One spec sheet covers 90 W, 120 W. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
From the published spec sheet
Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.
Drawing · 90 W · 120 W · SLIPFITTER4 rows
| Drawing callout | Published spec sheet |
|---|---|
| 90 W · 120 W · SLIPFITTER | 18.33 in [465.51 mm] |
| 90 W · 120 W · SLIPFITTER | 10.49 in [266.41 mm] |
| 90 W · 120 W · SLIPFITTER | 3.31 in [84.00 mm] |
| 90 W · 120 W · SLIPFITTER | 11.28 in [286.41 mm] |
Drawing · 90 W · 120 W · YOKE11 rows
| Drawing callout | Published spec sheet |
|---|---|
| 90 W · 120 W · YOKE | 15.34 in [389.71 mm] |
| 90 W · 120 W · YOKE | 11.28 in [286.41 mm] |
| 90 W · 120 W · YOKE | 10.49 in [266.41 mm] |
| 90 W · 120 W · YOKE | 3.31 in [84.00 mm] |
| 90 W · 120 W · YOKE | 5.43 in [138.00 mm] |
| 90 W · 120 W · YOKE | 3.74 in [95.00 mm] |
| 90 W · 120 W · YOKE | 2.01 in [51.00 mm] |
| 90 W · 120 W · YOKE | 2.36 in [60.00 mm] |
| 90 W · 120 W · YOKE | Ø0.87 in [Ø22.00 mm] |
| 90 W · 120 W · YOKE | Ø0.43 in [Ø11.00 mm] |
| 90 W · 120 W · YOKE | Ø0.55 in [Ø14.00 mm] |
Published spec sheet · specification4 rows
| Property | Published spec sheet |
|---|---|
| Dimming | 0–10 V driver, 10%–100%. |
| Power factor | > 0.9 |
| Vibration | 1.5 G vibration, ANSI C136.31 |
| Test ambient | 25 °C (±5 °C) |
