LED Flood Light 15–65 W

LED Flood Light 15–65 W in four models, up to 9,700 lm, for courtyards, driveways, buildings and billboards.

Request a quoteDownload spec sheet · PDF

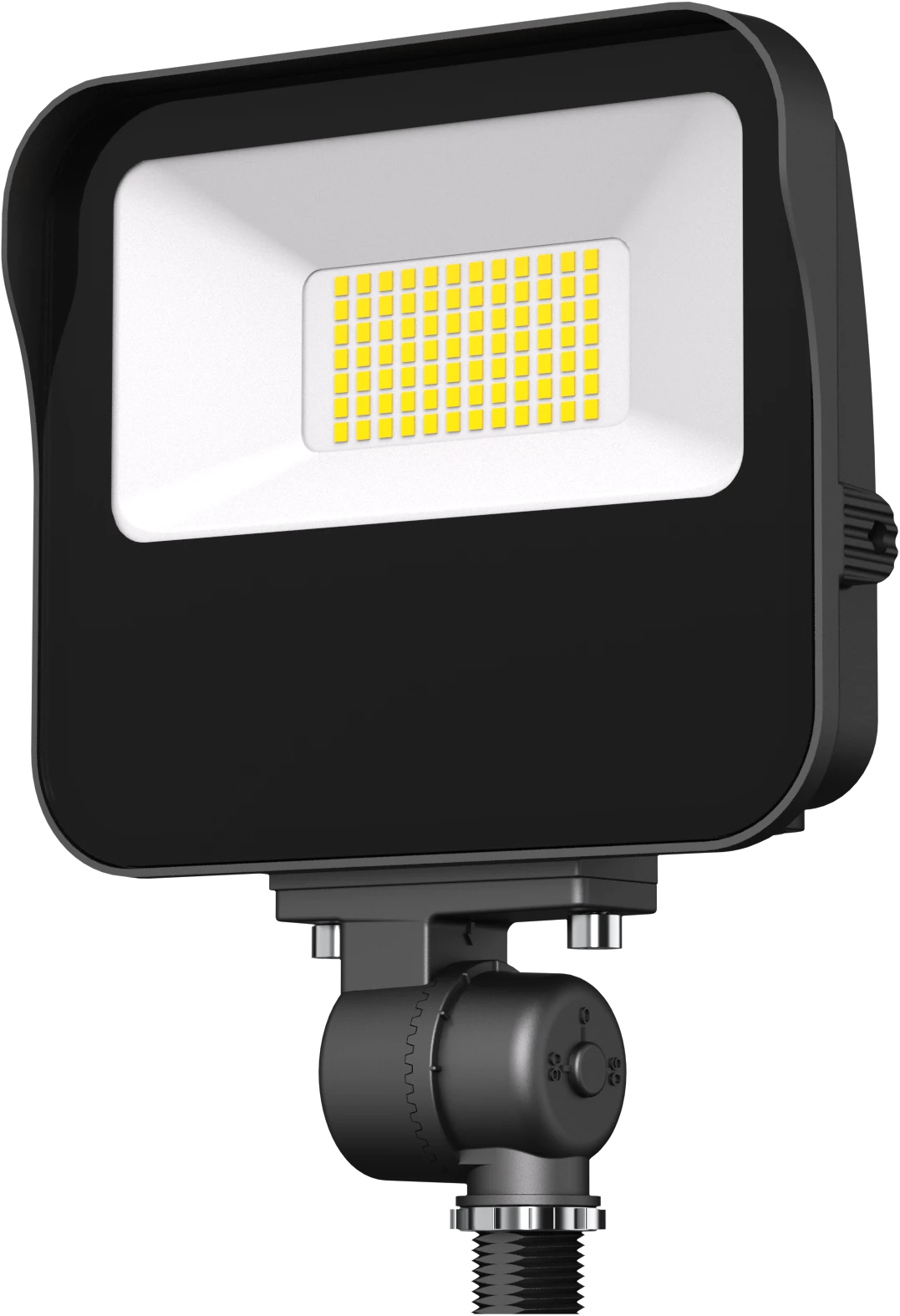

MFD11 15 / 27 W — knuckle mount

4

Models

15-65 W

Power

9,700 lm

Light output, up to

150 lm/W

Efficacy, up to

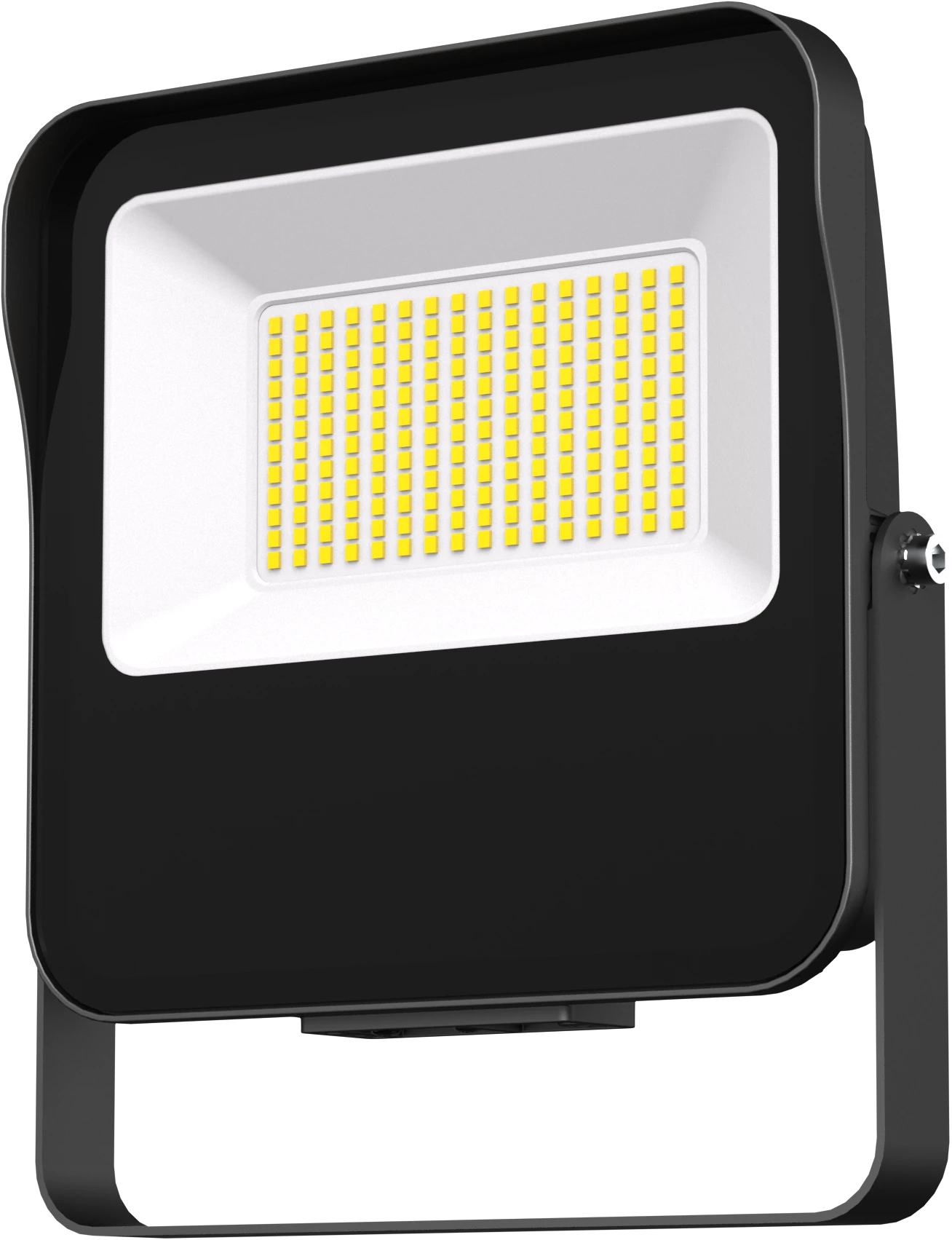

Product views

Specification, features and options

Distribution
7H × 7V
Dimming
0–10 V
Life span
50,000 hrs
BUG rating
B1 U2 G1
THD
< 20%
Operating temperature
-40°C to 40°C (-40°F to 104°F)

Models and ratings

Maximum lumens

MFD11-15W

Lumens (3000 / 4000 / 5000K)
2,100 / 2,250 / 2,150 lm

15 W

Efficacy (3000 / 4000 / 5000K)
140 / 150 / 143 lm/W
Dimensions
L 5.8 × W 6.8 × H 1.9 in

MFD11-27W

Lumens (3000 / 4000 / 5000K)
3,800 / 4,050 / 3,900 lm

27 W

Efficacy (3000 / 4000 / 5000K)
141 / 150 / 144 lm/W
Dimensions
L 5.8 × W 6.8 × H 1.9 in

MFD11-40W

Lumens (3000 / 4000 / 5000K)
5,700 / 6,000 / 5,800 lm

40 W

Efficacy (3000 / 4000 / 5000K)
143 / 150 / 145 lm/W
Dimensions
L 7.7 × W 8.1 × H 2.1 in

MFD11-65W

Lumens (3000 / 4000 / 5000K)
9,200 / 9,700 / 9,400 lm

65 W

Efficacy (3000 / 4000 / 5000K)
142 / 149 / 145 lm/W
Dimensions
L 7.7 × W 8.1 × H 2.1 in
Every model
CCT (selectable) 3000 / 4000 / 5000KCRI > 70Input voltage AC 120–277 V
ModelWattageLumens (3000 / 4000 / 5000K)DimensionsEfficacy (3000 / 4000 / 5000K)
MFD11-15W15 W2,100 / 2,250 / 2,150 lmL 5.8 × W 6.8 × H 1.9 in140 / 150 / 143 lm/W
MFD11-27W27 W3,800 / 4,050 / 3,900 lmL 5.8 × W 6.8 × H 1.9 in141 / 150 / 144 lm/W
MFD11-40W40 W5,700 / 6,000 / 5,800 lmL 7.7 × W 8.1 × H 2.1 in143 / 150 / 145 lm/W
MFD11-65W65 W9,200 / 9,700 / 9,400 lmL 7.7 × W 8.1 × H 2.1 in142 / 149 / 145 lm/W

Output data, every setting

Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.

15 W · 7Hx7V

SettingSystem watts3000 K4000 K5000 K
LV115 W2,100 lm140 lm/W2,250 lm150 lm/W2,150 lm143 lm/W
LV212 W1,750 lm146 lm/W1,850 lm154 lm/W1,780 lm148 lm/W
LV39 W1,350 lm150 lm/W1,450 lm161 lm/W1,400 lm156 lm/W
LV46 W930 lm150 lm/W1,000 lm167 lm/W950 lm158 lm/W

27 W · 7Hx7V

SettingSystem watts3000 K4000 K5000 K
LV127 W3,800 lm141 lm/W4,050 lm150 lm/W3,900 lm144 lm/W
LV222 W3,150 lm146 lm/W3,300 lm153 lm/W3,200 lm148 lm/W
LV316 W2,450 lm151 lm/W2,600 lm160 lm/W2,500 lm154 lm/W
LV411 W1,650 lm153 lm/W1,800 lm167 lm/W1,700 lm157 lm/W

40 W · 7Hx7V

SettingSystem watts3000 K4000 K5000 K
LV140 W5,700 lm143 lm/W6,000 lm150 lm/W5,800 lm145 lm/W
LV232 W4,700 lm147 lm/W4,950 lm155 lm/W4,800 lm150 lm/W
LV324 W3,700 lm154 lm/W3,900 lm163 lm/W3,750 lm156 lm/W
LV416 W2,500 lm156 lm/W2,700 lm169 lm/W2,550 lm159 lm/W

65 W · 7Hx7V

SettingSystem watts3000 K4000 K5000 K
LV165 W9,200 lm142 lm/W9,700 lm149 lm/W9,400 lm145 lm/W
LV252 W7,600 lm146 lm/W8,000 lm154 lm/W7,800 lm150 lm/W
LV339 W5,900 lm151 lm/W6,200 lm159 lm/W6,050 lm155 lm/W
LV426 W4,100 lm158 lm/W4,300 lm165 lm/W4,200 lm162 lm/W

Electrical data

Drivers and input currentPublished spec sheet · input current in amps

Nominal PowerDriver CurrentDrivers120 V208 V240 V277 V
15 W230 mA10.13 A0.07 A0.06 A0.05 A
27 W450 mA10.23 A0.13 A0.11 A0.10 A
40 W680 mA10.33 A0.19 A0.17 A0.14 A
65 W980 mA10.54 A0.31 A0.27 A0.23 A

Options and accessories

Photocell

Photocell

For security and energy saving

Order code
P
Wire guard

Wire guard

Optional accessory

Knuckle assembly supporter

Knuckle assembly supporter

Optional accessory

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1SeriesMFD11Flood light series
2Wattage15W · 27W · 40W · 65W · 90W · 120W15 – 120 watts
3Voltage27V120–277 V
4CCTDDK3000 K / 4000 K / 5000 K, field-selectable
5FinishD · B · Wdark bronze · black · white
6PhotocellPwith photocell · blank = without photocell
7MountingTR · KN · YK · SPtrunnion · knuckle · yoke · slipfitter
8NemaB777Hx7V
9Internal codeblankalphanumeric

Documents and downloads

ModelSpec sheet
All 4 modelsSpec sheetPDF · 1.4 MB

One spec sheet covers MFD11-15W, MFD11-27W, MFD11-40W, MFD11-65W. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Drawing · 15 W · 27 W · KNUCKLE3 rows
Drawing calloutPublished spec sheet
15 W · 27 W · KNUCKLE1.85 in [47.00 mm]
15 W · 27 W · KNUCKLE5.90 in [149.87 mm]
15 W · 27 W · KNUCKLE8.89 in [225.87 mm]
Drawing · 15 W · 27 W · TRUNNION7 rows
Drawing calloutPublished spec sheet
15 W · 27 W · TRUNNION1.85 in [47.00 mm]
15 W · 27 W · TRUNNION5.90 in [149.87 mm]
15 W · 27 W · TRUNNION7.18 in [182.37 mm]
15 W · 27 W · TRUNNION2.20 in [56.00 mm]
15 W · 27 W · TRUNNION4.57 in [116.00 mm]
15 W · 27 W · TRUNNIONØ0.47 in [Ø12.00 mm]
15 W · 27 W · TRUNNION0.35 in [9.00 mm]
Drawing · 40 W · 65 W · KNUCKLE4 rows
Drawing calloutPublished spec sheet
40 W · 65 W · KNUCKLE11.00 in [279.46 mm]
40 W · 65 W · KNUCKLE7.87 in [199.96 mm]
40 W · 65 W · KNUCKLE2.03 in [51.50 mm]
40 W · 65 W · KNUCKLE1.89 in [47.90 mm]
Drawing · 40 W · 65 W · TRUNNION7 rows
Drawing calloutPublished spec sheet
40 W · 65 W · TRUNNION9.49 in [240.96 mm]
40 W · 65 W · TRUNNION7.74 in [196.64 mm]
40 W · 65 W · TRUNNIONØ0.47 in [Ø12.00 mm]
40 W · 65 W · TRUNNION2.03 in [51.50 mm]
40 W · 65 W · TRUNNION0.35 in [9.00 mm]
40 W · 65 W · TRUNNION4.57 in [116.00 mm]
40 W · 65 W · TRUNNION2.20 in [56.00 mm]
Published spec sheet · specification4 rows
PropertyPublished spec sheet
Dimming0–10 V driver, 10%–100%.
Power factor> 0.9
Vibration1.5 G vibration, ANSI C136.31
Test ambient25 °C (±5 °C)
