4 models · Explosion Proof
Explosion-Proof High Bay 30–80 W
Explosion-Proof High Bay 30–80 W in four models, up to 10,400 lm, for oil and gas facilities, chemical plants, paint and spray booths and grain and fuel handling.
4
Models
30-80 W
Power
10,400 lm
Light output, up to
130 lm/W
Efficacy, up to
Product views
Specification, features and options
- Power factor
- 0.97
- Housing material
- Die-cast aluminum (ADC12)
- Lens material
- Tempered glass
- Conduit entry
- 3/4"-14 NPT
- Operating temperature
- -40°C to +50°C (-40°F to 122°F)
Models and ratings
Maximum lumens

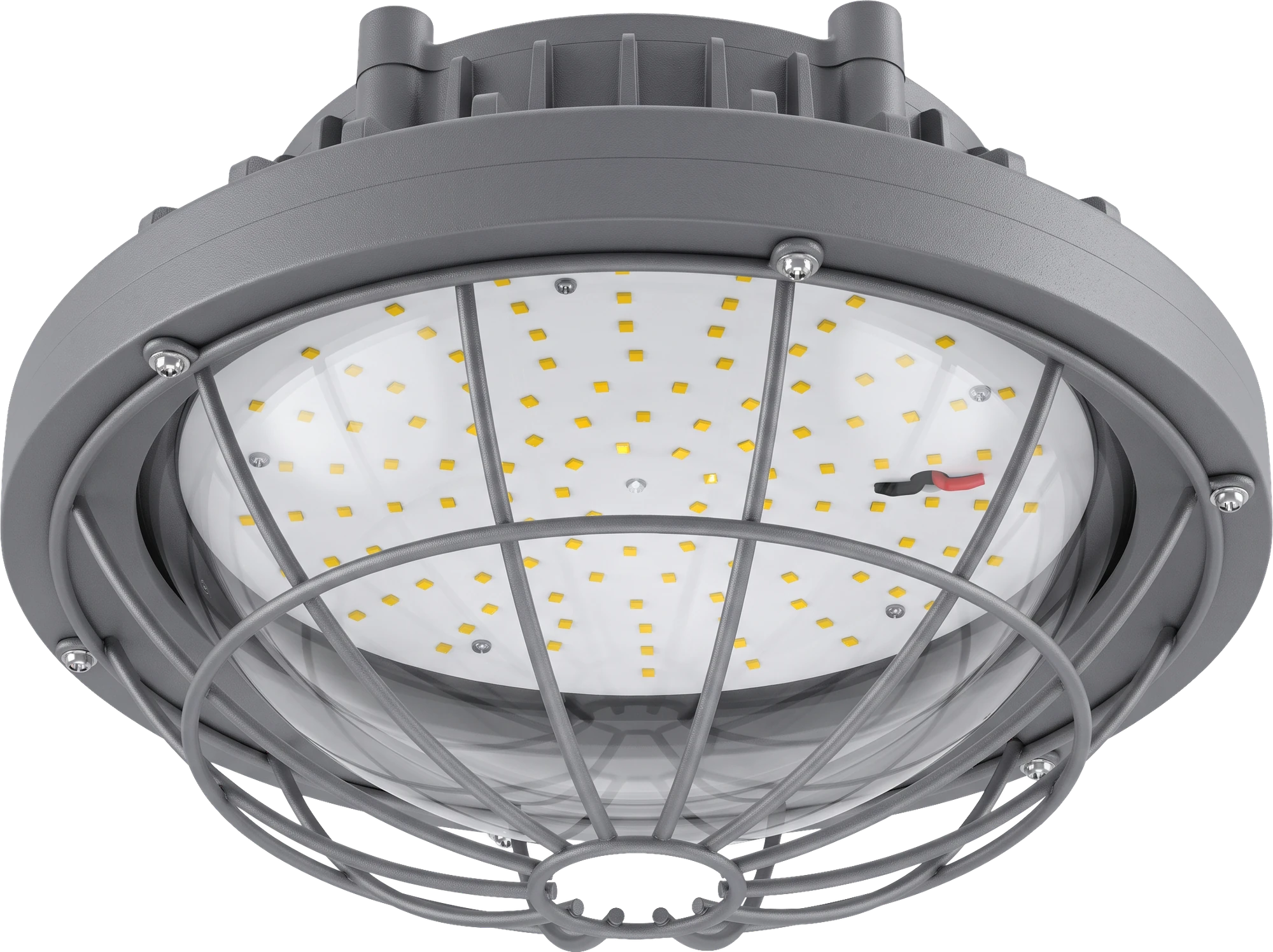

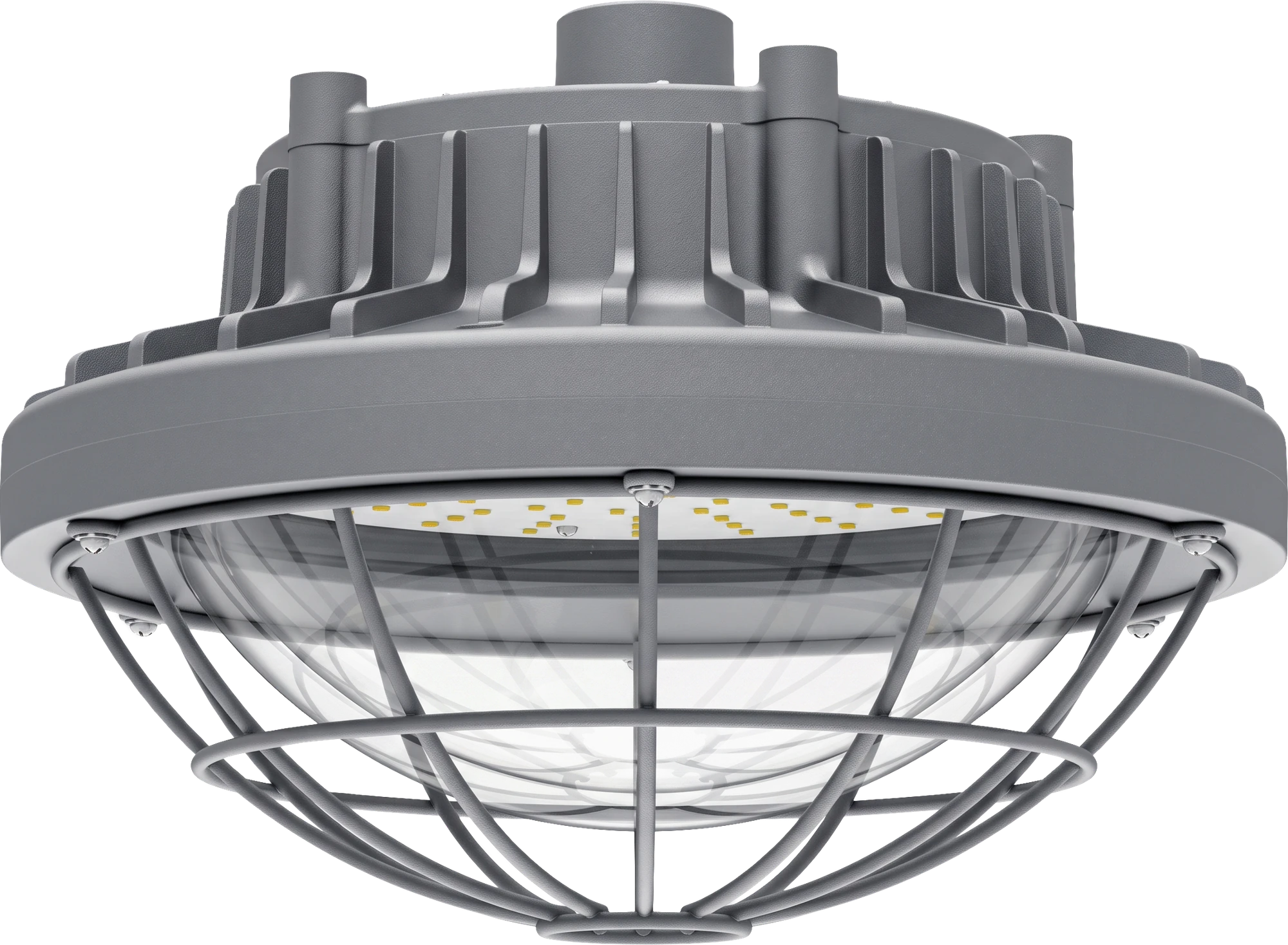

30 W
- Lumen output
- 3,900 lm
- Efficacy
- 130 lm/W
- Dimensions
- 200 × 157 mm
30 W
40 W
- Lumen output
- 5,200 lm
- Efficacy
- 130 lm/W
- Dimensions
- 200 × 157 mm
40 W

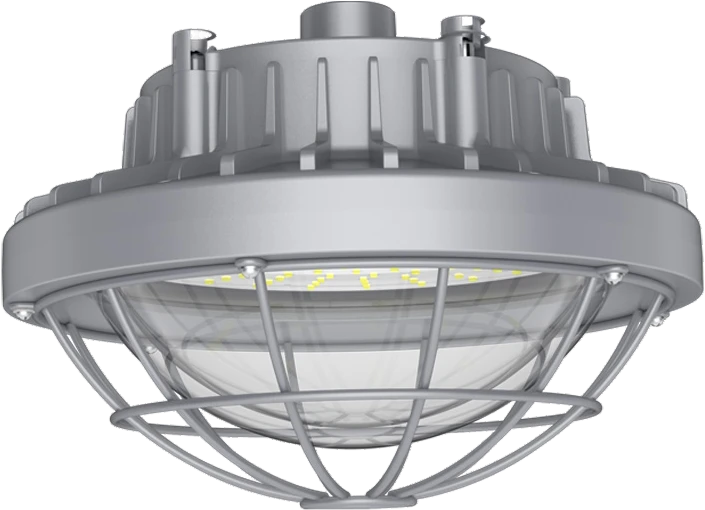

60 W
- Lumen output
- 7,800 lm
- Efficacy
- 130 lm/W
- Dimensions
- 300 × 204 mm
60 W
80 W
- Lumen output
- 10,400 lm
- Efficacy
- 130 lm/W
- Dimensions
- 300 × 204 mm
80 W
- Every model
- CCT 3000 / 4000 / 5000 / 5700 / 6500KInput voltage AC 100–240 V / 277 V, 50/60 HzEfficacy 130 lm/W
| Variant | Wattage | Lumen output | Dimensions | Weight | Mounting |
|---|---|---|---|---|---|
| 30 W | 30 W | 3,900 lm | 200 × 157 mm | 3.0 kg | Ceiling / wall mount, 0° to ±90° adjustable |
| 40 W | 40 W | 5,200 lm | 200 × 157 mm | 3.0 kg | Ceiling / wall mount, 0° to ±90° adjustable |
| 60 W | 60 W | 7,800 lm | 300 × 204 mm | 7.0 kg | Ceiling / pole / wall mount, 0° to ±90° adjustable |
| 80 W | 80 W | 10,400 lm | 300 × 204 mm | 7.0 kg | Ceiling / pole / wall mount, 0° to ±90° adjustable |
The catalogue identifies these variants by wattage and mounting, without orderable model codes.
