LED Canopy Light 160 W
MGC01 160 W is an LED canopy light for gas stations, exterior canopies and parking structures: up to 23,500 lm, 4000/5000K, general or Type III distribution, 0–10 V dimming. Input is AC 120–277 V, or 347/480 V.
2
Models
160 W
Power
23,500 lm
Light output, up to
147 lm/W
Efficacy, up to

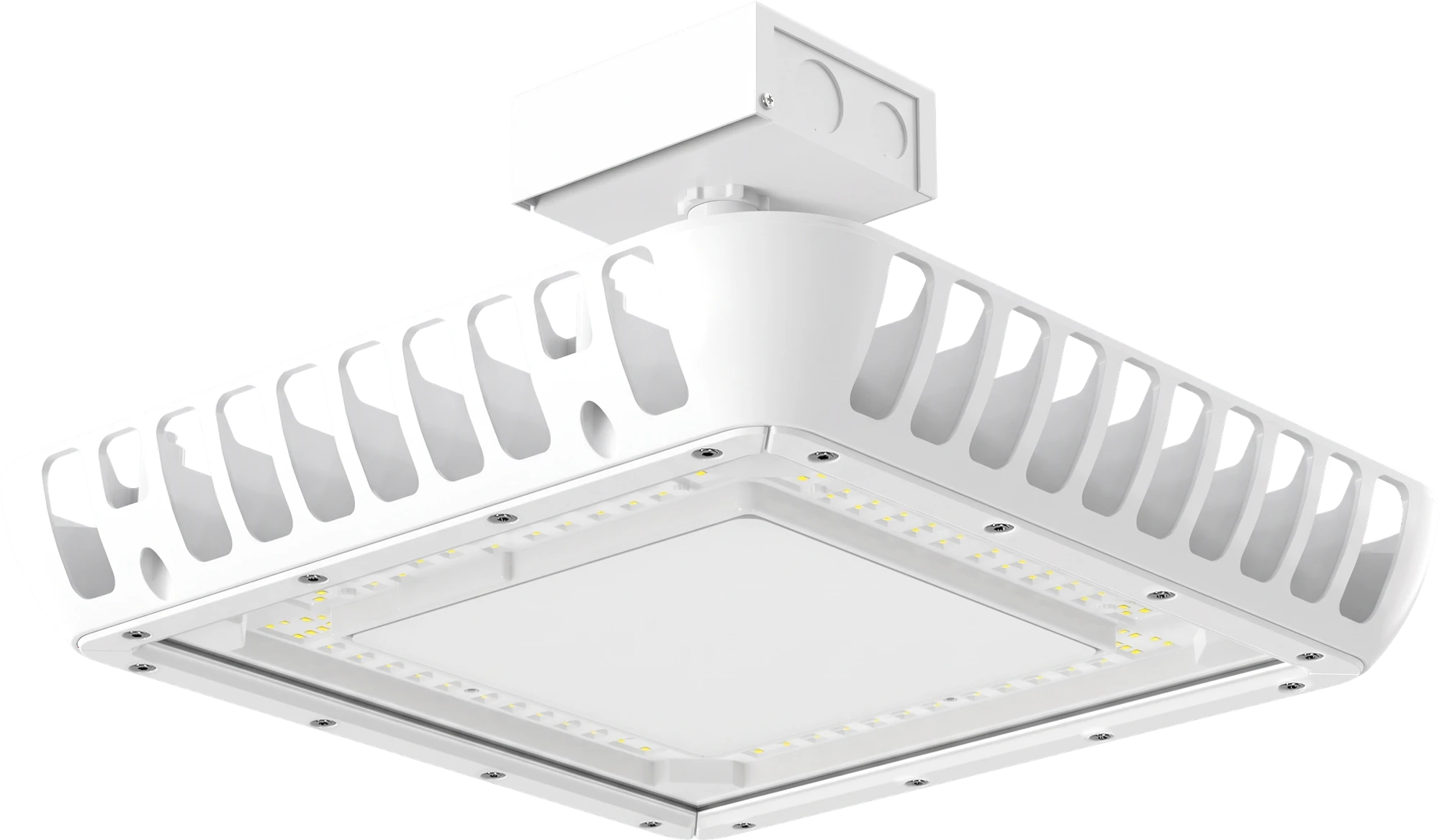

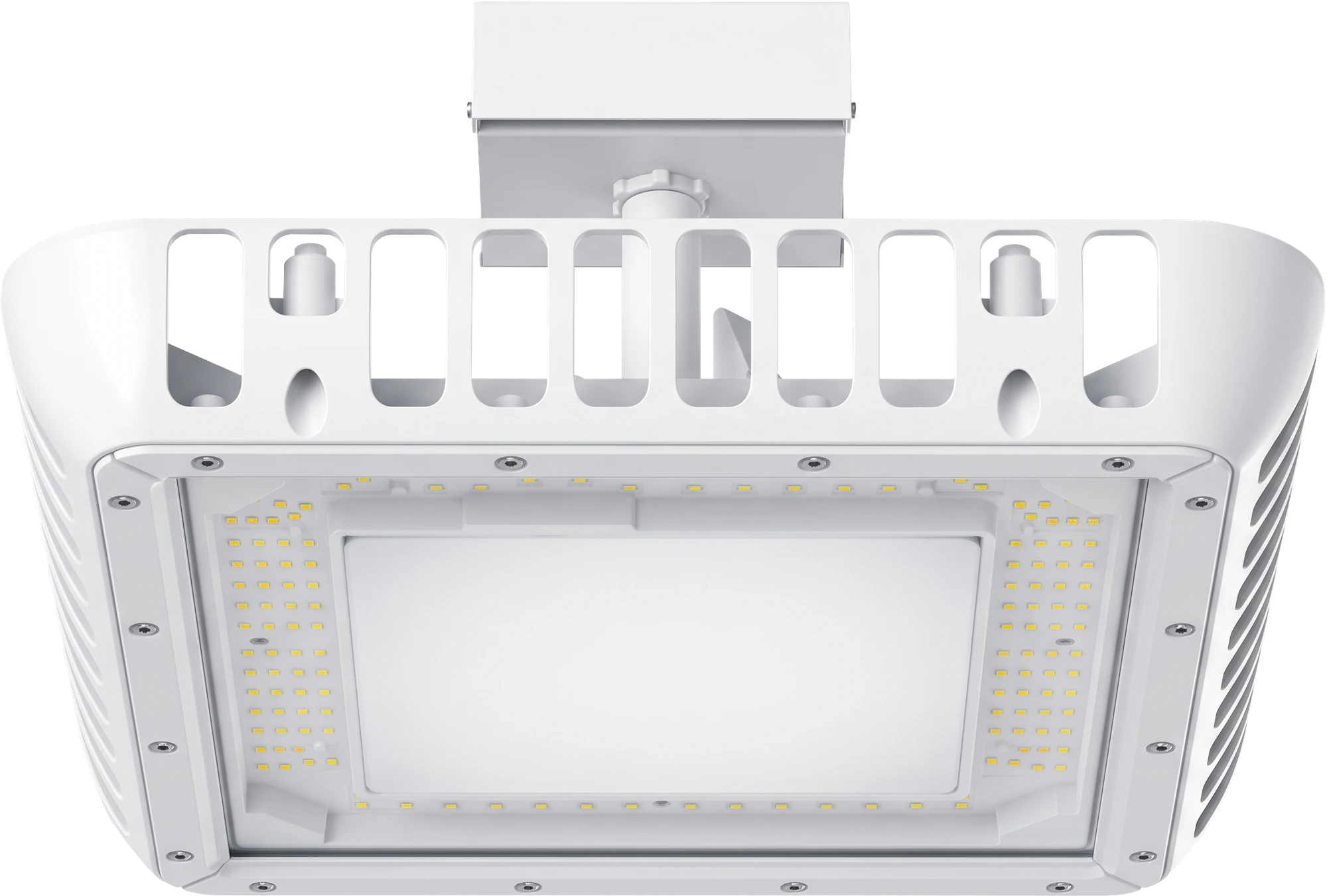

Product views
Specification, features and options
- Dimming
- 0–10 V
- Life span
- 50,000 hrs
- BUG rating
- B4 U1 G2
- THD
- < 20%
- Operating temperature
- -40°C to 50°C (-40°F to 122°F)
Models and ratings
Maximum lumens
MGC01-160W (General)
- Lumens
- 23,500 lm
- Efficacy
- 147 lm/W
- Dimensions
- L 15.75 × W 15.75 × H 8.78 in
160 W

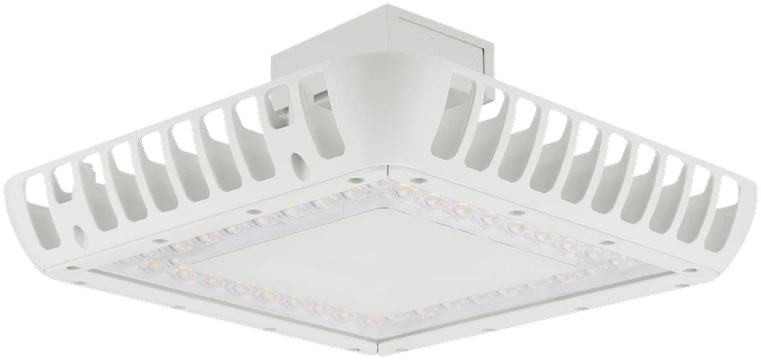

MGC01-160W (Type III)
- Lumens
- 22,000 lm
- Efficacy
- 138 lm/W
- Dimensions
- L 15.75 × W 15.75 × H 8.78 in
160 W
- Every model
- Wattage 160 WCCT 4000 / 5000KCRI > 70Input voltage AC 120–277 V or 347 / 480 VDimensions L 15.75 × W 15.75 × H 8.78 in
| Model | Lumens | Efficacy | Distribution |
|---|---|---|---|
| MGC01-160W (General) | 23,500 lm | 147 lm/W | General |
| MGC01-160W (Type III) | 22,000 lm | 138 lm/W | Type III |
The catalogue lists 4000 / 5000 K and CRI > 70; the published spec sheet also lists 3000 / 3500 K and states CRI 70.
Output data, every setting
Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.
160 W · General distribution
| Setting | System watts | 3000 K | 3500 K | 4000 K | 5000 K |
|---|---|---|---|---|---|
| 100% | 160 W | 23,000 lm144 lm/W | 23,000 lm144 lm/W | 23,500 lm147 lm/W | 23,500 lm147 lm/W |
| 80% | 128 W | 18,900 lm148 lm/W | 18,900 lm148 lm/W | 19,300 lm151 lm/W | 19,300 lm151 lm/W |
| 60% | 96 W | 14,700 lm153 lm/W | 14,700 lm153 lm/W | 15,000 lm156 lm/W | 15,000 lm156 lm/W |
| 40% | 64 W | 10,200 lm159 lm/W | 10,200 lm159 lm/W | 10,400 lm163 lm/W | 10,400 lm163 lm/W |
160 W · Type III distribution
| Setting | System watts | 3000 K | 3500 K | 4000 K | 5000 K |
|---|---|---|---|---|---|
| 100% | 160 W | 21,500 lm134 lm/W | 21,500 lm134 lm/W | 22,000 lm138 lm/W | 22,000 lm138 lm/W |
| 80% | 128 W | 17,600 lm138 lm/W | 17,600 lm138 lm/W | 18,000 lm141 lm/W | 18,000 lm141 lm/W |
| 60% | 96 W | 13,700 lm143 lm/W | 13,700 lm143 lm/W | 14,000 lm146 lm/W | 14,000 lm146 lm/W |
| 40% | 64 W | 9,500 lm148 lm/W | 9,500 lm148 lm/W | 9,700 lm152 lm/W | 9,700 lm152 lm/W |
Electrical data
Drivers and input currentPublished spec sheet · input current in amps
| Nominal Power | Driver Current | Drivers | 120 V | 208 V | 240 V | 277 V | 347 V | 480 V |
|---|---|---|---|---|---|---|---|---|
| 150 W (120 – 277 V) · 160 W (347 / 480 V) | 1200 mA | 1 | 1.25 A | 0.72 A | 0.63 A | 0.54 A | 0.46 A | 0.33 A |
Options and accessories
Spring fitting
Optional accessory
Power controller
Change wattage by switch on the controller
- Order code
- AD
Microwave sensor, 12 V
Can be built into the fixture
- Order code
- M
Ordering guide
Catalog number · left to right
| Position | Segment | Code | Meaning |
|---|---|---|---|
| 1 | Series | MGC01 | Canopy series |
| 2 | Wattage | 100W · 150W · 160W | see notes for voltage |
| 3 | Input voltage | 27V · 48V | 120–277 V · 347/480 V (347–480 V) |
| 4 | CCT | 30K · 35K · 40K · 50K | 3000 K · 3500 K · 4000 K · 5000 K |
| 5 | Finish | D · B · W · SG | dark bronze · black · white · silver gray |
| 6 | Lens | CD · T3 | clear diffuser · Type III lens |
| 7 | Control | blank · M · AD · MAD | without control · with sensor · with adjustment dial · with motion sensor and dial |
| 8 | Internal code | blank | alphanumeric |
Documents and downloads
| Model | Spec sheet |
|---|---|
| All 2 models | Spec sheetPDF · 1.3 MB |
One spec sheet covers MGC01-160W (General), MGC01-160W (Type III). IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
From the published spec sheet
Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.
Net weight · published spec sheet1 row
| Model | Net weight |
|---|---|
| 160 W | 13.140 lb |
Dimensions · published spec sheet1 row
| Model | Drawing callouts |
|---|---|
| 100 W · 150 W · 160 W | 15.75 in [400 mm] · 15.75 in [400 mm] · 8.78 in [223 mm] |
Published spec sheet · specification9 rows
| Property | Published spec sheet |
|---|---|
| CRI | 70 |
| Colour | 3000 K, 3500 K, 4000 K or 5000 K, 70 CRI. Standard configurations 4000 K and 5000 K. |
| Dimming | 0–10 V driver, 10%–100%, standard. |
| Power factor | > 90% |
| Output summary | Lumen packages from 10,000 to 23,000 lm. |
| Replacement statement | Replacing up to 400 W metal halide can save about 86% of energy. |
| Test ambient | 25 °C (±5 °C) |
| Ordering note 1 | The 150 W model in 120–277 V is 160 W in 347/480 V. |
| Ordering note 2 | Only 100 W suits 347–480 V input voltage. |
