LED Canopy Light 100/150 W

MGC01 is an LED canopy light for gas stations, exterior canopies and parking structures: 100 W (15,000 lm) or 150 W (up to 23,500 lm), 4000/5000K, general or Type III distribution, 0–10 V dimming. Input is AC 120–277 V, or 347/480 V.

Request a quoteDownload spec sheet · PDF

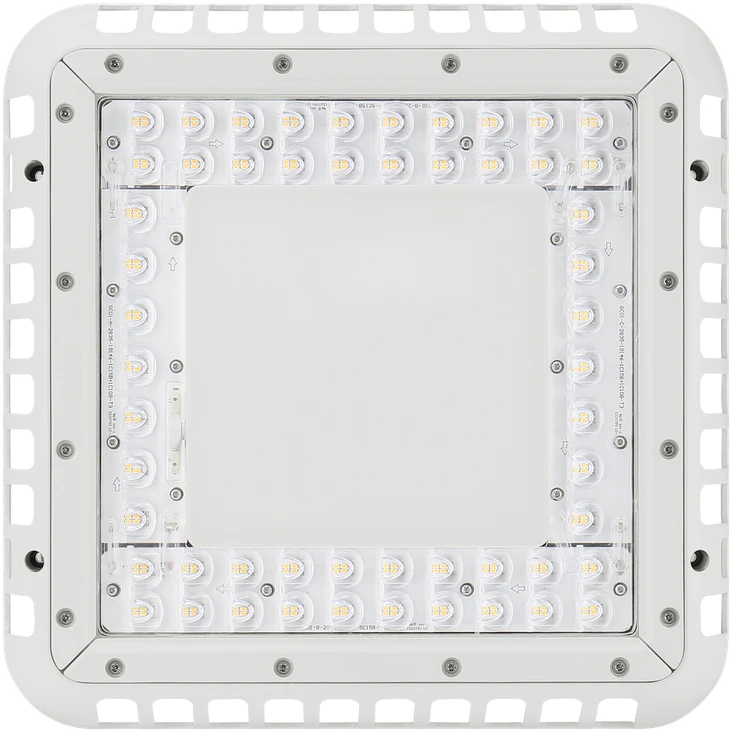

LED Canopy Light 100/150 W — general-distribution product view

3

Models

100-150 W

Power

23,500 lm

Light output, up to

157 lm/W

Efficacy, up to

Product views

Specification, features and options

Dimming
0–10 V
Life span
50,000 hrs
THD
< 20%
Operating temperature
-40°C to 50°C (-40°F to 122°F)

Models and ratings

Maximum lumens

MGC01-100W

Lumens
15,000 lm

100 W

Efficacy
150 lm/W
Dimensions
L 15.75 × W 15.75 × H 8.78 in
BUG rating
B2 U0 G1

MGC01-150W (General)

Lumens
23,500 lm

150 W

Efficacy
157 lm/W
Dimensions
L 15.75 × W 15.75 × H 8.78 in
BUG rating
B3 U0 G1

MGC01-150W (Type III)

Lumens
22,000 lm

150 W

Efficacy
147 lm/W
Dimensions
L 15.75 × W 15.75 × H 8.78 in
BUG rating
B3 U0 G1
Every model
CCT 4000 / 5000KCRI > 70Input voltage AC 120–277 V or 347 / 480 VDimensions L 15.75 × W 15.75 × H 8.78 in
ModelWattageLumensEfficacyDistributionBUG rating
MGC01-100W100 W15,000 lm150 lm/WGeneralB2 U0 G1
MGC01-150W (General)150 W23,500 lm157 lm/WGeneralB3 U0 G1
MGC01-150W (Type III)150 W22,000 lm147 lm/WType IIIB3 U0 G1

The catalogue lists 4000 / 5000 K and CRI > 70; the published spec sheet also lists 3000 / 3500 K and states CRI 70.

Output data, every setting

Wattage is switch-selected on site. Delivered lumens and efficacy at each setting.

100 W · General distribution

SettingSystem watts3000 K3500 K4000 K5000 K
100%100 W14,600 lm146 lm/W14,600 lm146 lm/W15,000 lm150 lm/W15,000 lm150 lm/W
80%80 W12,000 lm150 lm/W12,000 lm150 lm/W12,300 lm154 lm/W12,300 lm154 lm/W
60%60 W9,300 lm155 lm/W9,300 lm155 lm/W9,600 lm160 lm/W9,600 lm160 lm/W
40%40 W6,500 lm163 lm/W6,500 lm163 lm/W6,700 lm166 lm/W6,700 lm166 lm/W

150 W · General distribution

SettingSystem watts3000 K3500 K4000 K5000 K
100%150 W23,000 lm153 lm/W23,000 lm153 lm/W23,500 lm157 lm/W23,500 lm157 lm/W
80%120 W18,900 lm158 lm/W18,900 lm158 lm/W19,300 lm161 lm/W19,300 lm161 lm/W
60%90 W14,700 lm163 lm/W14,700 lm163 lm/W15,000 lm167 lm/W15,000 lm167 lm/W
40%60 W10,200 lm170 lm/W10,200 lm170 lm/W10,400 lm173 lm/W10,400 lm173 lm/W

150 W · Type III distribution

SettingSystem watts3000 K3500 K4000 K5000 K
100%150 W21,500 lm143 lm/W21,500 lm143 lm/W22,000 lm147 lm/W22,000 lm147 lm/W
80%120 W17,600 lm147 lm/W17,600 lm147 lm/W18,000 lm150 lm/W18,000 lm150 lm/W
60%90 W13,700 lm152 lm/W13,700 lm152 lm/W14,000 lm156 lm/W14,000 lm156 lm/W
40%60 W9,500 lm158 lm/W9,500 lm158 lm/W9,700 lm162 lm/W9,700 lm162 lm/W

Electrical data

Drivers and input currentPublished spec sheet · input current in amps

Nominal PowerDriver CurrentDrivers120 V208 V240 V277 V347 V480 V
100 W2600 mA10.83 A0.48 A0.42 A0.36 A0.29 A0.21 A
150 W (120 – 277 V) · 160 W (347 / 480 V)1200 mA11.25 A0.72 A0.63 A0.54 A0.46 A0.33 A

Options and accessories

Spring fitting

Spring fitting

Optional accessory

Power controller

Power controller

Change wattage by switch on the controller

Order code
AD
Microwave sensor, 12 V

Microwave sensor, 12 V

Can be built into the fixture

Order code
M

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1SeriesMGC01Canopy series
2Wattage100W · 150W · 160Wsee notes for voltage
3Input voltage27V · 48V120–277 V · 347/480 V (347–480 V)
4CCT30K · 35K · 40K · 50K3000 K · 3500 K · 4000 K · 5000 K
5FinishD · B · W · SGdark bronze · black · white · silver gray
6LensCD · T3clear diffuser · Type III lens
7Controlblank · M · AD · MADwithout control · with sensor · with adjustment dial · with motion sensor and dial
8Internal codeblankalphanumeric

Documents and downloads

ModelSpec sheet
All 3 modelsSpec sheetPDF · 1.3 MB

One spec sheet covers MGC01-100W, MGC01-150W (General), MGC01-150W (Type III). IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Net weight · published spec sheet2 rows
ModelNet weight
100 W10.913 lb
150 W10.714 lb
Dimensions · published spec sheet1 row
ModelDrawing callouts
100 W · 150 W · 160 W15.75 in [400 mm] · 15.75 in [400 mm] · 8.78 in [223 mm]
Published spec sheet · specification9 rows
PropertyPublished spec sheet
CRI70
Colour3000 K, 3500 K, 4000 K or 5000 K, 70 CRI. Standard configurations 4000 K and 5000 K.
Dimming0–10 V driver, 10%–100%, standard.
Power factor> 90%
Output summaryLumen packages from 10,000 to 23,000 lm.
Replacement statementReplacing up to 400 W metal halide can save about 86% of energy.
Test ambient25 °C (±5 °C)
Ordering note 1The 150 W model in 120–277 V is 160 W in 347/480 V.
Ordering note 2Only 100 W suits 347–480 V input voltage.
