1 model · Emergency Light

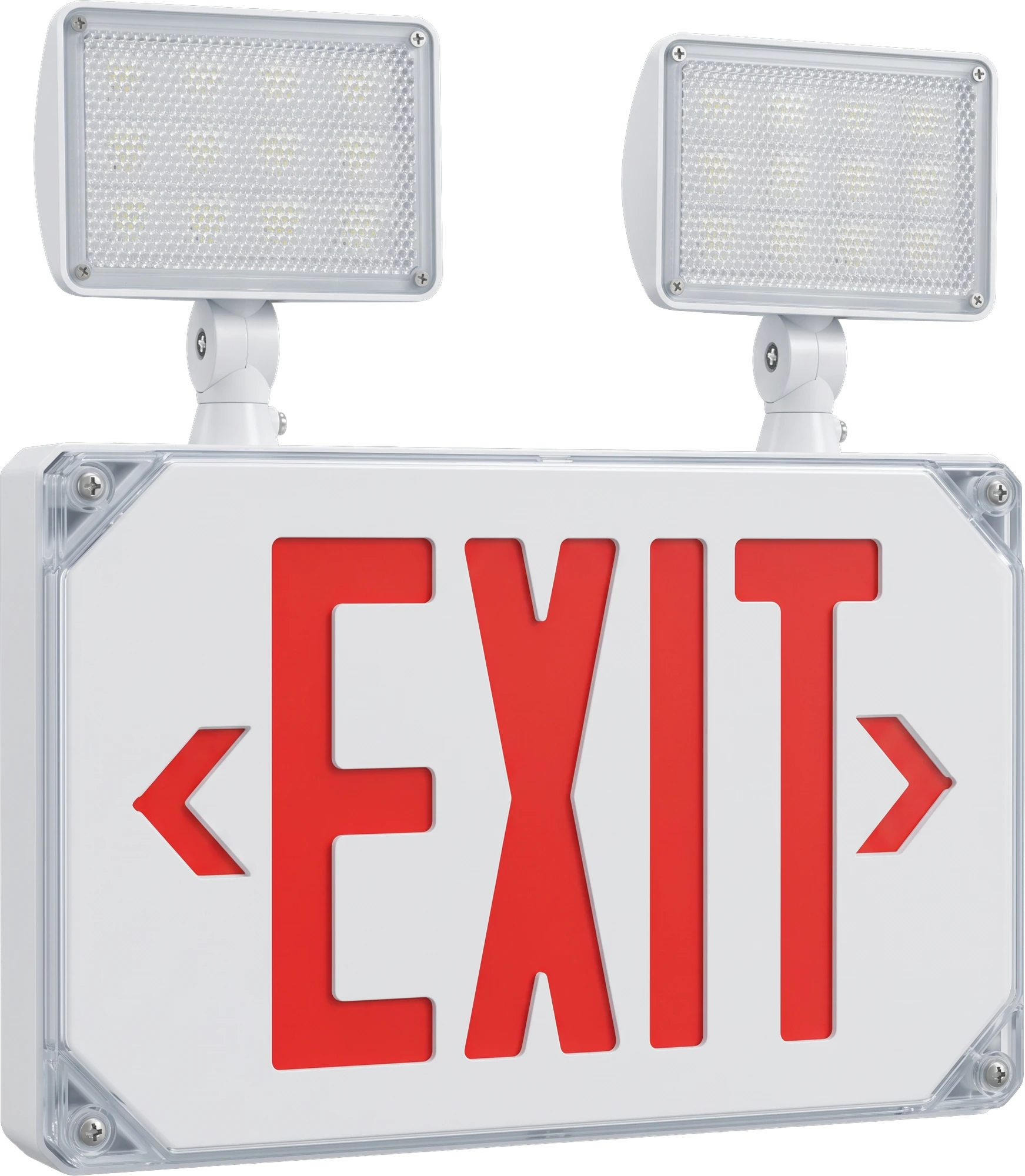

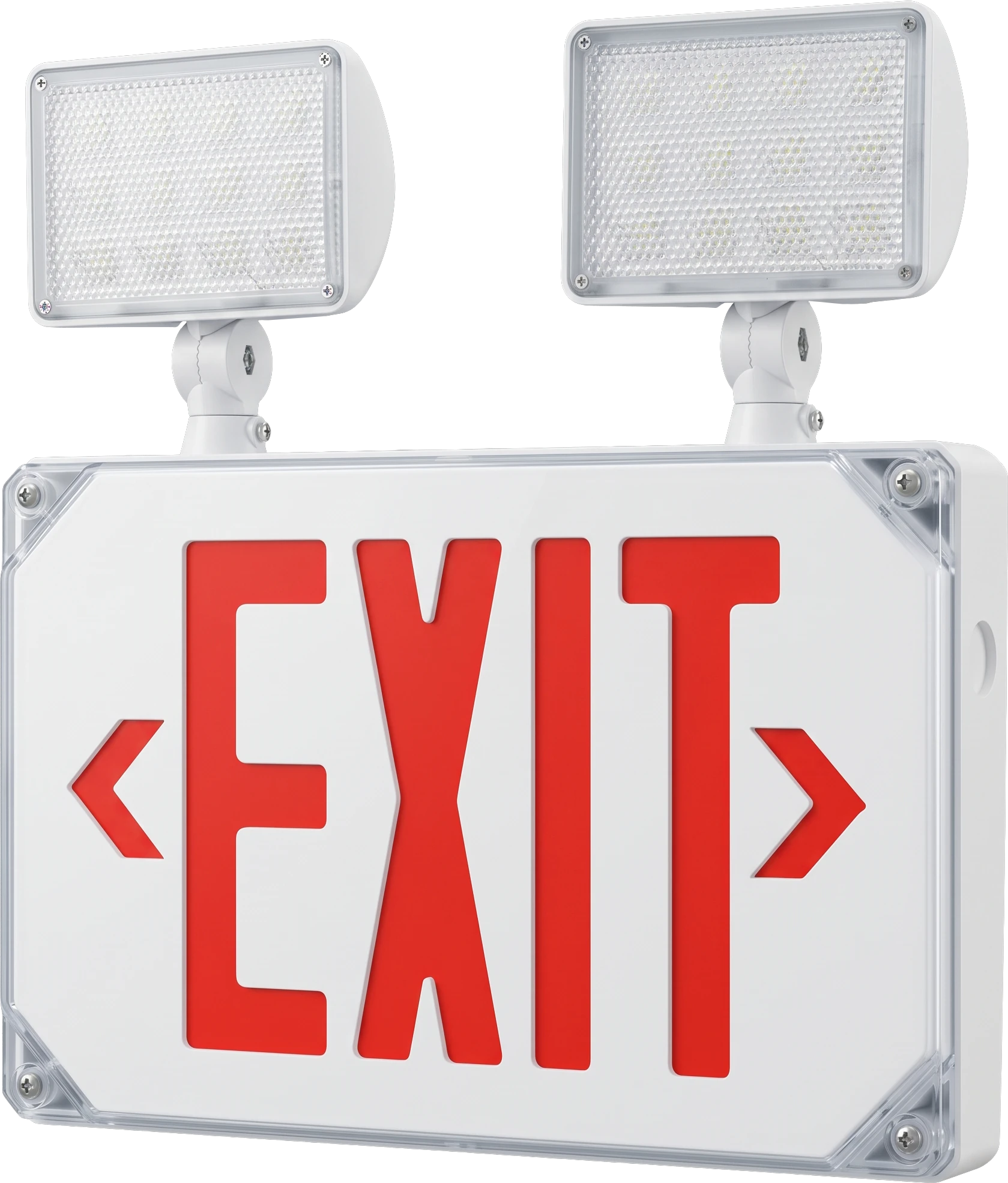

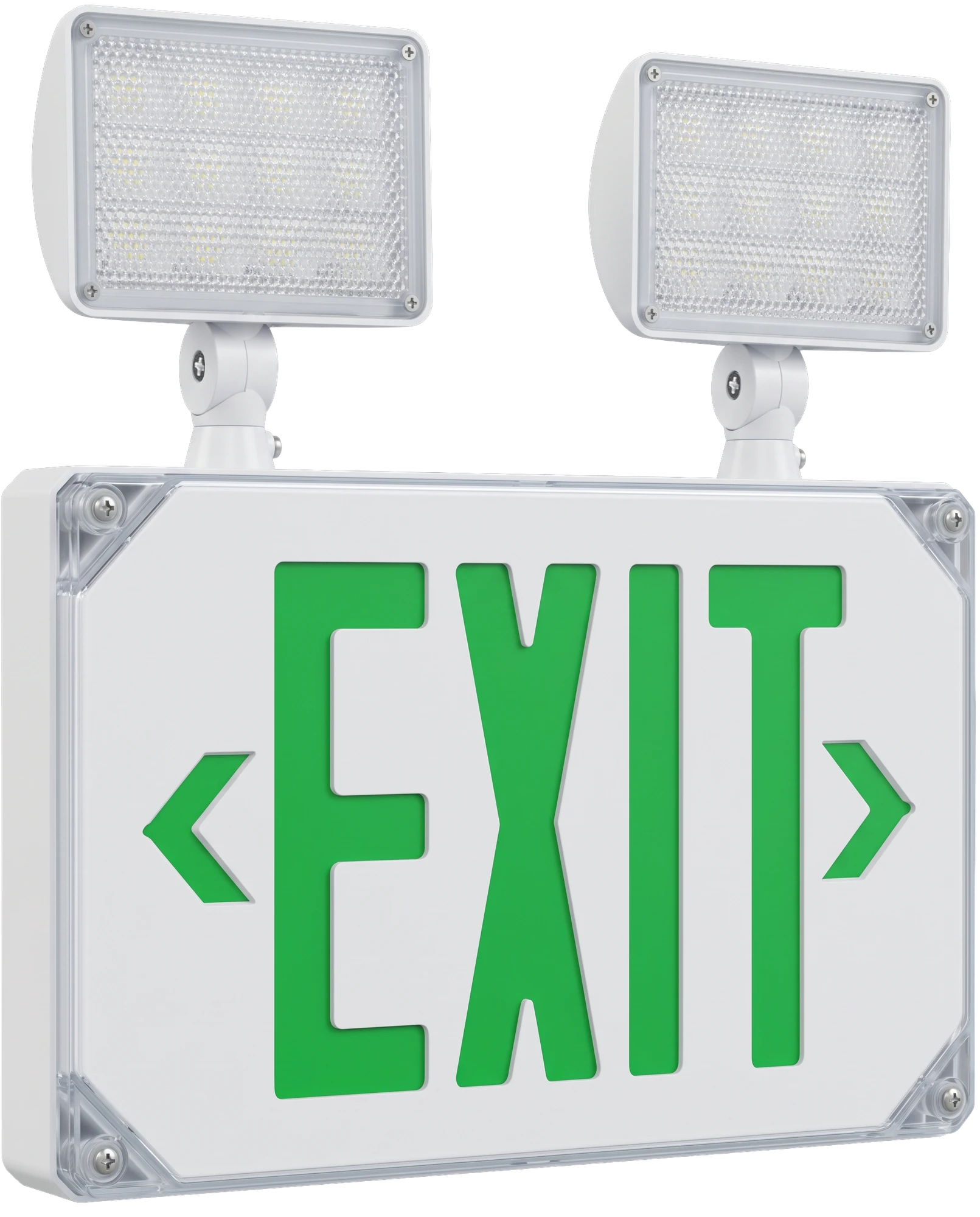

Wet Location Combo Exit Light
Wet Location Combo Exit Light in one model, 2 W, for offices, schools, retail and parking garages.
1
Model
2 W
Power
Product views
Specification, features and options
- Fixture type
- Wet location combo exit light
- Illumination
- Legend: 24 × 0.1 W SMD LED, 2.4 W total
- Housing
- Injection-molded thermoplastic ABS
- Legend
- Fully illuminated 6" characters
- Input rating
- 2.0 W, 150 mA
- Operating temperature
- 0°C to 40°C (32°F to 104°F)
- Charging time
- 24 hours
- Mounting
- Wall, end and ceiling
- Finish
- White, black
Models and ratings
- Model
- CR-7111S
- Wattage
- 2.0 W
- Lumens
- CCT
- CRI
- Input voltage
- 120 / 277 VAC, 60 Hz
- Dimensions
- 320 × 332 × 64 mm
- Battery
- Maintenance-free 3.6 V NiCad
- Discharge time
- 90 minutes
- Listings
- cULus · IP65 · UL 924 (wet locations)
The catalogue separately states 2.0 W input and 2.4 W total legend LED power. These are reproduced without reconciling the difference.
Documents and downloads
Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
