LED Vapor Tight Light MVT04, 4 ft and 8 ft

MVT04 is a vapor tight (vapor proof) LED linear fixture in two lengths: 4 ft at 50/35/25 W, up to 7,200 lm, and 8 ft at 90/75/60 W, up to 13,700 lm. It operates from -30°C to 50°C (-22°F to 122°F), dims 0–10 V and runs on AC 120–277 V. It is specified for food processing, car washes, parking garages and cold storage. Emergency battery backup and a microwave sensor are options.

Request a quoteSee the models

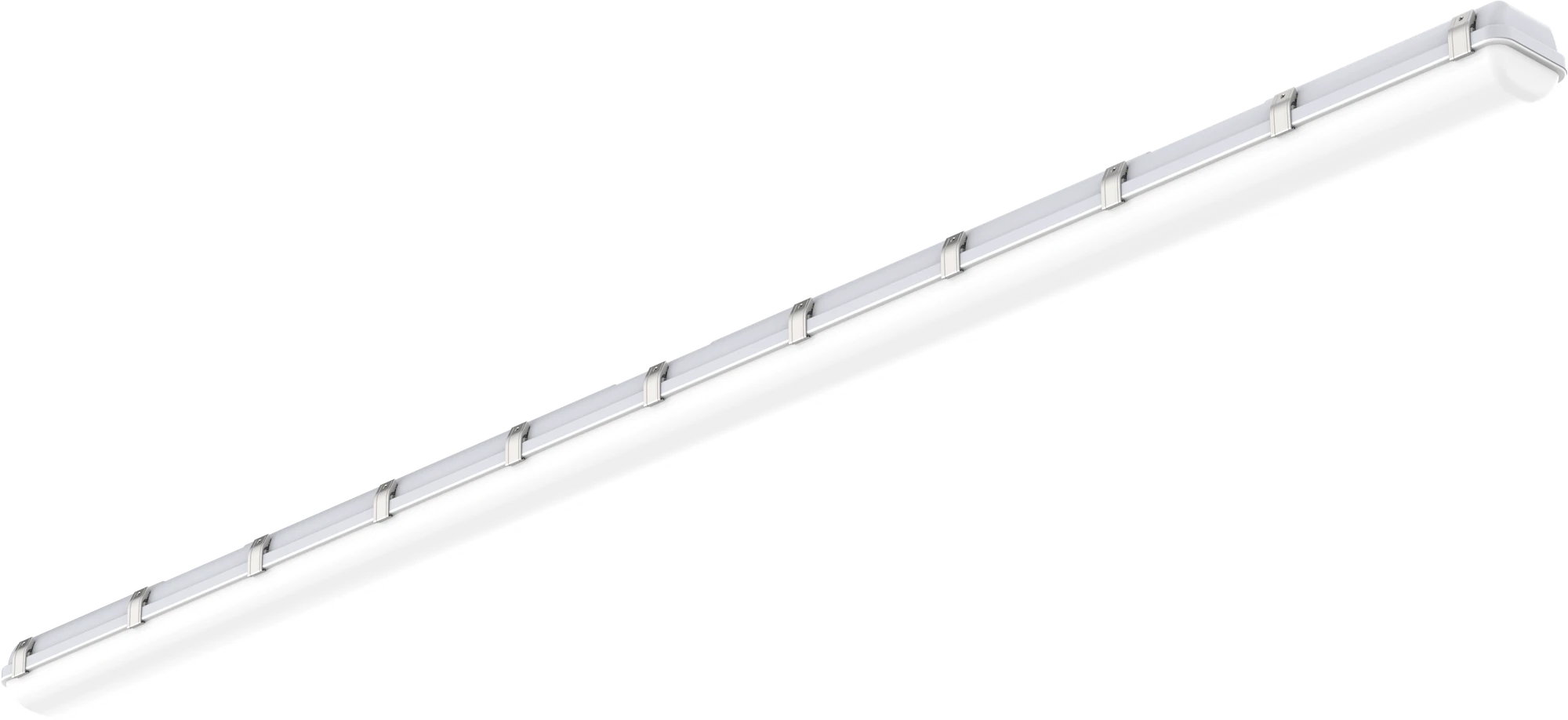

Vapor tight MVT04 8 ft, right three-quarter view

2

Models

25-90 W

Power

13,700 lm

Light output, up to

152 lm/W

Efficacy, up to

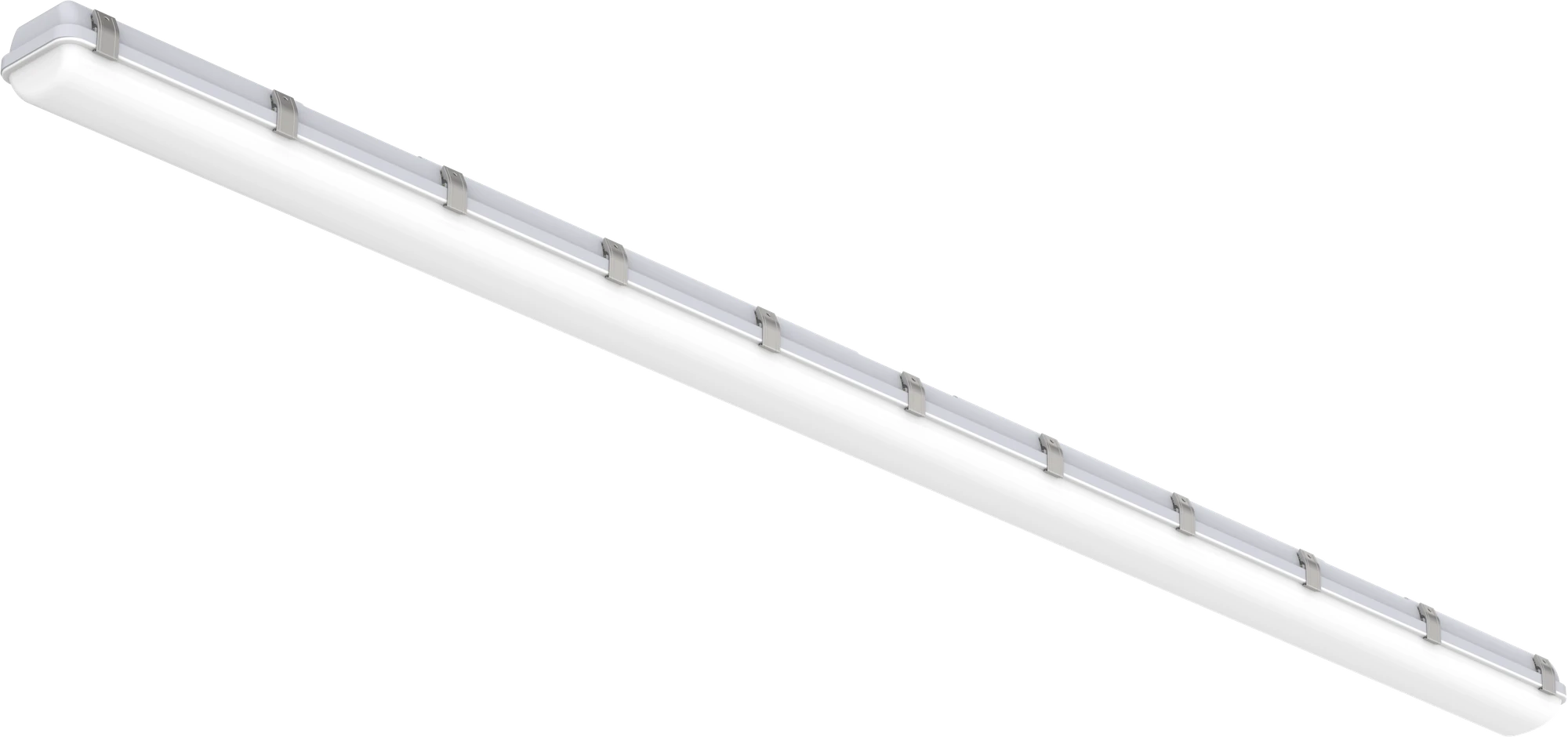

Product views

Specification, features and options

Beam angle
120°
Dimming
0–10 V (10% – 100%)
Power factor / THD
PF > 0.9 / THD < 20%
Operating temperature
-30°C to 50°C (-22°F to 122°F)
Lifespan
L70 ≥ 100,000 hrs

Models and ratings

Maximum lumens

MVT04 4FT 50W

Lumens
3,600 – 7,200 lm (max 7,200 lm)

Settable 50 / 35 / 25 W (Lv1 / Lv2 / Lv3)

Efficacy
Up to 144 lm/W
Dimensions
L 47.24 × W 4.92 × H 3.62 in

MVT04 8FT 90W

Lumens
9,000 – 13,700 lm (max 13,700 lm)

Settable 90 / 75 / 60 W (Lv1 / Lv2 / Lv3)

Efficacy
Up to 152 lm/W
Dimensions
L 94.49 × W 4.92 × H 3.98 in
Every model
CCT (selectable) 3500 / 4000 / 5000KCRI > 80Input voltage AC 120–277 V
ModelWattage (selectable)LumensDimensionsEfficacy
MVT04 4FT 50W50 / 35 / 25 W (Lv1 / Lv2 / Lv3)3,600 – 7,200 lm (max 7,200 lm)L 47.24 × W 4.92 × H 3.62 inUp to 144 lm/W
MVT04 8FT 90W90 / 75 / 60 W (Lv1 / Lv2 / Lv3)9,000 – 13,700 lm (max 13,700 lm)L 94.49 × W 4.92 × H 3.98 inUp to 152 lm/W

Model labels are printed as MVT04 plus length and wattage in the catalogue; no ordering suffix is specified.

Options and accessories

Emergency battery backup

Emergency battery backup

8 W, 900 lm, 90 minutes

Fits
Both lengths
Microwave sensor

Microwave sensor

12 V DC input

Fits
Both lengths

Documents and downloads

Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.
