3 models · Recessed Light

LED Troffer Light TRF

TRF is a recessed LED troffer in 1×4 (TRF14), 2×2 (TRF22) and 2×4 (TRF24): five wattage settings from 15 to 50 W, up to 6,182 lm, five colour temperatures from 3500 to 6500K, damp location, AC 120–277 V or 120–347 V.

Request a quoteDownload spec sheet · PDF
LED Troffer Light TRF — SS-TRF14

3

Models

15-50 W

Power

6,182 lm

Light output, up to

154 lm/W

Efficacy, up to

Product views

Specification, features and options

Distribution
120°
Power factor
> 0.9
Life span
> 50,000 hrs
Operating temperature
-40°F to 113°F
Storage temperature
-40°F to 158°F
Rating
Damp location
THD
< 20%

Models and ratings

Maximum lumens

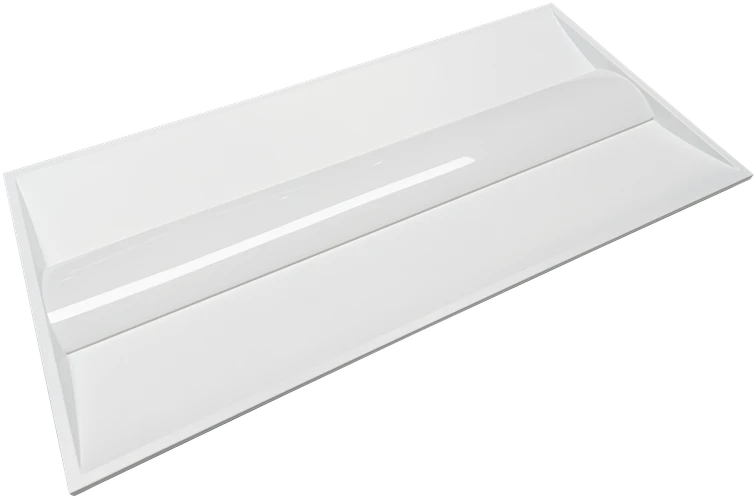

TRF14-TCP40W-CCT

Lumens (max)
6,179 lm

Settable 40 / 30 / 25 / 20 / 15 W

Efficacy (max)
154 lm/W
Dimensions
47.6 × 11.89 in

Depth 2.76 in

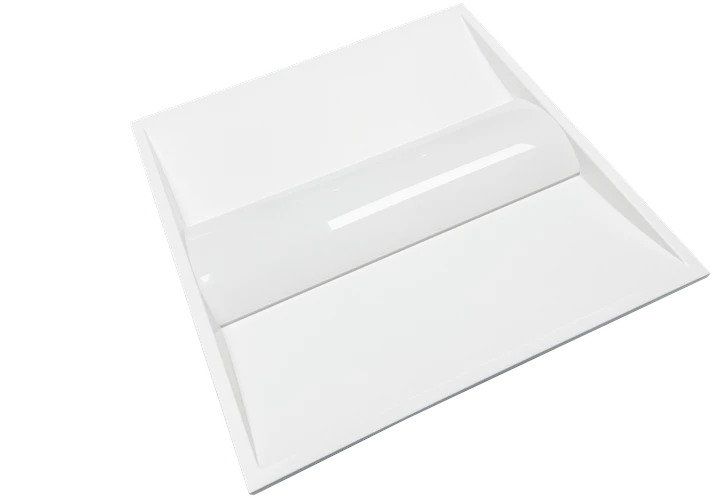

TRF22-TCP40W-CCT

Lumens (max)
6,142 lm

Settable 40 / 30 / 25 / 20 / 15 W

Efficacy (max)
153 lm/W
Dimensions
23.78 × 23.78 in

Depth 2.78 in

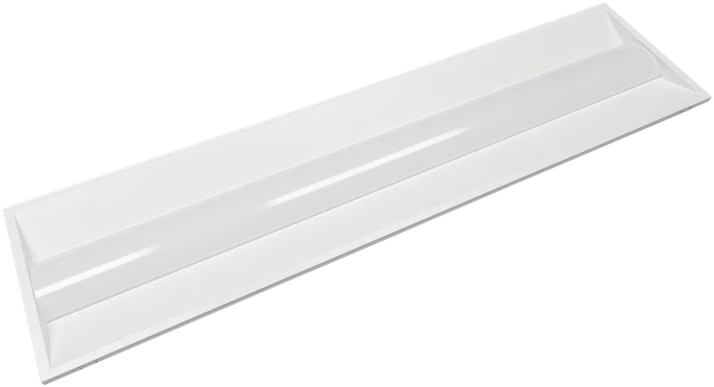

TRF24-TCP50W-CCT

Lumens (max)
6,182 lm

Settable 50 / 40 / 35 / 30 / 25 W

Efficacy (max)
123 lm/W
Dimensions
47.6 × 23.78 in

Depth 2.76 in

Every model
CCT (selectable) 3500 / 4000 / 5000 / 5700 / 6500KCRI Ra > 80Input voltage AC 120–277 V / AC 120–347 V
ModelWattage (selectable)Lumens (max)DimensionsEfficacy (max)
TRF14-TCP40W-CCT40 / 30 / 25 / 20 / 15 W6,179 lm47.6 × 11.89 × 2.76 in154 lm/W
TRF22-TCP40W-CCT40 / 30 / 25 / 20 / 15 W6,142 lm23.78 × 23.78 × 2.78 in153 lm/W
TRF24-TCP50W-CCT50 / 40 / 35 / 30 / 25 W6,182 lm47.6 × 23.78 × 2.76 in123 lm/W

Ordering guide

Catalog number · left to right

PositionSegmentCodeMeaning
1ProductTRFLED troffer light
2Size14 · 22 · 2414 = 1 x 4 ft · 22 = 2 x 2 ft · 24 = 2 x 4 ft
3FunctionTCPTunable CCT and power
4Power40W · 50W40W = 40 / 30 / 25 / 20 / 15 W · 50W = 50 / 40 / 35 / 30 / 25 W
5CCTCCT3500 K / 4000 K / 5000 K / 5700 K / 6500 K tunable
6ControlYA = PIR sensor (occupancy sensor) · B = MS sensor (occupancy sensor) · BT = Bluetooth sensor · blank = no sensor

Documents and downloads

ModelSpec sheet
All 3 modelsSpec sheetPDF · 1.2 MB

One spec sheet covers TRF14-TCP40W-CCT, TRF22-TCP40W-CCT, TRF24-TCP50W-CCT. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Drawing · 1 × 4 FT3 rows
Drawing calloutPublished spec sheet
1 × 4 FT47.6 in
1 × 4 FT11.89 in
1 × 4 FT2.76 in
Drawing · 2 × 2 FT2 rows
Drawing calloutPublished spec sheet
2 × 2 FT23.78 in
2 × 2 FT2.76 in
Drawing · 2 × 4 FT3 rows
Drawing calloutPublished spec sheet
2 × 4 FT47.6 in
2 × 4 FT23.78 in
2 × 4 FT2.76 in
Packing · published spec sheet3 rows
SizeOuter packing sizeNet weightGross weightQty / carton
1 x 4 ftL49.41 × W8.27 × H13.78 in [L1255 × W210 × H350 mm]20.06 lb [9.34 kg]22.49 lb [10.2 kg]4 pcs/ctn
2 x 2 ftL24.61 × W8.58 × H25.08 in [L625 × W217 × H637 mm]20.94 lb [9.5 kg]23.37 lb [10.6 kg]4 pcs/ctn
2 x 4 ftL48.62 × W8.58 × H25.08 in [L1234 × W217 × H637 mm]37.70 lb [17.1 kg]41.01 lb [18.6 kg]4 pcs/ctn
Published spec sheet · specification2 rows
PropertyPublished spec sheet
Driver efficacy> 85%
Dimming0–10 V dimmable as standard.
Photometrics · 1 x 4 · 40 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)117.1
C90/270 (deg)130.2
Average beam angle (50%)123.6 DEG
Cone angle117.06deg
Flux out3903 lm
Mounting height33'(10.0m)
Contour legend · MH=1m1300 · 1200 · 1000 · 830 · 670 · 500 · 170 · 83.0 · 50.0 · 17.0
Photometrics · 1 x 4 · 40 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1m448.5,1669 lx326.75 cm
2m112.1,417.2 lx653.49 cm
3m49.83,185.4 lx980.24 cm
4m28.03,104.3 lx1306.99 cm
5m17.94,66.75 lx1633.74 cm
6m12.46,46.35 lx1960.48 cm
7m9.153,34.06 lx2287.23 cm
8m7.008,26.07 lx2613.98 cm
9m5.537,20.60 lx2940.73 cm
10m4.485,16.69 lx3267.47 cm
Photometrics · 1 x 4 · 40 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.5005 lx0.04649fc
5%0.8341 lx0.07749fc
10%1.668 lx0.155fc
30%5.005 lx0.4649fc
50%8.341 lx0.7749fc
Photometrics · 2 x 2 · 40 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)126.2
C90/270 (deg)117.6
Average beam angle (50%)121.9 DEG
Cone angle117.61deg
Flux out4281 lm
Mounting height33'(10.0m)
Contour legend · MH=1m1500 · 1300 · 1100 · 920 · 740 · 550 · 180 · 92.0 · 55.0 · 18.0
Photometrics · 2 x 2 · 40 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1m492.0,1842 lx330.30 cm
2m123.0,460.5 lx660.59 cm
3m54.67,204.7 lx990.89 cm
4m30.75,115.1 lx1321.19 cm
5m19.68,73.68 lx1651.48 cm
6m13.67,51.16 lx1981.78 cm
7m10.04,37.59 lx2312.07 cm
8m7.687,28.78 lx2642.37 cm
9m6.074,22.74 lx2972.67 cm
10m4.920,18.42 lx3302.96 cm
Photometrics · 2 x 2 · 40 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.5521 lx0.05129fc
5%0.9201 lx0.08548fc
10%1.840 lx0.171fc
30%5.521 lx0.5129fc
50%9.201 lx0.8548fc
Photometrics · 2 x 4 · 50 W · 5000 K · measurements7 rows
MeasurementPublished spec sheet
C0/180 (deg)119.4
C90/270 (deg)126.1
Average beam angle (50%)122.7 DEG
Cone angle119.36deg
Flux out5128 lm
Mounting height33'(10.0m)
Contour legend · MH=1m1700 · 1500 · 1300 · 1100 · 860 · 650 · 220 · 110 · 65.0 · 22.0
Photometrics · 2 x 4 · 50 W · 5000 K · illumination10 rows
HeightEavg, EmaxDiameter
1m544.1,2161 lx341.98 cm
2m136.0,540.3 lx683.96 cm
3m60.45,240.1 lx1025.94 cm
4m34.01,135.1 lx1367.92 cm
5m21.76,86.44 lx1709.90 cm
6m15.11,60.03 lx2051.88 cm
7m11.10,44.10 lx2393.85 cm
8m8.501,33.77 lx2735.83 cm
9m6.717,26.68 lx3077.81 cm
10m5.441,21.61 lx3419.79 cm
Photometrics · 2 x 4 · 50 W · 5000 K · isolux contours5 rows
ContourIlluminanceIlluminance (fc)
3%0.6472 lx0.06013fc
5%1.079 lx0.1002fc
10%2.157 lx0.2004fc
30%6.472 lx0.6013fc
50%10.79 lx1.002fc
