LED Troffer Light AL-TRUF

AL-TRUF is a recessed LED troffer in 2×2 ft (40–20 W, up to 5,400 lm) and 2×4 ft (72–30 W, up to 9,720 lm). Wattage and colour temperature (3000/3500/4000/5000/6500K) are selectable; input is AC 120–277 V.

Request a quoteSee the models

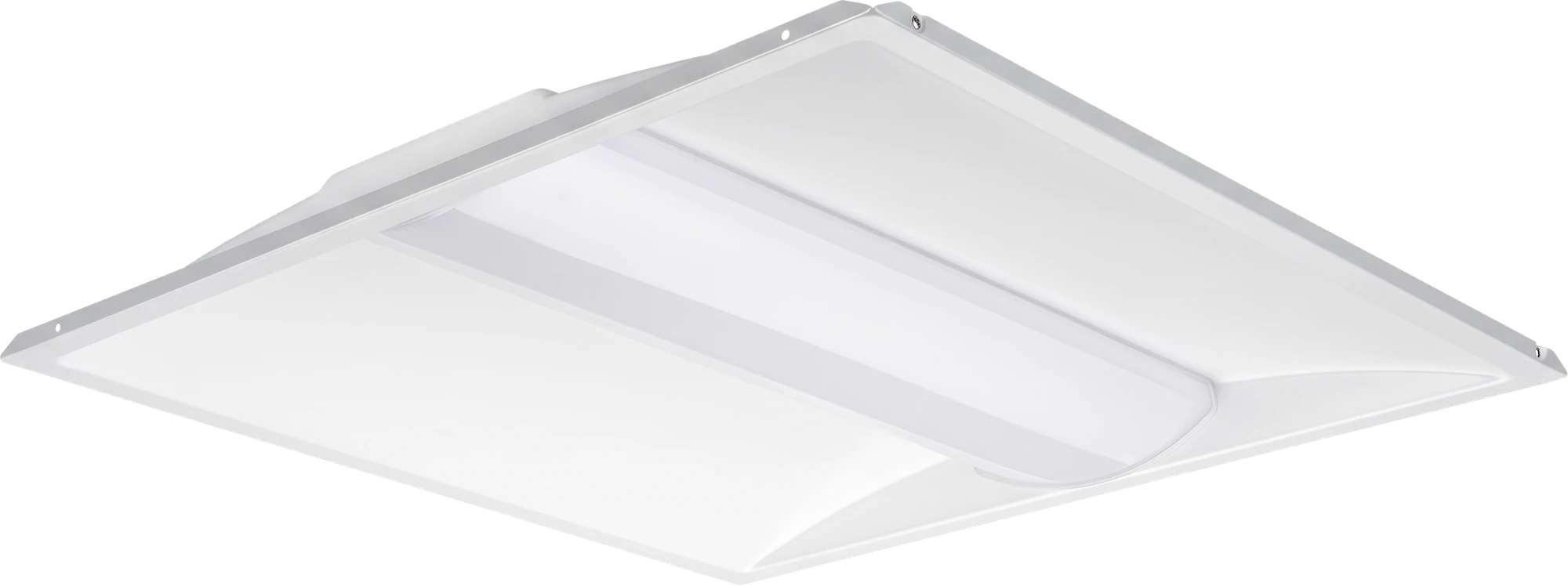

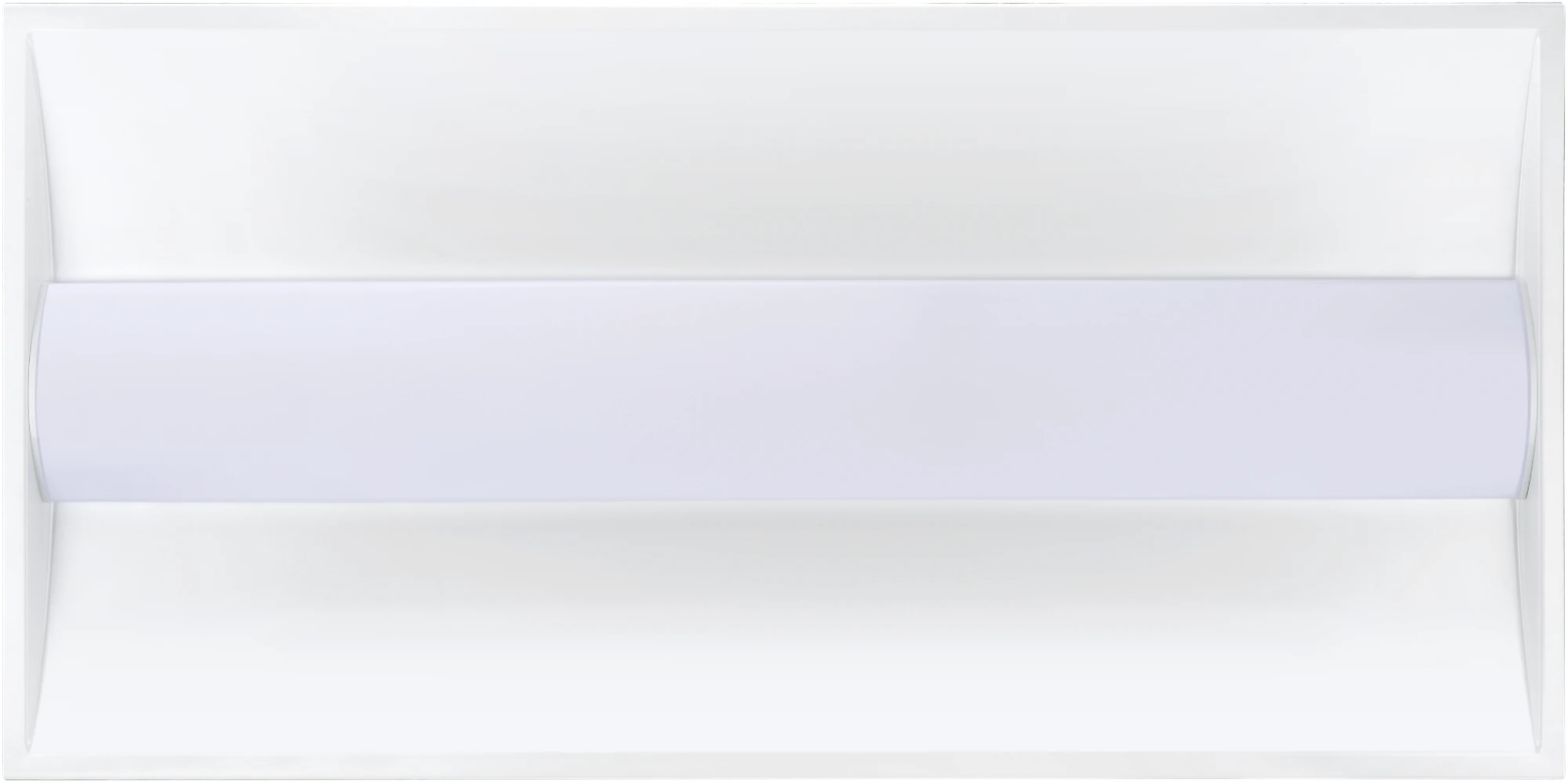

LED Troffer Light AL-TRUF — AL-TRUF22-aLbK-s

2

Models

20-72 W

Power

9,720 lm

Light output, up to

135 lm/W

Efficacy, up to

Product views

Specification, features and options

Power factor
> 0.9
THD
< 20%
Beam angle
120°
Operating temperature
-25°C to 45°C (-13°F to +113°F)

Models and ratings

Maximum lumens

AL-TRUF22-aLbK-s

Lumens (max)
5,400 lm

Settable 40 / 35 / 30 / 25 / 20 W

Efficacy
135 lm/W

AL-TRUF24-aLbK-ss

Lumens (max)
9,720 lm

Settable 72 / 60 / 50 / 40 / 30 W

Efficacy
135 lm/W
Every model
CCT (selectable) 3000 / 3500 / 4000 / 5000 / 6500KCRI > 80Efficacy 135 lm/WListings cULus · DLC Listed
ModelWattage (selectable)Lumens (max)Input voltageSize
AL-TRUF22-aLbK-s40 / 35 / 30 / 25 / 20 W5,400 lmAC 120–277 V / DC 75–90 V2 × 2 ft
AL-TRUF24-aLbK-ss72 / 60 / 50 / 40 / 30 W9,720 lmAC 120–277 V / DC 130–145 V2 × 4 ft

Documents and downloads

Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw

For listing and origin documents, see project compliance documentation.

From the published spec sheet

Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.

Published spec sheet · specification4 rows
PropertyPublished spec sheet
Auxiliary outputDC12V
SensorsMicrowave/PIR sensor optional.
Dimming range5%–100%
Relative humidity10%–90%RH
Dimensions · published spec sheet2 rows
ModelDimensions (L × W × H)
AL-TRUF22-aLbK-s23.7 × 23.7 × 1.97 in
AL-TRUF24-aLbK-ss47.7 × 23.7 × 1.97 in
Mounting accessories · published spec sheet3 rows
ModelAccessorySize
AL-TRUF22-aLbK-sSurface mount frameL612 × W623 × H50 mm
AL-TRUF24-aLbK-ssSurface mount frameL1219 × W623 × H50 mm
AL-TRUF22-aLbK-s · AL-TRUF24-aLbK-ssHanging cableL1000 × W14.8 mm
Sensors · published spec sheet2 rows
AccessoryPublished spec sheet
Microwave motion sensor · optionalPin-type plug-in mounting structure; 0–10 V dimming function.
PIR sensor · optionalPin-type plug-in mounting structure; 0–10 V dimming function; Bluetooth-Mesh available as an option.
Drawing · optional sensors2 rows
Drawing calloutPublished spec sheet
Microwave motion sensor18.5 mm · 67 mm · 32 mm · 11.2 mm · 14.3 mm
PIR sensor11.2 mm · 14.3 mm · 21.9 mm · 18.5 mm · 67 mm · 32 mm
Published spec sheet · mounting1 row
PropertyPublished spec sheet
MountingRecessed mounted · Pendant mounted · Surface mounted.
Photometrics · AL-TRUF22-aLbK-s · 2 × 2 ft · setting not stated · measurements9 rows
MeasurementPublished spec sheet
90% of max1,076 cd
75% of max897 cd
60% of max718 cd
50% of max598 cd
40% of max478 cd
30% of max359 cd
20% of max239 cd
10% of max120 cd
Point of max1,197.0 cd
Photometrics · AL-TRUF22-aLbK-s · 2 × 2 ft · setting not stated · zonal lumen summary9 rows
ZoneLumens% luminaire
0-30930.926.9%
0-401,527.944.1%
0-602,714.078.4%
60-90738.321.3%
70-100309.99%
90-1204.20.1%
0-903,452.399.7%
90-1809.60.3%
0-1803,461.9100%
Photometrics · AL-TRUF22-aLbK-s · 2 × 2 ft · setting not stated · lumens per zone9 rows
ZoneLumens% total
0-10113.23.3%
10-20324.59.4%
20-30493.214.2%
30-40597.017.2%
40-50622.118.0%
50-60563.916.3%
60-70429.812.4%
70-80245.07.1%
80-9063.51.8%
Photometrics · AL-TRUF24-aLbK-ss · 2 × 4 ft · setting not stated · measurements9 rows
MeasurementPublished spec sheet
90% of max1,636 cd
75% of max1,363 cd
60% of max1,091 cd
50% of max909 cd
40% of max727 cd
30% of max545 cd
20% of max364 cd
10% of max182 cd
Point of max1,818.0 cd
Photometrics · AL-TRUF24-aLbK-ss · 2 × 4 ft · setting not stated · zonal lumen summary9 rows
ZoneLumens% luminaire
0-301,417.726.8%
0-402,328.944.1%
0-604,141.578.4%
60-901,131.821.4%
70-100476.49%
90-1205.10.1%
0-905,273.499.8%
90-1809.20.2%
0-1805,282.6100%
Photometrics · AL-TRUF24-aLbK-ss · 2 × 4 ft · setting not stated · lumens per zone9 rows
ZoneLumens% total
0-10172.13.3%
10-20494.09.4%
20-30751.714.2%
30-40911.217.2%
40-50950.518.0%
50-60862.116.3%
60-70657.412.4%
70-80375.87.1%
80-9098.61.9%
