Explosion-Proof LED High Bay 100–200 W
Explosion-Proof LED High Bay 100–200 W in five models, up to 24,000 lm, for oil and gas facilities, chemical plants, paint and spray booths and grain and fuel handling.
5
Models
100-200 W
Power
24,000 lm
Light output, up to
120 lm/W
Efficacy, up to

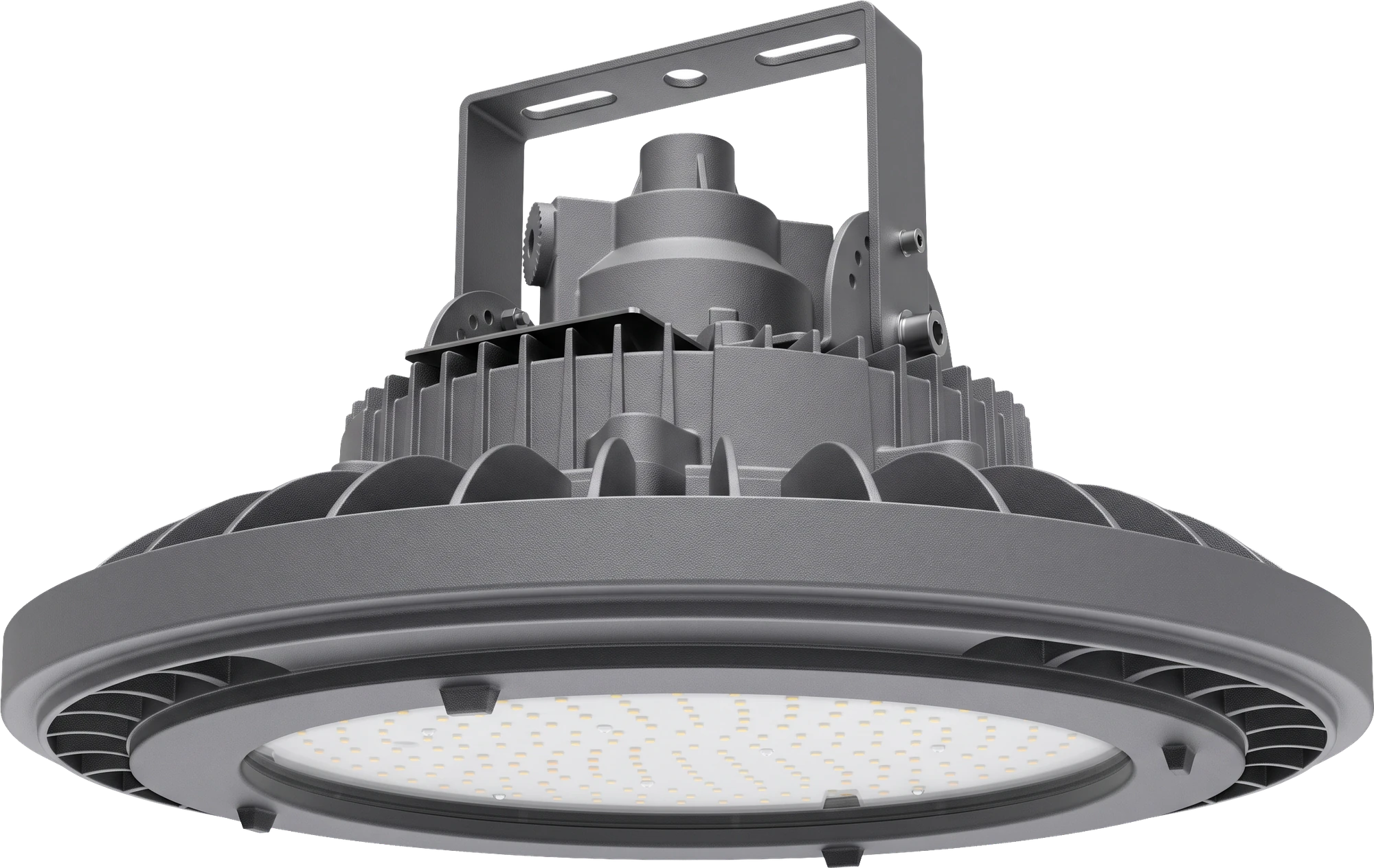

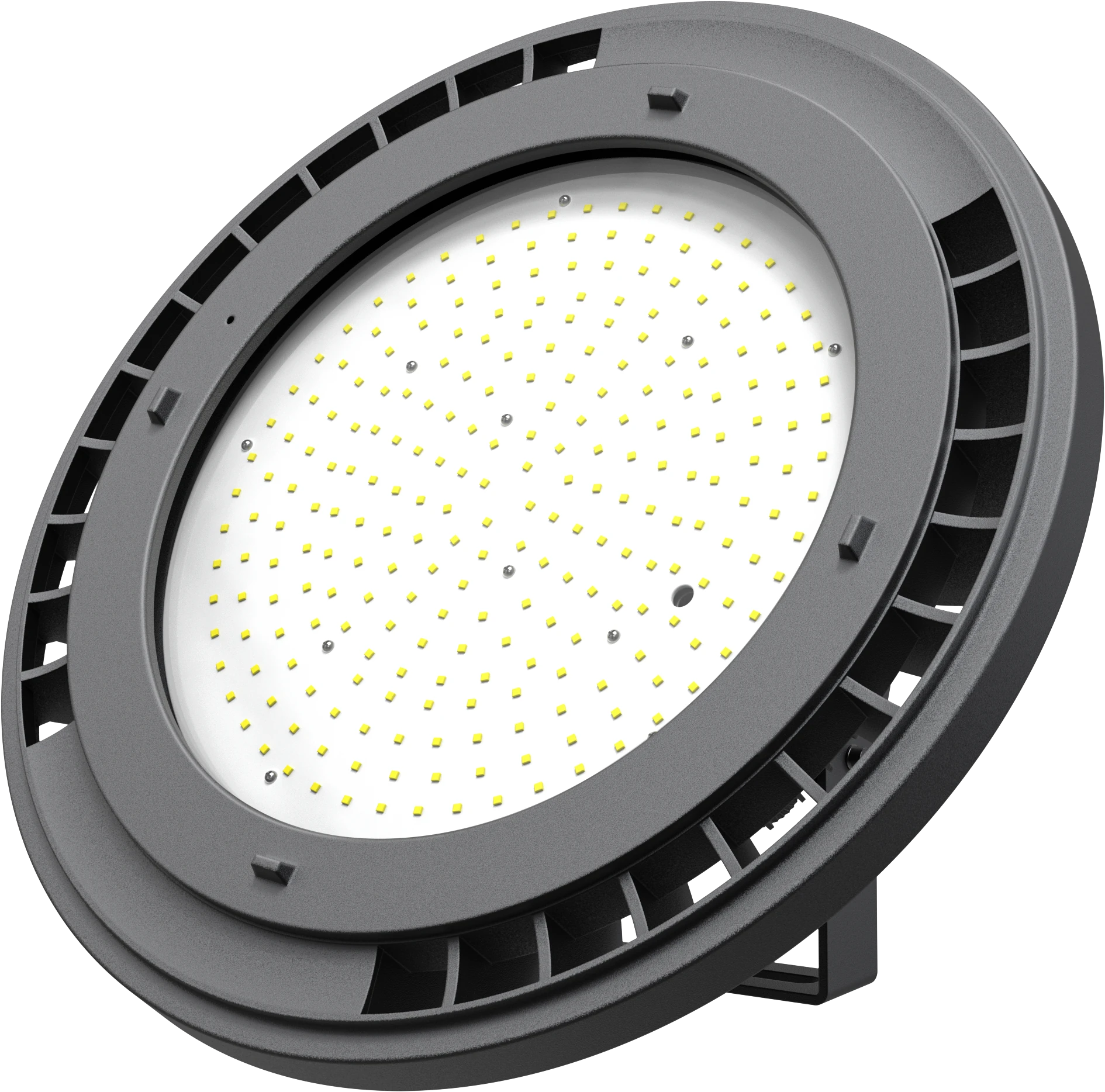

Product views
Specification, features and options
- Power factor
- 0.97
- Housing material
- Die-cast aluminum (ADC12)
- Lens material
- Tempered glass
- Conduit entry
- 3/4"-14 NPT
- Weight
- 14.3 kg
- Mounting
- Ceiling / wall mount, 0° to ±90° adjustable
- Operating temperature
- -40°C to +50°C (-40°F to 122°F)
Models and ratings
Maximum lumens
100 W
- Lumen output
- 12,000 lm
- Efficacy
- 120 lm/W
- Dimensions
- 460 × 243 mm
100 W
120 W
- Lumen output
- 14,400 lm
- Efficacy
- 120 lm/W
- Dimensions
- 460 × 243 mm
120 W
150 W
- Lumen output
- 18,000 lm
- Efficacy
- 120 lm/W
- Dimensions
- 460 × 243 mm
150 W
180 W
- Lumen output
- 21,600 lm
- Efficacy
- 120 lm/W
- Dimensions
- 460 × 243 mm
180 W
200 W
- Lumen output
- 24,000 lm
- Efficacy
- 120 lm/W
- Dimensions
- 460 × 243 mm
200 W
- Every model
- CCT 3000 / 4000 / 5000 / 5700 / 6500KInput voltage AC 100–240 V / 277 V, 50/60 HzDimensions 460 × 243 mmEfficacy 120 lm/W
| Variant | Wattage | Lumen output |
|---|---|---|
| 100 W | 100 W | 12,000 lm |
| 120 W | 120 W | 14,400 lm |
| 150 W | 150 W | 18,000 lm |
| 180 W | 180 W | 21,600 lm |
| 200 W | 200 W | 24,000 lm |
The catalogue identifies these variants by wattage and mounting, without orderable model codes.
Documents and downloads
Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
