1 model · Explosion Proof

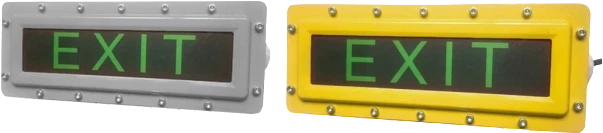

Explosion-Proof LED Exit Sign — Wall Mount
Explosion-Proof LED Exit Sign — Wall Mount in one model, 5 W and 600 lm.
1
Model
5 W
Power
600 lm
Light output
Specification, features and options
- Power factor
- 0.97
- Emergency battery backup
- 90+ minutes (1.5 hours), self-contained battery
- Lifespan
- > 50,000 hours
- Housing material
- ADC12 aluminum alloy with anti-corrosion powder coating
- Conduit entry
- M25 × 1.5 or NPT 3/4"-14
- Operating temperature
- -40°C to +45°C / +50°C / +55°C (model dependent)
- Mounting options
- Wall mount
Models and ratings
- Variant
- 5 W wall mount
- Wattage
- 5 W
- Luminous flux
- 600 lm
- CCT
- CRI
- Input voltage
- AC 100–277 V, 50/60 Hz
- Dimensions
The catalogue identifies these variants by wattage and mounting, without orderable model codes.
Documents and downloads
Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
Buyer guides for this fixture
Next step
Price a job, or stock the line.
