3 models · Explosion Proof

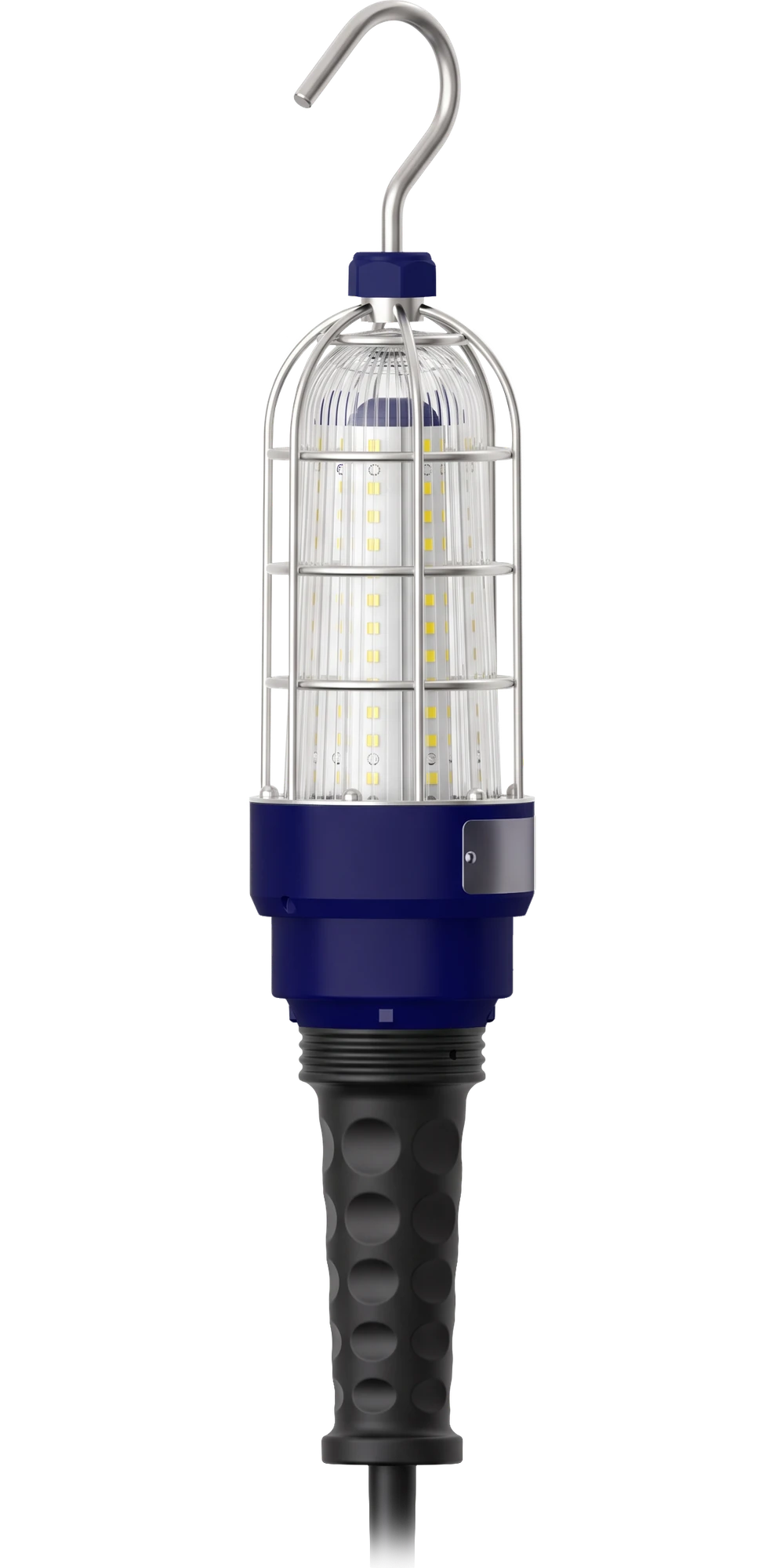

Explosion-Proof Drop Light
Explosion-Proof Drop Light in three models, 10-30 W and up to 3,900 lm, for tank and vessel inspection, maintenance shops, refineries and marine work.
3
Models
10-30 W
Power
3,900 lm
Light output, up to
130 lm/W
Efficacy, up to
Specification, features and options
- Beam angle
- 360°
- Power factor / THD
- PF > 0.95 / THD < 10%
- Surge protection
- 4 kV / 6 kV
- Operating temperature
- -20°C to +40°C
- Lifespan
- L70 > 50,000 hrs
- Weight
- Net 3.0 kg / Gross 3.5 kg
Models and ratings
Maximum lumens
SC10
- Lumens
- 1,300 lm
- Efficacy
- 130 lm/W
- Dimensions
- Ø101.5 × 517 mm (including hook)
10 W
SC20
- Lumens
- 2,600 lm
- Efficacy
- 130 lm/W
- Dimensions
- Ø101.5 × 517 mm (including hook)
20 W
SC30
- Lumens
- 3,900 lm
- Efficacy
- 130 lm/W
- Dimensions
- Ø101.5 × 517 mm (including hook)
30 W
- Every model
- CCT 4000K standard (3000K / 4000K / 6500K optional)CRI ≥ 70Input voltage 120 Vac, 50/60 HzDimensions Ø101.5 × 517 mm (including hook)Efficacy 130 lm/W
| Model | Wattage | Lumens |
|---|---|---|
| SC10 | 10 W | 1,300 lm |
| SC20 | 20 W | 2,600 lm |
| SC30 | 30 W | 3,900 lm |
Electrical data and photometrics
Photometrics
- C0/180 · 245.9°
- C30/210 · 295.5°
- C60/240 · 298.0°
- C90/270 · 248.4°
Luminous-intensity distribution, 360°, in the C0, C30, C60 and C90 planes.
Ordering guide
Catalog number · left to right
| Position | Segment | Code | Meaning |
|---|---|---|---|
| 1 | Type | SC | hand lamp |
| 2 | Power | 10 · 20 · 30 | 10 W · 20 W · 30 W |
| 3 | Guard | 01 · 02 · 03 · 04 | four protective beams · full mesh · semi-mesh · three protective beams |
| 4 | CCT | 01 · 02 · 03 | 3000 K · 4000 K · 6500 K |
- Type and power are written together, as in SC30.
Documents and downloads
| Model | Spec sheet |
|---|---|
| All 3 models | Spec sheetPDF · 1.5 MB |
One spec sheet covers SC10, SC20, SC30. IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
From the published spec sheet
Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.
Published spec sheet · specification14 rows
| Property | Published spec sheet |
|---|---|
| Product size (mm) | Φ101.5mm × 517mm |
| Drawing callouts (mm) | 426 · 517 · Ø101.5 |
| Carton size (mm) | 570mm × 150mm × 195mm |
| Qty/ctn | 1 |
| Net weight | 3.0kg |
| Gross weight | 3.5kg |
| Cable | STW, 3×18AWG (Standard with 0.5m Cable) |
| Housing | ADC12 aluminum alloy, powder-coated, WF2 corrosion resistance. |
| Guard | Low-carbon steel. |
| Cover | Tempered glass, >90% transmittance, impact- and vibration-resistant. |
| Handle | Aluminum alloy interior with rubber outer grip. |
| Impact resistance | 7J |
| Average beam angle (50%) | 272.0 deg. |
| Complete model number | SC**-A-B-C-D |
