2 models · Emergency Light
Edge-Lit Exit Light
Edge-Lit Exit Light in two models, 3.5 W, for offices, schools, retail and parking garages.
2
Models
3.5 W
Power
Product views
Specification, features and options
- Fixture type
- Edge-lit exit light
- Housing / diffuser
- Aluminum housing + acrylic diffuser
- Legend
- Fully illuminated 6" or 8" characters
- Input rating
- 3.5 W, 50 mA
- Operating temperature
- 0°C to 40°C (32°F to 104°F)
- Charging time
- 24 hours
- Finish
- Silver
Models and ratings
- Every model
- Wattage 3.5 WInput voltage 120–347 VAC, 60 HzDischarge time 120 minutesListings cULus · UL 924 (damp locations)
| Model | Dimensions | Battery | Mounting |
|---|---|---|---|

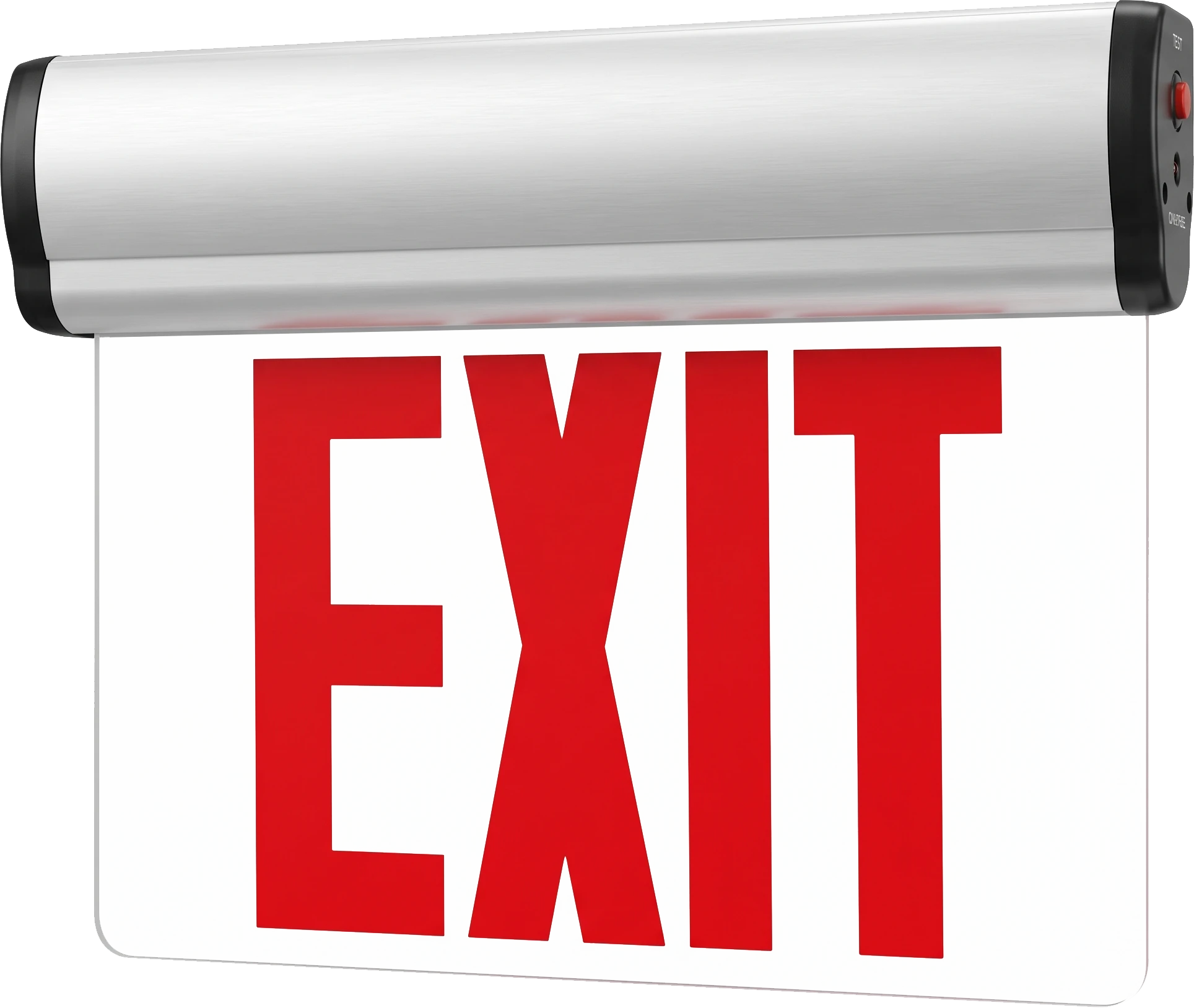

| CR-7108 | 310 × 257 × 110 mm | Maintenance-free 4.8 V NiCad | Wall, end and ceiling |

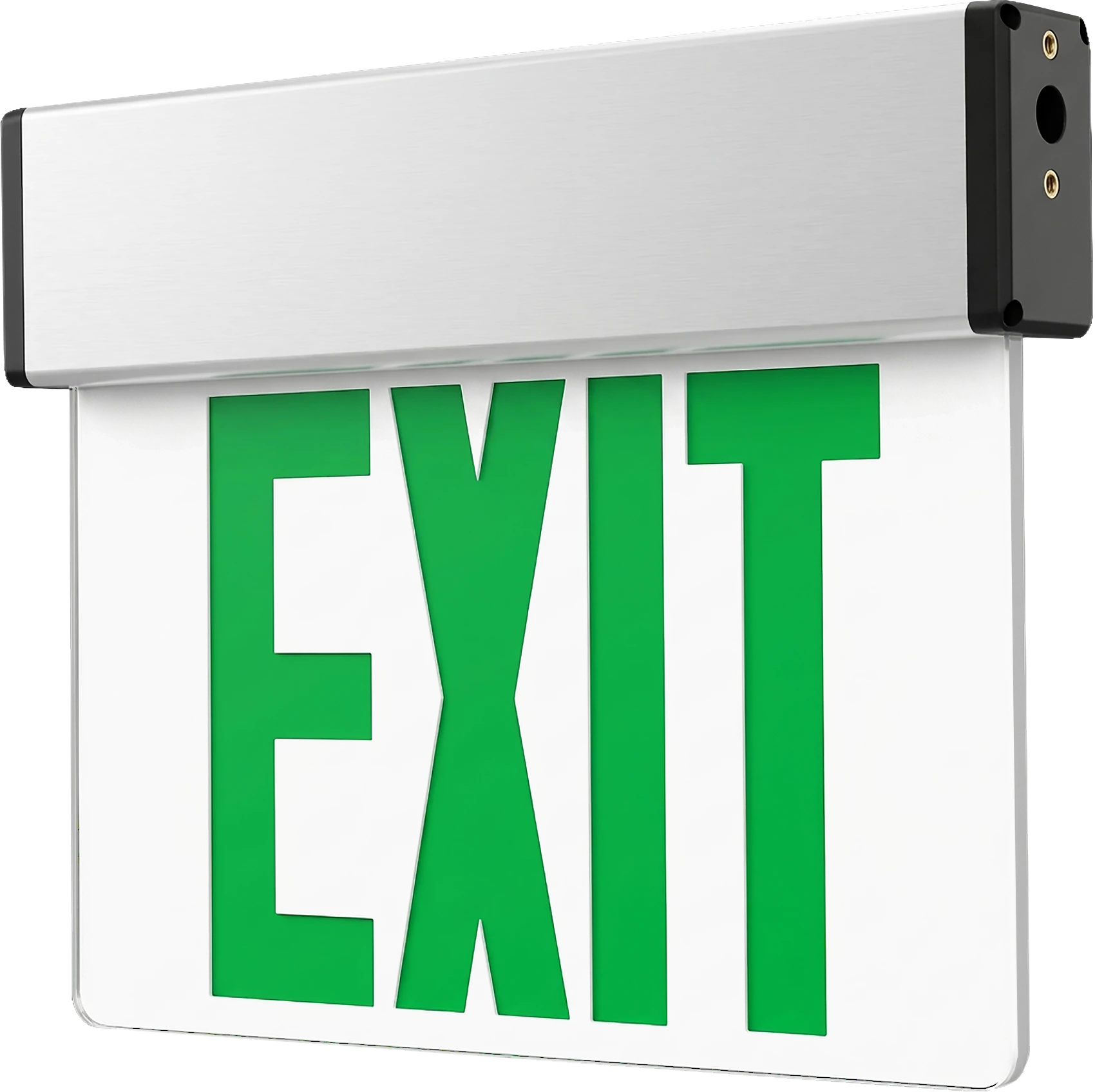

| CR-7109 | 305 × 245.9 × 40 mm | Maintenance-free 3.6 V NiCad | Back mount / top mount / end mount |
Documents and downloads
Spec sheets, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
