1 model · Emergency Light

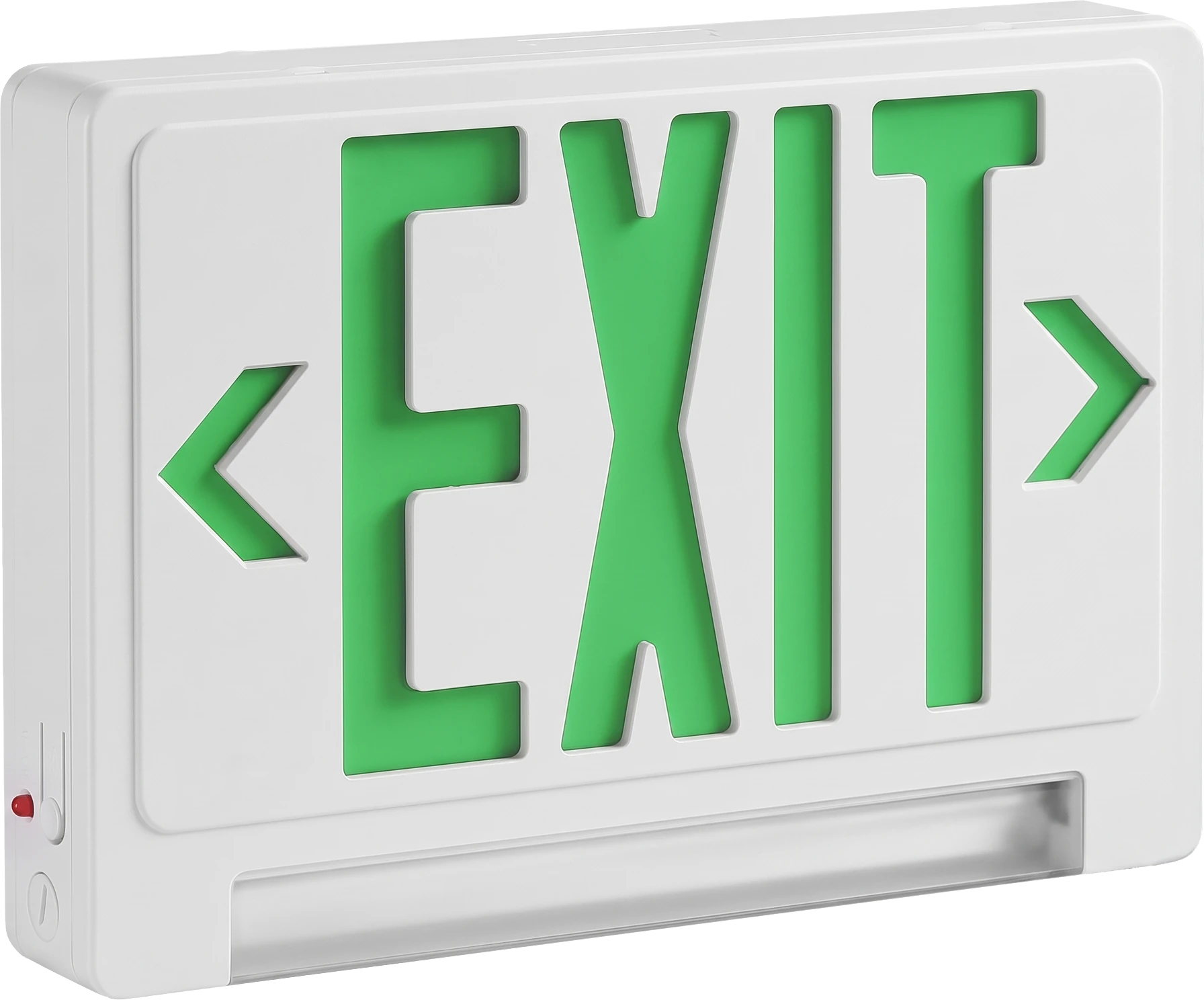

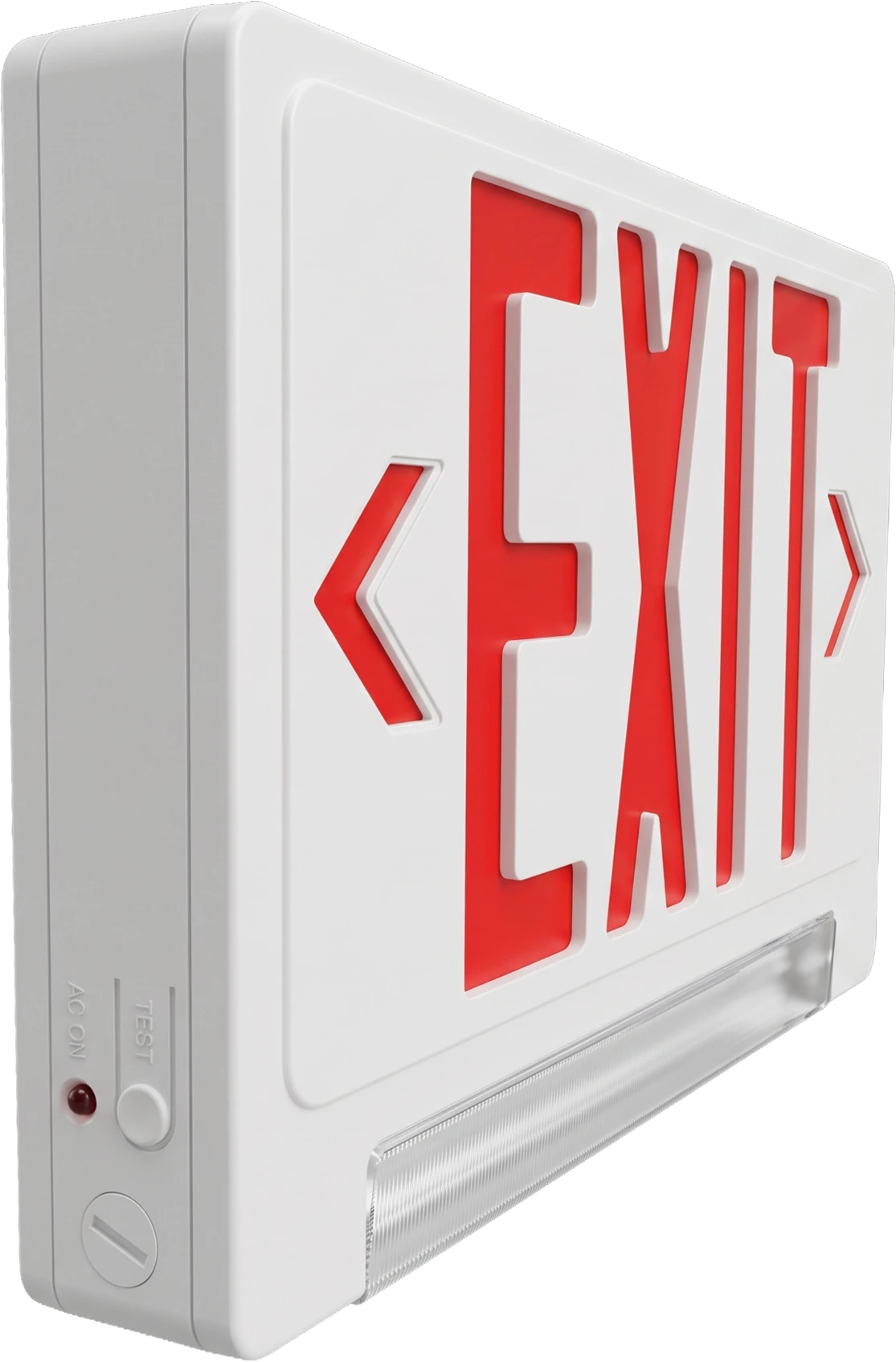

Combo Emergency Exit Light
Combo Emergency Exit Light in one model, 5 W, for offices, schools, retail and parking garages.
1
Model
5 W
Power
Product views
Specification, features and options
- Fixture type
- Combo emergency exit light
- Illumination
- Legend: 30 × 0.1 W SMD LED, 3 W total
- Housing
- Injection-molded thermoplastic ABS
- Legend
- Fully illuminated 6" characters
- Input rating
- 5.0 W, 50 mA
- Operating temperature
- 0°C to 40°C (32°F to 104°F)
- Charging time
- 24 hours
- Mounting
- Wall, end and ceiling
- Finish
- White, black
Models and ratings
- Model
- CR-7024
- Wattage
- 5.0 W
- Lumens
- CCT
- CRI
- Input voltage
- 120 / 277 VAC, 60 Hz
- Dimensions
- 320 × 218 × 47 mm
- Battery
- Maintenance-free 4.8 V NiCad
- Discharge time
- 90 minutes
- Listings
- cULus · UL 924 (damp locations)
