2 models · Utility Light

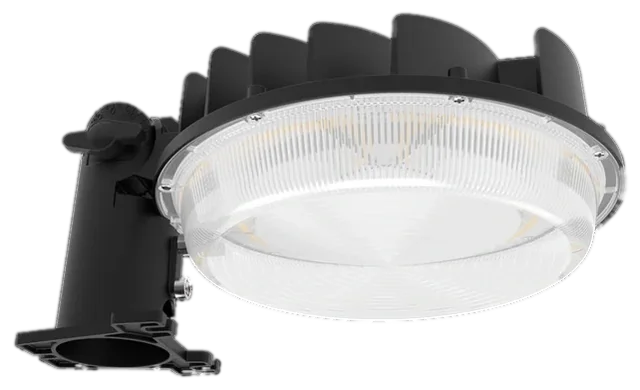

LED Barn Light
LED Barn Light in two models, 60-100 W and up to 12,000 lm, for agricultural buildings, service yards, rural perimeters and loading areas.
2
Models
60-100 W
Power
12,000 lm
Light output, up to
120 lm/W
Efficacy, up to
Specification, features and options
- Beam angle
- 120°
- Life span
- > 50,000 hrs
- Outdoor rating
- Wet location
- BUG rating
- B3 U3 G3
- THD
- < 20%
- Operating temperature
- -40°F to 113°F
- Storage temperature
- -40°F to 158°F
Models and ratings
Maximum lumens
BL02-100W-L
- Lumens
- 12,000 lm
- Efficacy
- 120 lm/W
- Dimensions
- L 11.75 × W 7.56 × H 3.46 in
100 W
BL02-100/80/60W-H-TCP
- Lumens
- 12,000 lm (max)
- Efficacy
- 120 lm/W
- Dimensions
- L 11.75 × W 7.56 × H 3.46 in
Settable 100 / 80 / 60 W selectable
- Every model
- CRI Ra > 70Input voltage AC 120–277 V / AC 120–347 VDimensions L 11.75 × W 7.56 × H 3.46 inEfficacy 120 lm/W
| Model | Wattage | Lumens | CCT |
|---|---|---|---|
| BL02-100W-L | 100 W | 12,000 lm | 5000K |
| BL02-100/80/60W-H-TCP | 100 / 80 / 60 W selectable | 12,000 lm (max) | 3500 / 4000 / 5000K selectable |
Dimensions and mounting
Dimensions as printed in the Allmax spec sheet.
Mounting
Wall
Drill and wire, lock the light onto the plate, then set the angle with the hand screw.
Pole
Fits onto the pole and is fixed with screws; set the angle with the hand screw.
Options and accessories
PC lens with sensor base
Takes the plug-in sensor
- Fits
- Both versions
Round PC lens
Without sensor base
- Fits
- Both versions
Plug-in sensor
PIR, occupancy, occupancy + Bluetooth or PIR + Bluetooth. Screws in by hand.
- Fits
- Lens with sensor base
- Order code
- A · B · C · D
Emergency driver
Can be fitted
- Fits
- Both versions
Ordering guide
Catalog number · left to right
| Position | Segment | Code | Meaning |
|---|---|---|---|
| 1 | Series | BL02 | LED barn light |
| 2 | Power | 100/80/60W | 100 W · 80 W · 60 W, selected with the power dip switch |
| 3 | Version | H | |
| 4 | CCT | TCP(XX) | 3500 K · 4000 K · 5000 K, selected with the CCT dip switch |
| 5 | Sensor | Y | A PIR sensor (infrared) · B MS sensor (occupancy) · C BRT sensor (occupancy + bluetooth) · D PHB sensor (infrared bluetooth) · blank no sensor |
Documents and downloads
| Model | Spec sheet |
|---|---|
| BL02-100/80/60W-H-TCP | Spec sheetPDF · 1.9 MB |
Spec sheets for other models, IES files and listing file numbers travel with the quotation. Ask our team: service@allmax.com.tw
For listing and origin documents, see project compliance documentation.
From the published spec sheet
Values as printed in the published spec sheet. The model table above keeps the catalogue values. Open any table to see it.
Drawing · 100 / 80 / 60 W4 rows
| Drawing callout | Published spec sheet |
|---|---|
| Drawing units | Millimetres [inches]. |
| 100 / 80 / 60 W | 298.5[11.75"] |
| 100 / 80 / 60 W | 88[3.46"] |
| 100 / 80 / 60 W | Ø7.56 in [Ø192 mm] |
BL02-100/80/60W-H-TCP · published spec sheet5 rows
| Property | Published spec sheet |
|---|---|
| Power factor | > 0.9 |
| LED | SMD 2835 |
| Lamp shell | Black |
| Lens light transmission | over 90% |
| Life span | ≥ 50,000 h |
BL02-100/80/60W · packing5 rows
| Property | Metric | Imperial |
|---|---|---|
| Inner box (L × W × H) | 276 × 200 × 88 mm | 10.87 × 7.87 × 3.46 in |
| Outer box (L × W × H) | 420 × 296 × 420 mm | 16.54 × 11.65 × 18.50 in |
| Qty / ctn | 10 pcs | 10 pcs |
| N.W. / ctn | 12.4 kg | 27.34 lb |
| G.W. / ctn | 15.1 kg | 33.29 lb |
